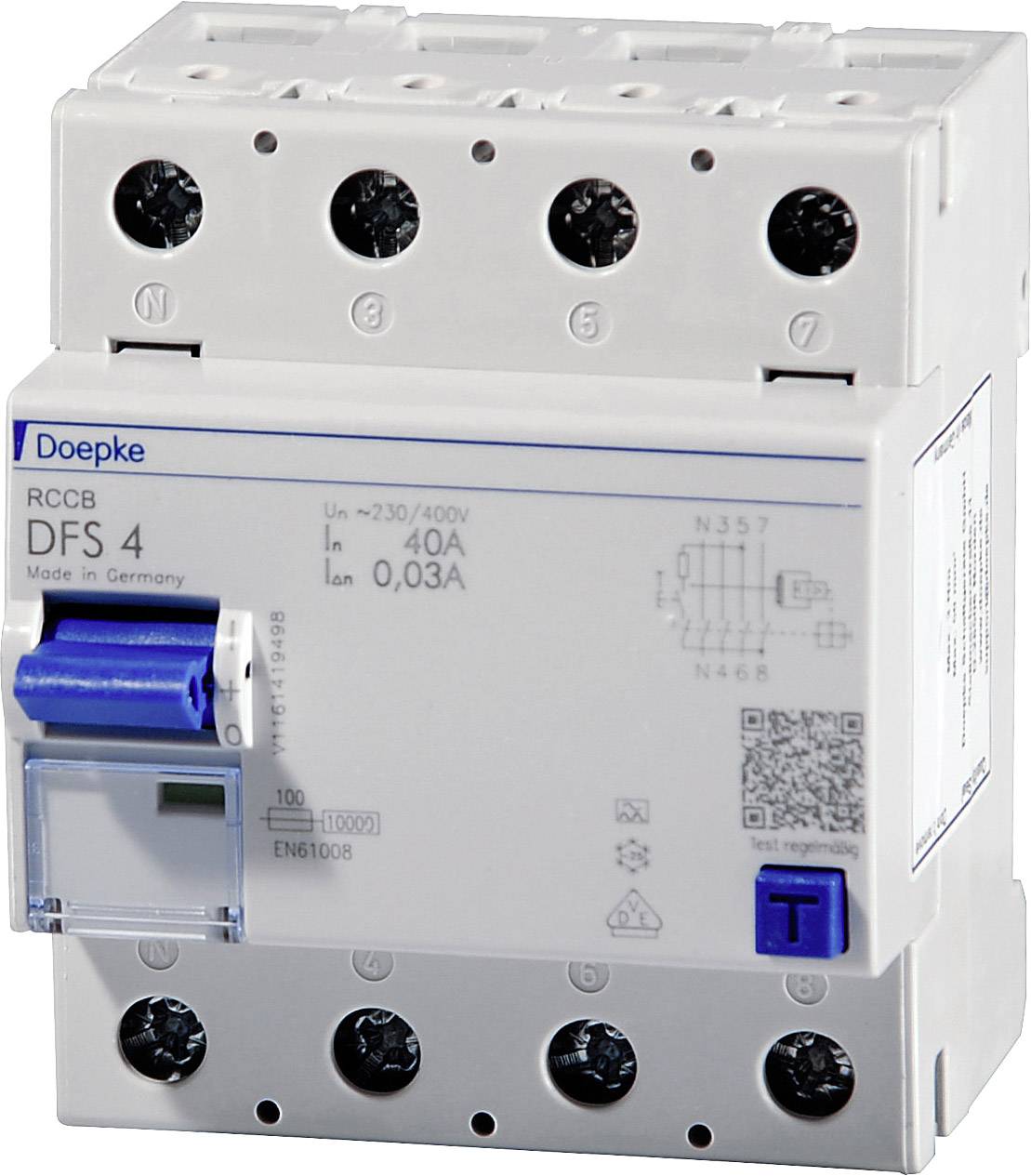

Doepke 09136901 DFS4 040-4/0,30-A 4polig 40/0,3A RCCB A 4-pin 40 A 0.3 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
40 A
Datasheet (PDF)
Highlights & Details
DOEPKE residual-current circuit breaker DFS 4 040/0.30 - A 4-pin 40/0, 3 A
- Quick mounting on DIN rail
- All mounting positions permitted
- Feed direction
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Dim
(L x W x H) 150 cm x 72 mm x 85 mm
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal voltage
230 V
400 V
- Width
72 mm
- Height
85 mm
- Length
150 cm
- Depth
75 mm
- Frequency
0.00005 MHz
- Weight
0.40
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2136345 Doepke 09136901 DFS4 040-4/0,30-A 4polig 40/0,3A RCCB A 4-pin 40 A 0.3 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 2136345 Doepke 09136901 DFS4 040-4/0,30-A 4polig 40/0,3A RCCB A 4-pin 40 A 0.3 A 230 V, 400 V
Description
Residual current circuit breaker (RCCB) Switch the power supply whenever dangerously high fault currents. You protect people, animals and plants. DFS 4 are two- or four-pole residual current protective switch for single-phase or three-phase systems. In the standard version, the compact devices four division units narrow. They are equipped with many different fault current types and versions with rated currents up to 125 A available. The large Double level terminals can also be large conductor cross-section. The triggered position of the multi-function knob simplifies troubleshooting. The free label software helps with the label. Switch of the type A are pulse and alternating current and sensitive. This function is independent of mains voltage. Devices are in the standard version for the monitoring of circuits with a rated voltage of 230V/400V and a rated frequency of 50 Hz. Features: Power and auxiliary voltage-independent activation;-sensitive for change - and immediately pour pulsating errors (type A) - small size for all rated currents; - high short-circuit strength; - double-sided double terminals for large conductor cross-section and busbar connection; - switching position display; - a viewing window for labels; multi-function knob with three positions: "on", "off", "tripped"; - even in the design of "HD" available-neutral position left, at no extra cost as a N right available. Installation type: quick mounting on rail fixing - any installation position feed-in direction applications: power supplies from living and purpose buildings as well as industrial systems with TN-S, TT and TN-C-S-networks. In IT networks can residual current protective switch of this series to the cut-out in the case of a second error.; - excluded is the use in TN-C networks and for the protection of plants in which electronic equipment smooth DC residual currents or currents with frequencies is not equal to 50 Hz can cause. Here is a comprehensive protection. For such applications, we recommend our Allstrom-sensitiven residual current circuit breakers (Type B or B+).
