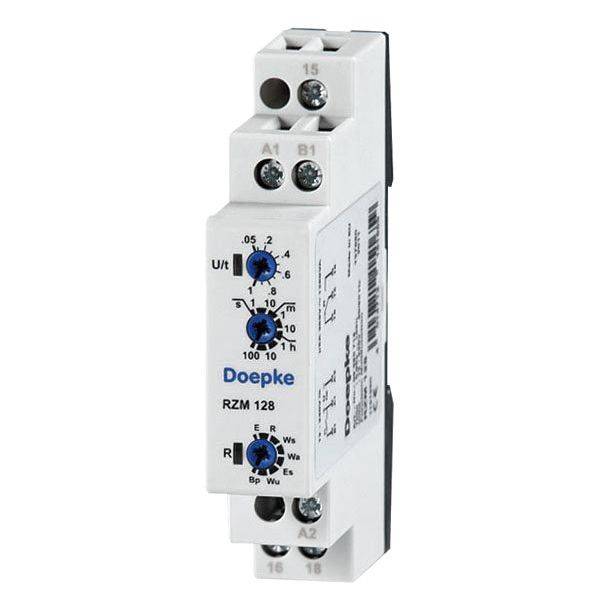

Doepke 09980715 TDR Multifunction 1 pc(s) Time range: 50 ms - 100 h 1 change-over

Time relays are used for the delayed switching on and off of electrical consumers. They are suitable for many tasks in the automation technology. The devices of this series offer many different time functions and a large selectable time range. 1 changeover contacts with a switching capacity of 2000 VA (8 A / 250 V); control inputs for max. Cable lengths of 10 m and min. Control impulse length 50/100 ms (DC/AC) LEDs for display of supply voltage/time out and position of output relay; Time functions: Delayed pick up (E), delayed drop off (R), delayed pick up with control contact (E), flashing pause start (BP), momentary pick up with control input (Wu), momentary pick up with control input (Ws) Time ranges: Adjustment ranges from 50 ms to 100 h; Screw terminal connections for large cross-sections also; compact design; Mounting type: rapid mounting on mounting rails, any mounting position; application areas: time-dependent control and clocking of electrical consumers, e.g. lighting and drives in private. Commercial and industrial buildings. Notes: The time functions must be switched in a voltage-free state.
