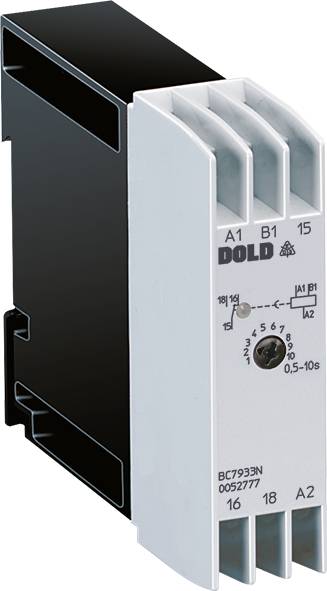

Dold 0052903 BC7933N.81 TDR Multifunction 24 V DC/AC 1 pc(s) Time range: 0.5 - 10 s 1 change-over
Product type
TDR
Type
Multifunction
Functions
Off-delay with auxiliary contact
Operating voltage
24 V DC/AC
Contact type
1 change-over
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration 1 changeover contact
- Variant: Delayed drop off, with control signal
- Installation width 22.5 mm.
- Housing design: Switching cabinet
- Device type: BC 7933N
- NOMINAL VOLTAGE AC/DC 24 V
- Time range 0.05 s – 10 h
- Time function(s): Delayed drop off with control signal
- Product type
TDR
- Type
BC7933N.81
- Type
Multifunction
- Functions
Off-delay with auxiliary contact
- Operating voltage
24 V DC/AC
- Contact type
1 change-over
- Time range (min.)
0.5 s
- Time range (max.)
10 s
- Width
22.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980041 Dold 0052903 BC7933N.81 TDR Multifunction 24 V DC/AC 1 pc(s) Time range: 0.5 - 10 s 1 change-over
User & Safety Instructions
User & Safety Instructions 2980041 Dold 0052903 BC7933N.81 TDR Multifunction 24 V DC/AC 1 pc(s) Time range: 0.5 - 10 s 1 change-over
Description
Time-dependent controls.
