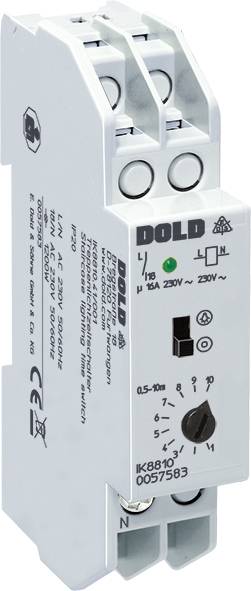

Dold 0057583 IK8810.41/001 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.5 - 10 min 1 maker
Product type
TDR
Type
Multifunction
Functions
Staircase multiway function
Operating voltage
230 V AC
Contact type
1 maker
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration: 1 closer, delayed
- Version: Cannot be reset
- Width 17.5 mm
- Type of device: IK 8810/001
- Nominal voltage AC 230 V
- Output contacts max. 1 NO
- Thermal current LTH: 16 A.
- Installation depth 58 mm
- Product type
TDR
- Type
IK8810.41/001
- Type
Multifunction
- Functions
Staircase multiway function
- Operating voltage
230 V AC
- Contact type
1 maker
- Switching current (max.)
16 A
- Time range (min.)
0.5 min
- Time range (max.)
10 min
- Width
17.5 mm
- Depth
58 mm
- Dim
(W x D) 17.5 mm x 58 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980051 Dold 0057583 IK8810.41/001 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.5 - 10 min 1 maker
User & Safety Instructions
User & Safety Instructions 2980051 Dold 0057583 IK8810.41/001 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.5 - 10 min 1 maker
Description
Staircase lighting time switching
Off-delay time relay
This text is machine translated.
Off-delay time relay
This text is machine translated.
