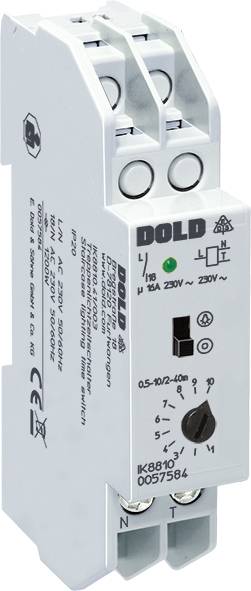

Dold 0057584 IK8810.41/003 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.5 - 40 min 1 maker
Product type
TDR
Type
Multifunction
Functions
Staircase multiway function with premature time reset option
Operating voltage
230 V AC
Contact type
1 maker
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration: 1 closer, delayed
- Version: Resettable. With warning function shortly before the time lapse
- Width 17.5 mm
- Type of device: IK 8810/003
- Nominal voltage AC 230 V
- Output contacts max. 1 NO
- Thermal current LTH: 16 A.
- Installation depth 58 mm
- Switchable: Yes
- Runtime extension of the long press of a button: Yes
- Short-term warning function: Yes
- Product type
TDR
- Type
IK8810.41/003
- Type
Multifunction
- Functions
Staircase multiway function with premature time reset option
- Operating voltage
230 V AC
- Contact type
1 maker
- Switching current (max.)
16 A
- Time range (min.)
0.5 min
- Time range (max.)
40 min
- Width
17.5 mm
- Depth
58 mm
- Dim
(W x D) 17.5 mm x 58 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980053 Dold 0057584 IK8810.41/003 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.5 - 40 min 1 maker
User & Safety Instructions
User & Safety Instructions 2980053 Dold 0057584 IK8810.41/003 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.5 - 40 min 1 maker
Description
Time-delayed switch-off of lighting
