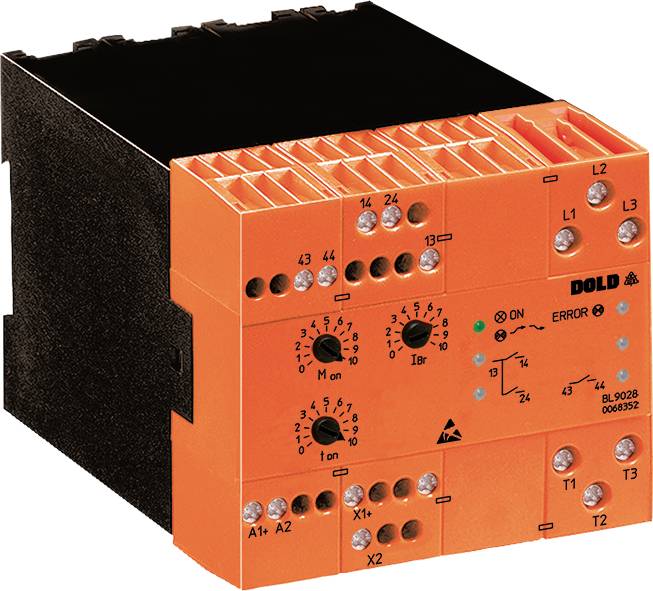

Dold BL9028.03/010 0068471 Soft starter with braking function Motor power at 400 V 15 kW 480 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration 3 x 1 closer
- Auxiliary voltage DC 24 V
- Variant: Motor protection with bi-metal switch or PTC-thermo sensor
- Device type: BL 9028
- Load voltage up to 3AC 480 V
- Mains/motor voltage 3AC 200 - 480 V
- Engine nominal power: 11 kW
- Installation widths 112.5 mm
- For 3 AC motors, 400 V to 15 kW
- Auxiliary voltage required: Yes
- Signal output: Yes
- Additional functions: Temperature monitoring, mains monitoring
- Motor voltage
3AC 200 - 480 V
- Product type
Soft starter with braking function
- Motor power at 400 V
15 kW
- Nominal voltage
480 V AC
- Operating phases
3
- Manufacturer part #
0068471
- Type
BL9028.03/010
- Motor power at 230V / 400V
11 kW
- Width
112.5 mm
- Contact type
3 makers
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980069 Dold BL9028.03/010 0068471 Soft starter with braking function Motor power at 400 V 15 kW 480 V AC
User & Safety Instructions
User & Safety Instructions 2980069 Dold BL9028.03/010 0068471 Soft starter with braking function Motor power at 400 V 15 kW 480 V AC
Description
Soft starting devices with brake function are robust electronic control devices for the soft start-up and the braking of three-phase asynchronous machines. Various device protection functions are implemented via the integrated current measurement if the motor is blocked or if the motor starts to run slowly. The semiconductors are bridged by a relay after soft start, which ensures low power loss and heating of the device during operation. The device parameters are simply set via poti. Various LEDs indicate the status of the device.
