Dold IK8701.11 AC50Hz 230V Coupler Nominal voltage: 230 V AC Switching current (max.): 16 A 1 change-over 1 pc(s)
Product type
Coupler
Contact type
1 change-over
Nominal voltage
230 V AC
Switching voltage (max.)
230 V AC
Switching current (max.)
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
Dold IK8701.11 AC50Hz 230V Coupler Nominal voltage: 230 V AC Switching current (max.): 16 A 1 change-over 1 pc(s)
- For switching lamp loadsInput coupling relay, e.g. for controlling PLCOutput coupling relay, e.g. for PLC-controlled loadsAccording to EN 60947-5-1Button for manual operation of the contactsSwitch position indicatorHigh thermal current Ith17.5 or 35 or 52.5 mm width
Technical specifications
- Conductor connection: 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with sleeve or 2 x 1 mm² stranded wire with sleeve
- Conductor mounting: Flat terminals with self-lifting
- Tightening torque: 0.8 Nm
- Quick mounting: DIN rail
- Product type
Coupler
- Type
IK8701.11 AC50Hz 230V
- Connection
Screw terminal
- Factory colour
White
- Response time
30 ms
- Fall time
30 ms
- Contact type
1 change-over
- Nominal voltage
230 V AC
- Switching voltage (max.)
230 V AC
- Switching current (max.)
16 A
- Max. switching capacity
1200 W
- Electrical lifespan
With resistive load 230 V AC: 6 A 150 x 104 switching cycles
10 A 75 x 104 operations
16 A 12 x 104 switching cycles
- Durability
10 x 106 switching operations
- Features
+ test button
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Length
89 mm
- Width
17.5 mm
- Height
58 mm
- Dim
(L x W x H) 89 x 17.5 x 58 mm
- Content
1 pc(s)
- Weight
100 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2359217 Dold IK8701.11 AC50Hz 230V Coupler Nominal voltage: 230 V AC Switching current (max.): 16 A 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2359217 Dold IK8701.11 AC50Hz 230V Coupler Nominal voltage: 230 V AC Switching current (max.): 16 A 1 change-over 1 pc(s)

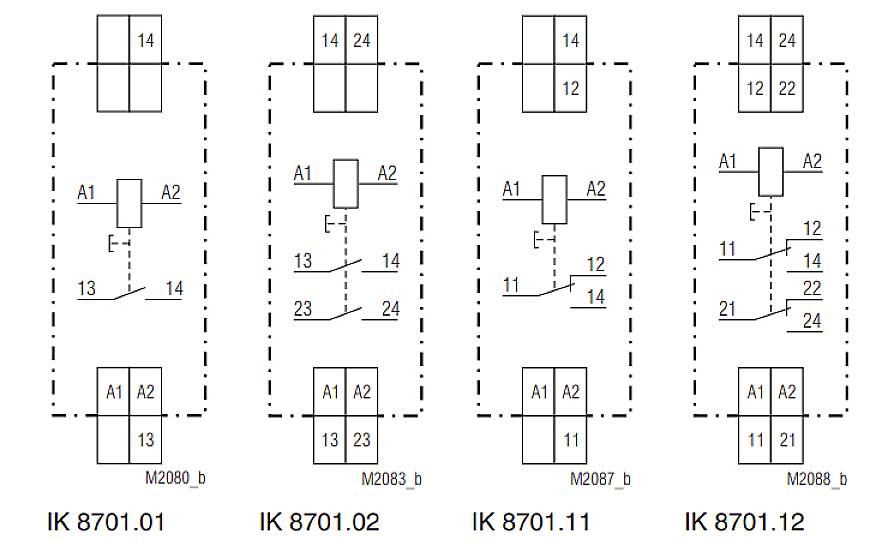

Description
The contacts are actuated by a tappet using a folding anchor. After the excitation voltage has dropped, a spring returns the armature connected to the tappet to its rest position. The contacts can also
Can be operated manually via a button on the front. This button also serves to display the switch position at the same time. The contacts are closed when the button is pressed. When de-energized, the red closes
Button flush with the front edge.
· For switching lamp loads
· Input coupling relay, e.g. for controlling PLC
· Output coupling relay, e.g. for PLC-controlled loads
· According to EN 60947-5-1
· Button for manual operation of the contacts
· Switch position indicator
· High thermal current Ith
· 17.5 or 35 or 52.5 mm width
This text is machine translated.
Can be operated manually via a button on the front. This button also serves to display the switch position at the same time. The contacts are closed when the button is pressed. When de-energized, the red closes
Button flush with the front edge.
· For switching lamp loads
· Input coupling relay, e.g. for controlling PLC
· Output coupling relay, e.g. for PLC-controlled loads
· According to EN 60947-5-1
· Button for manual operation of the contacts
· Switch position indicator
· High thermal current Ith
· 17.5 or 35 or 52.5 mm width
This text is machine translated.
