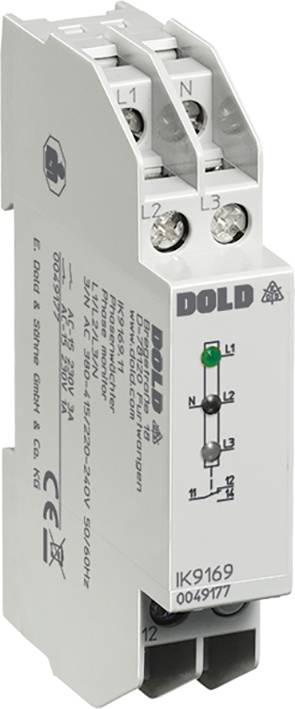

Dold IK9169.11 3AC380-415/220-240V 0049177 Phase monitor No. of relay outputs: 1
Product type
Phase monitor
No. of relay outputs
1
Operating voltage
230 V AC
Type
IK9169.11 3AC380-415/220-240V
Probe inputs
Phasen
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration: 1 changeover contact
- Thermal current Ith: 4 A (see continuous current limit curve)
- Switching capacity according to AC 15 NO contact: 3 A / AC 230 V IEC/EN 60947-5-1
- OPENER: 1 A / AC 230 V IEC/EN 60947-5-1
- Electrical life: According to AC 15 at 1 A, AC 230 V: Type. 300 000 operations
- Mechanical life: ≥ 30 x 106 operations
- Operating temperature range: - 20 ... + 60°C.
- Housing: Thermoplastic with V0 behavior according to UL Subject 94
- Type
IK9169.11 3AC380-415/220-240V
- Product type
Phase monitor
- No. of relay outputs
1
- Probe inputs
Phasen
- Operating voltage
230 V AC
- Dim
(L x W x H) 90 x 17.5 x 59 mm
- Mounting depth
90 mm
- Weight
60 g
- Width
17.5 mm
- Height
59 mm
- Length
90 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2359247 Dold IK9169.11 3AC380-415/220-240V 0049177 Phase monitor No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2359247 Dold IK9169.11 3AC380-415/220-240V 0049177 Phase monitor No. of relay outputs: 1
Description
Monitoring of three-phase power supply systems for phase failure.
· according to IEC/EN 60 255-1
· for detecting phase failure in three-phase networks
· can also be connected in single-phase
· Closed-circuit principle (output relay not activated in the event of a fault)
· Any phase sequence
· LED display for each phase
· Output 1 changeover contact
· 17.5 mm width
This text is machine translated.
· according to IEC/EN 60 255-1
· for detecting phase failure in three-phase networks
· can also be connected in single-phase
· Closed-circuit principle (output relay not activated in the event of a fault)
· Any phase sequence
· LED display for each phase
· Output 1 changeover contact
· 17.5 mm width
This text is machine translated.
