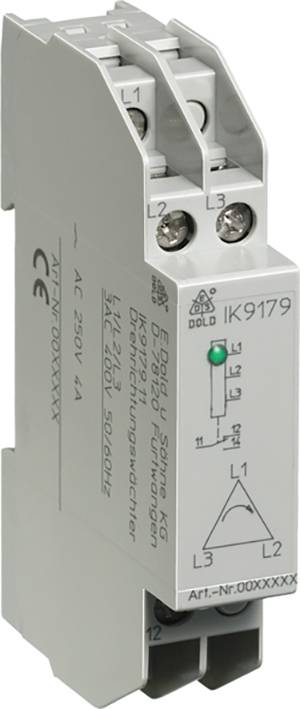

Image similar
Dold IK9179.11 3AC50/60Hz 400V 0049182 Phase sequence monitor No. of relay outputs: 1
Product type
Phase sequence monitor
No. of relay outputs
1
Operating voltage
400 V AC
Type
IK9179.11 3AC50/60Hz 400V
Dim
(W x H) 17.5 mm x 90 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- NOMINAL VOLTAGE UN: 3 AC 400 V.
- Voltage range: 0.8 ... 1.1 UN
- Nominal frequency 50/60 Hz
- Frequency range: 45 ... 65 Hz
- Contact configuration: 1 changeover contact
- Thermal current Ith: 4 A.
- Switching capacity according to AC 15 NO contact: 3 A / AC 230 V IEC/EN 60947-5-1
- OPENER: 1 A / AC 230 V IEC/EN 60947-5-1
- Electrical life IEC/EN 60947-5-1 according to AC 15 at 1 A, AC 230 V: Type. 300 000 operations
- Short-circuit resistance max. safety fuse 4 A GG / GL IEC/EN 60947-5-1
- Mechanical life: ≥ 30 x 106 operations
- Rated operation: Continuous operation
- Operating temperature range: - 20 ... + 60°C.
- Storage: - 20 ... + 60°C.
- Conductor connection: Screw terminals
- Type
IK9179.11 3AC50/60Hz 400V
- Product type
Phase sequence monitor
- No. of relay outputs
1
- Operating voltage
400 V AC
- Dim
(W x H) 17.5 mm x 90 mm
- Mounting depth
61 mm
- Width
17.5 mm
- Height
90 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2359239 Dold IK9179.11 3AC50/60Hz 400V 0049182 Phase sequence monitor No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2359239 Dold IK9179.11 3AC50/60Hz 400V 0049182 Phase sequence monitor No. of relay outputs: 1
Description
· Monitoring of three-phase systems for direction of rotation (clockwise rotating field).
· Controlled switching on of consumers with preferred direction of rotation.
· according to IEC/EN 60 255-1
· for detecting the direction of rotation in three-phase networks (clockwise rotating field)
· without auxiliary voltage
· Closed-circuit principle (output relay not activated in the event of a fault)
· LED display for direction of rotation
· Output 1 changeover contact
· Devices available in 3 designs:
17.5 mm width
