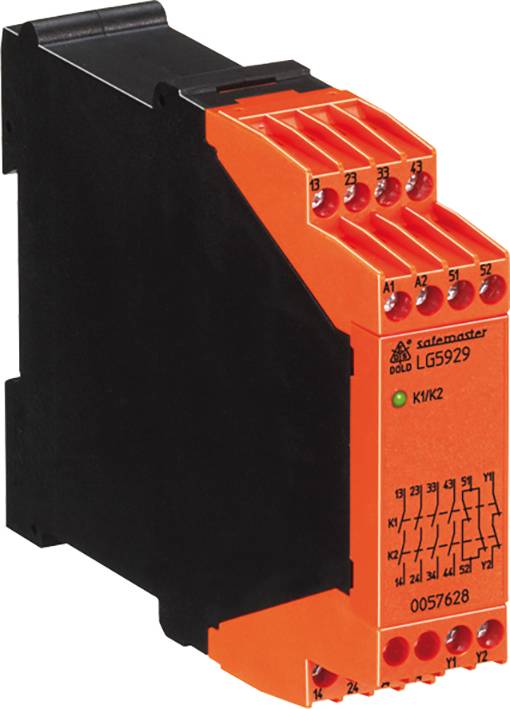

Name: Dold LG5929.60/61 AC/DC24V 0064092 Expansion No. of relay outputs: 6
Brand: Dold
SKU: 2359246

Highlights & Details

Secure contact extension

Technical specifications

Contact configuration: 5 NO contacts, 1 NC contact for feedback circuit
Response time: Max. 20 ms
Fall-back time: Max. 35 ms
Contact type: Relay, positively driven
Rated output voltage 250 V AC
Thermal current Ith: Max. 8 A, see summation current limit curve
Switching capacity according to AC 15 NO contact: 3 A / AC 230 V IEC/EN 60947-5-1
NC CONTACT 2 A / AC 230 V IEC/EN 60947-5-1
ACCORDING TO DC 13 CLOSER: 2 A / DC 24 V IEC/EN 60947-5-1
NC CONTACT 2 A / DC 24 V IEC/EN 60947-5-1
In accordance with DC 13 closer: 4 A / 24 V at 0.1 Hz IEC/EN 60947-5-1
NC: 4 A / 24 V at 0.1 Hz IEC/EN 60947-5-1
Electrical life according to AC 15 at 2 A, AC 230 V: 105 operations IEC/EN 60947-5-1
Permissible switching frequency: 1200 cycles/h
Short-circuit resistance max. safety fuse 10 A GG / GL IEC/EN 60947-5-1
Max. Circuit breaker: B 6 A.
Mechanical life 20 x 106 operations
Operating temperature range: - 25 ... 55 °C
Storage : - 25 ... 85 °C

Type: LG5929.60/61 AC/DC24V

Product type: Expansion

No. of relay outputs: 6

Operating voltage: 24 V AC
24 V DC

Dim: (W x H) 22.5 mm x 90 mm

Mounting depth: 121 mm

Weight: 205 g

Width: 22.5 mm

Height: 90 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2359246 Dold LG5929.60/61 AC/DC24V 0064092 Expansion No. of relay outputs: 6

User & Safety Instructions

User & Safety Instructions 2359246 Dold LG5929.60/61 AC/DC24V 0064092 Expansion No. of relay outputs: 6

Description

If more safety circuits are required than a safety module provides, the expansion module LG 5929 is used. It is used for the safe and reliable contact reproduction and contact amplification of safety modules with monitoring of the feedback circuit. The expansion module has positively driven contacts and is available with different contact combinations.

· corresponds to in conjunction with a suitable switching device
Performance level (PL) e and category 4 according to EN ISO 13849-1
SIL CLAIM LIMIT (SIL CL) 3 · according to IEC/EN 62061
Safety Integrity Level (SIL) 3 · according to IEC/EN 61508
· according to EN 50156-1 for combustion plants
· Activation is also possible with safety-related semiconductor outputs (BWS, emergency stop, etc.)
· Redundant and positively driven contacts
· Output: Max. 5 NO contacts or 4 NO contacts / 1 NC contact, 1 NC contact for feedback circuit
· for 1- or 2-channel circuits
· Operating status display
· Conductor connection: Also 2 x 1.5 mm2 stranded wire with sleeve and plastic collar, or 2 x 2.5 mm2 solid
· 22.5 mm width

This text is machine translated.
