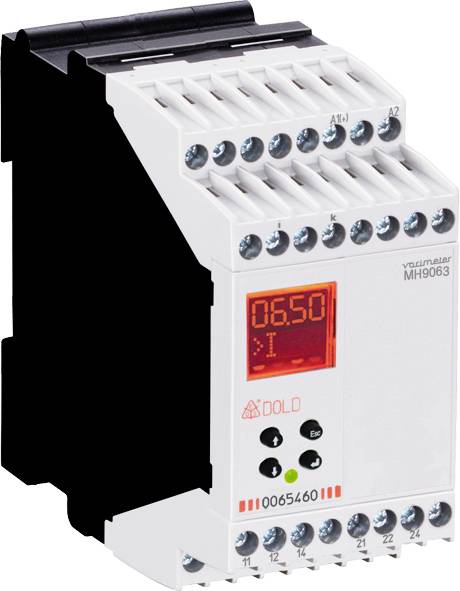

Dold MH9063.12 AC/DC0,4-10A UH=AC/DC110-400V 0065460 Surge protection No. of relay outputs: 2
Product type
Surge protection
No. of relay outputs
2
Operating voltage
110 V
400 V
Type
MH9063.12 AC/DC0,4-10A UH=AC/DC110-400V
Probe inputs
AC/DC Strommessung (1-phasig)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration: 2 x 1 changeover contacts
- Thermal current I th: 2 x 4 A.
- Measuring range: AC/DC 0.4 ... 10 mA
- Operating temperature range: - 20... + 60°C (in the range 0 ... - 20°C, possibly limited function of the LCD display)
- Terminal type: Screw terminal
- Conductor connections: 1 x 4 mm² solid or 1 x 2.5 mm² stranded wire with sleeve and plastic collar or 2 x 1.5 mm² stranded wire with sleeve and plastic collar or
- 2 x 2.5 mm² solid
- Protection type of housing IP40
- Protection class terminals: IP20
- Housing: Thermoplastic with V0 behavior according to UL Subject 94
- Type
MH9063.12 AC/DC0,4-10A UH=AC/DC110-400V
- Product type
Surge protection
- No. of relay outputs
2
- Probe inputs
AC/DC Strommessung (1-phasig)
- Operating voltage
110 V
400 V
- Dim
(L x W x H) 99 x 45 x 90 mm
- Weight
250 g
- Width
45 mm
- Height
90 mm
- Length
99 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2359195 Dold MH9063.12 AC/DC0,4-10A UH=AC/DC110-400V 0065460 Surge protection No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2359195 Dold MH9063.12 AC/DC0,4-10A UH=AC/DC110-400V 0065460 Surge protection No. of relay outputs: 2
Description
· According to IEC/EN 60255-1
· AC/DC current measurement (1-phase)
· On-delay, on-delay
· Error memory
· LCD display for the current measured values
· Relay output
2 X changeover contacts
· 45.0 mm width
