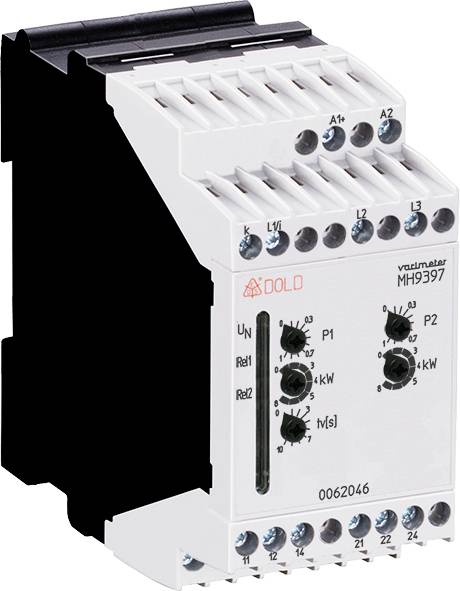

Dold MH9397.12/010 0062046 Load monitor No. of relay outputs: 2
Product type
Load monitor
No. of relay outputs
2
Operating voltage
230 V AC
Type
MH9397.12/010
Probe inputs
Messspannung: 3AC 24 - 400 V Messstrom: AC 12 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration 2 x 1 changer
- Auxiliary voltage AC 230 V
- Version: Bias current principle
- Installation width 45 mm.
- 1 / 3-phase 3
- Response delay 0 - 10 s
- Housing design: Switching cabinet
- MH 9397 device type
- Measurement voltage 3AC 24 - 400 V
- Measuring current AC 12 A
- Max. Measuring range: 12 A (8 kW)
- Type
MH9397.12/010
- Product type
Load monitor
- No. of relay outputs
2
- Probe inputs
Messspannung: 3AC 24 - 400 V Messstrom: AC 12 A
- Operating voltage
230 V AC
- Width
45 mm
- Contact type
2 change-overs
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980078 Dold MH9397.12/010 0062046 Load monitor No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2980078 Dold MH9397.12/010 0062046 Load monitor No. of relay outputs: 2
Description
The load monitor MK 9397N and MH 9397 of the VARIMETER family reliably monitor the load of motors as well as the functionality of 3-phase electrical consumers.
The corresponding output relay triggers when the threshold values are exceeded or undercut by the rotary switch. For suppression of short-term load fluctuations, a delay time TV can be set from 0 to 10. LEDs indicate the switching state of the corresponding output relay.
Benefits:
Preventive maintenance
For higher productivity
Faster error localization
precise and reliable
Surge detection, with optional pre-warning
Can also be used for low load detection
Simple adjustment of limit values and error diagnosis on the device
cost-effective and space-saving
This text is machine translated.
The corresponding output relay triggers when the threshold values are exceeded or undercut by the rotary switch. For suppression of short-term load fluctuations, a delay time TV can be set from 0 to 10. LEDs indicate the switching state of the corresponding output relay.
