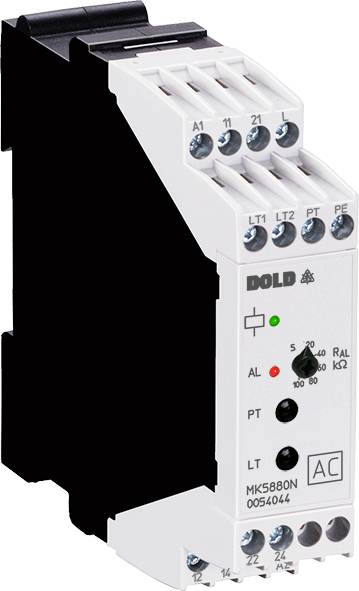

Dold MK5880N.12 0056562 Isolation monitor No. of relay outputs: 2
Product type
Isolation monitor
No. of relay outputs
2
Operating voltage
24 V DC
Type
MK5880N.12
Width
22.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration 2 changeover contact
- Auxiliary voltage DC 24 V
- Option 2 output relay (changer) for alarm
- Installation width 22.5 mm.
- Housing design: Switching cabinet
- Device type MK 5880N
- Type of terminal: Fixed screw terminal
- Alarm value of 5 - 100 kOhm
- IMD type AC
- Nominal voltage IT-System AC 0 - 500 V
- Display for ground fault: Yes
- Response value type: Adjustable
- Pre-warning value: None
- Type
MK5880N.12
- Product type
Isolation monitor
- No. of relay outputs
2
- Operating voltage
24 V DC
- Width
22.5 mm
- Contact type
2 change-overs
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980060 Dold MK5880N.12 0056562 Isolation monitor No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2980060 Dold MK5880N.12 0056562 Isolation monitor No. of relay outputs: 2
Description
The insulation monitors MK 5880N and MH 5880 of the VARIMETER IMD family are a standard compliant solution for insulation monitoring of pure phase and AC voltage IT systems. The response values are set easily and user-friendly via rotary switches on the front of the device. The MH 5880 has additional a galvanically isolated analogue output and a 11-stage LED bar display for displaying the current insulation value.
