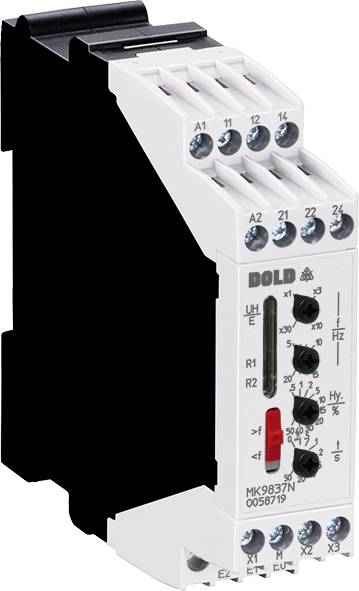

Dold MK9837N.12/050 0066317 Frequency relay No. of relay outputs: 2
Product type
Frequency relay
No. of relay outputs
2
Operating voltage
24 V DC
Type
MK9837N.12/050
Probe inputs
Messeingang für Frequenzumrichter
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration 2 changeover contact
- Auxiliary voltage DC 24 V
- Variant: Monitors AC voltages for over or underfrequency. With measuring input for frequency converter
- Installation width 22.5 mm.
- 1 / 3-phase 1
- Housing design: Switching cabinet
- Device type MK 9837N
- Measurement range max. 600 Hz
- Response value 5 - 600 Hz
- Auxiliary voltage required: Yes
- Standard measurement range 1.5 - 600 Hz
- Type
MK9837N.12/050
- Product type
Frequency relay
- No. of relay outputs
2
- Probe inputs
Messeingang für Frequenzumrichter
- Operating voltage
24 V DC
- Width
22.5 mm
- Contact type
2 change-overs
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980063 Dold MK9837N.12/050 0066317 Frequency relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2980063 Dold MK9837N.12/050 0066317 Frequency relay No. of relay outputs: 2
Description
The MK 9837N or. Frequency relay MH 9837 are used for the frequency monitoring of alternating voltages. They are used to monitor the output frequency of frequency converters (/050) or to monitor the rotor frequency of loop ring motors. Other areas of application are the monitoring of drives in crane systems as well as the frequency monitoring of the supply voltage in rail vehicles.
Benefits:
Can be used everywhere
Easy to Use
