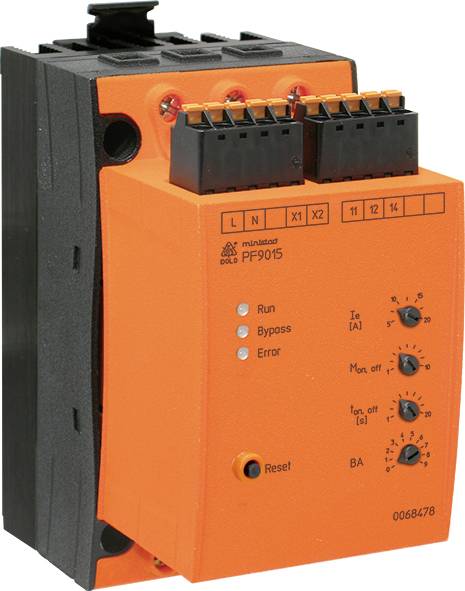

Dold PF9015.11 3AC200-480V HU=AC230V 5-20A 0068478 Soft starter
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
- For starting current limitation and jerk-free start-up of induction motors
- Only one device 67.5 mm wide for soft start-up, motor protection, phase sequence, undervoltage and overvoltage monitoring
- Smooth start-up and minimized starting current
- Increases the service life of AC motors and mechanical drive components
- For motor currents up to 2 A (up to 4 A on request)
- Soft start / soft stop time 1 ... <2 s
- Energy saving by bridging the power semiconductors after soft start-up
- Symmetrical starting current
Technical specifications
- Auxiliary voltage 230 V AC ± 10%
- Surge protection: Varistor AC 275 V
- Start-up / ramp-down time: 1 ... 20 sec.
- Starting/stopping torque: 20 ... 70% of rated motor torque
- Kickstart voltage: Full modulation of the thyristors
- Kickstart time: 100 ms, 200 ms, 400 ms
- Internal consumption 4 VA
- Control input Run X1(+), X2
- Control voltage: AC/DC 20 ... 300 V
- Control input current: 0.2 mA ... 3.1 mA
- Switch-on delay 60 ms
- Switch-off delay: 320 ms
- Signal output ready 11, 12, 14
- Contact configuration: 1 changeover contact
- Switching rating
- According to AC 15
- NORMALLY OPEN CONTACT 3 A / AC 230 V IEC/EN 60 947-5-1
- NC CONTACT 1 A / AC 230 V IEC/EN 60 947-5-1
- Electrical life
- According to AC 15 at 3 A, AC 230 V: 2 x 105 switching cycles
- Permissible switching frequency: Max. 1 800 operations/h
- Short-circuit resistance
- Max. Fuse 4 A GG / GL IEC/EN 60 947-5-1
- Mechanical life: ≥ 108 operations
- Motor voltage
3AC 200 - 480 V
- Product type
Soft starter
- Supply current
5 A
- Operating voltage
3 AC 200 ... 480 V
- Operating phases
3
- Manufacturer part #
0068478
- Type
PF9015.11 3AC200-480V HU=AC230V 5-20A
- Start-up time required to reach 60 % luminous flux (in sec)
1 ... 20 s
- Slow-down time
1 ... 20 s
- Dim
(L x W x H) 67.5 x 22.5 x 105 mm
- Connection
Screw terminal
Spring-loaded terminal
- Width
22.5 mm
- Height
105 mm
- Length
67.5 mm
- Depth
120.3 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2359190 Dold PF9015.11 3AC200-480V HU=AC230V 5-20A 0068478 Soft starter
User & Safety Instructions
User & Safety Instructions 2359190 Dold PF9015.11 3AC200-480V HU=AC230V 5-20A 0068478 Soft starter
Description
The PF 9015 from the MINISTART family is a robust electronic control unit for the smooth running on and out of three-phase / asynchronous motors with integrated monitoring functions. After the start-up, the power semiconductors are bridged by means of relays in order to minimize the power loss in the device.
· According to IEC/EN 60 947-4-2
· Suitable for IE3 motors
· 3-phase controlled with integrated bypass relay
· Phase sequence, undervoltage and overvoltage monitoring
· Blocking protection in bypass mode
· Integrated motor protection according to class 10 · According to IEC/EN 60947-4-2
· Starting current limitation
· Thyristor monitoring
· Detection of missing load
· Automatic frequency detection of the load voltage
· Temperature monitoring of power semiconductors
· Kickstart function
· Installation width 67.5 mm.
This text is machine translated.
· According to IEC/EN 60 947-4-2
· Suitable for IE3 motors
· 3-phase controlled with integrated bypass relay
· Phase sequence, undervoltage and overvoltage monitoring
· Blocking protection in bypass mode
· Integrated motor protection according to class 10 · According to IEC/EN 60947-4-2
· Starting current limitation
· Thyristor monitoring
· Detection of missing load
· Automatic frequency detection of the load voltage
· Temperature monitoring of power semiconductors
· Kickstart function
· Installation width 67.5 mm.
This text is machine translated.
