Dold RN5883.12/61 0066988 Differential current monitor No. of relay outputs: 2
Product type
Differential current monitor
No. of relay outputs
2
Operating voltage
24 V DC/AC
80 V DC/AC
Type
RN5883.12/61
Probe inputs
über einen externen Stromwandler
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- 1 CO contact for pre-warning, 1 CO contact for alarm
- AUXILIARY VOLTAGE AC/DC 24 - 80 V
- Measuring range 10 - 3000 mA
- Version: For current transformers ND5015/024, ND5015/035. Without analog output
- Installation width 52.5 mm
- Housing design: Installation distributor
- RN 5883 device type
- Classification: Type B (AC, DC smooth and pulsating)
- Approval UL.
- Time delay 0 - 10 s.
- Adjustable measurement range 0.01 - 3 A.
- Voltage type AC/DC
- Wire failure detection: Yes
- Delete key: Yes
- Test button: Yes
- Relay contact / output: Yes
- Type
RN5883.12/61
- Product type
Differential current monitor
- No. of relay outputs
2
- Probe inputs
über einen externen Stromwandler
- Operating voltage
24 V DC/AC
80 V DC/AC
- Width
52.5 mm
- Contact type
2 change-overs
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980066 Dold RN5883.12/61 0066988 Differential current monitor No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2980066 Dold RN5883.12/61 0066988 Differential current monitor No. of relay outputs: 2
Description

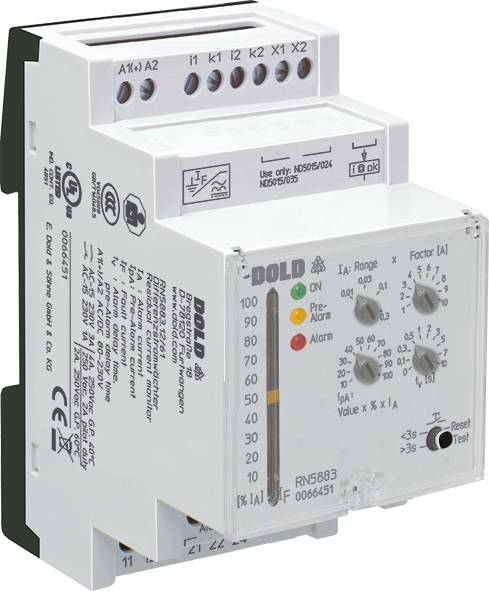

The all-current sensitive residual current monitor RN 5883 is used for the early detection of insulation faults and it detects residual current with both DC and AC components in grounded supply systems (type B). The differential current measurement is performed via an external current converter.
Unlike the FI circuit-breaker, the residual current monitor RN 5883 does not switch off the network immediately when an error is detected, but only indicates this error. In addition to the well-visible LED chain for differential current, LEDs indicate ready status, pre-alarm and alarm. The four measuring ranges of the RN 5883 range from 10 mA to 3 A. Other features include wire break detection, test function and adjustable pre-alarm (pre-alarm). The RN 5883 differential current monitor thus offers an information advantage for targeted and cost-effective maintenance measures - before the plant stops.
Benefits:
Preventive fire and equipment protection
High plant availability due to early fault detection
Universal application in AC/DC-mains
Adjusting protection of the rotary switch by lead-sealable transparent cover
This text is machine translated.
Unlike the FI circuit-breaker, the residual current monitor RN 5883 does not switch off the network immediately when an error is detected, but only indicates this error. In addition to the well-visible LED chain for differential current, LEDs indicate ready status, pre-alarm and alarm. The four measuring ranges of the RN 5883 range from 10 mA to 3 A. Other features include wire break detection, test function and adjustable pre-alarm (pre-alarm). The RN 5883 differential current monitor thus offers an information advantage for targeted and cost-effective maintenance measures - before the plant stops.
Benefits:
Preventive fire and equipment protection
High plant availability due to early fault detection
Universal application in AC/DC-mains
Adjusting protection of the rotary switch by lead-sealable transparent cover
This text is machine translated.
