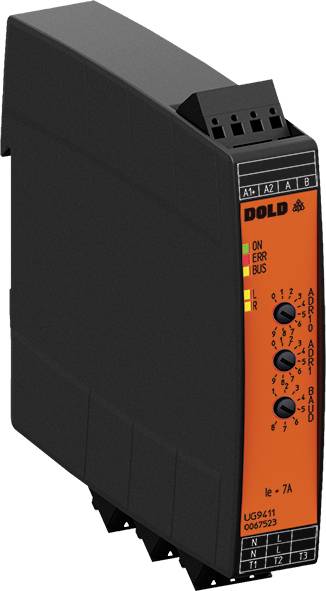

Dold UG9411PM 0067523 Smart motor starter 230 V AC Nominal current 7 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Version: -
- Installation width 22.5 mm.
- 1 / 3-phase 1
- Device type UG 9411
- Pluggable mixed terminals
- Nominal voltage AC 230 V
- Ramp time 0 - 10 s
- Nominal current 7 A
- Load voltage up to AC 230 V
- Load current up to 7 A
- Bus interface: Modbus RTU
- Temperature monitoring: Yes
- Motor voltage
230 V AC
- Product type
Smart motor starter
- Supply current
7 A
- Nominal voltage
230 V AC
- Operating phases
1
- Manufacturer part #
0067523
- Nominal current
7 A
- Nominal current - rounded value
7 A
- Type
UG9411PM
- Braking time (max.)
10 s
- Start-up time required to reach 60 % luminous flux (in sec)
10 s
- Slow-down time
10 s
- Connection
Jack connector
- Braking time
10 s
- Width
22.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980071 Dold UG9411PM 0067523 Smart motor starter 230 V AC Nominal current 7 A
User & Safety Instructions
User & Safety Instructions 2980071 Dold UG9411PM 0067523 Smart motor starter 230 V AC Nominal current 7 A
Description
The intelligent motor starter UG 9411 serves for soft start-up, soft stop, turn and protection of 1-phase asynchronous motors. By phase current measurement, the motor temperature is calculated via a thermal model and the motor is switched off at excess temperature. In addition, a thermo switch can also be used. The direction is reversed through the relay switching. The relays are de-energized. This ensures a long service life of the device.
Benefits:
Up to 6 functions in one device
- Left run
- Clockwise operation
- Soft start
- Soft stop
- Motor protection
- Phase failure monitoring
Widespread measurement and automation protocol
80% less space
Simple and time-saving commissioning as well as user-friendly operation through parameterization via Modbus
Hybrid relay combines the advantages of robust relay technology with wear-free semiconductor technology
High device availability through
- Monitoring of the semiconductor temperature
- High electrical strength of the semiconductors up to 1500 V.
- Current-less direction of rotation relay switching
- Device overload protection
Pluggable connection terminals
TWIN connection terminal for looping through of auxiliary voltage and bus
This text is machine translated.
