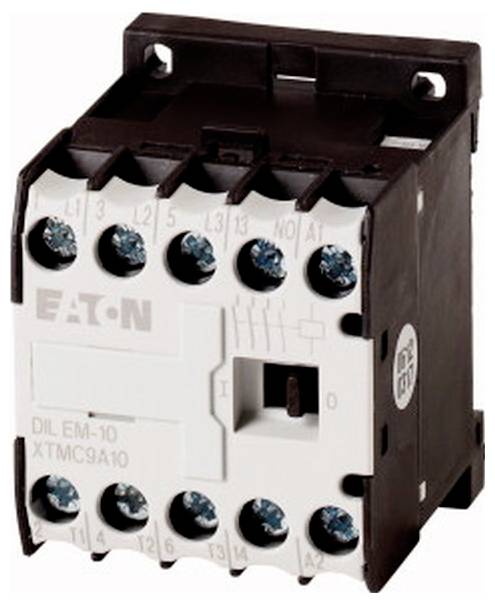

Eaton 010032 Contactor 3 makers 9 A 1 pc(s)
Product type
Contactor
Current load
9 A
Connection
Screws
Type
010032
Contact type
3 makers
EAN:
Part number:
Item no:
Technical specifications
- Product type
Contactor
- Type
010032
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
240 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
240 - 240 V AC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
690 V AC
- Current load
9 A
- Connection
Screws
- Width
45 mm
- Height
58 mm
- Dim
(W x H) 45 mm x 58 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818707 Eaton 010032 Contactor 3 makers 9 A 1 pc(s)
Description
Power contactor, application: Small contactors for motors and resistive loads, power contactors DIM, usage category: AC-1: Non or slightly inductive loads, resistance ovens, NAC-3: Cage rotor motors: Start, switch off during operation, AC-4: Cage rotor motors: Start, Plug in, reverse, type, connection: screw terminals, instructions: suitable also for motors of efficiency class IE3. IE3-enabled devices are marked with the logo on the packaging. Description: With auxiliary contact, number of poles: 3-pole, rated operating current AC-3, 380 V, 400 V: Ie= 9 A.
This text is machine translated.
This text is machine translated.
