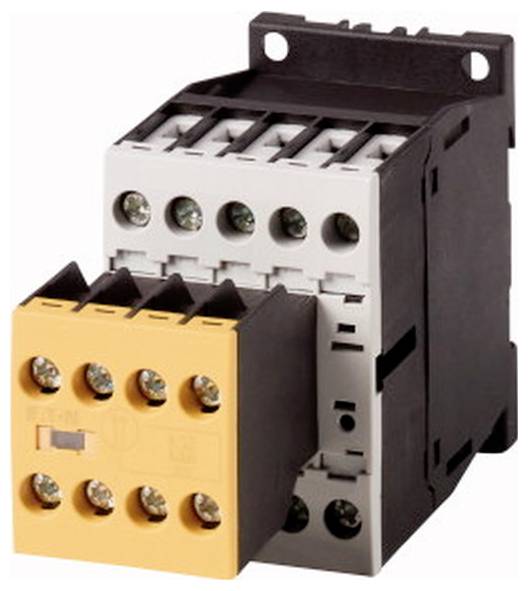

Eaton 191762 Safety contactor 3 makers 9 A 1 pc(s)
Product type
Safety contactor
Current load
9 A
Connection
Screws
Type
191762
Contact type
3 makers
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety contactor
- Type
191762
- Contact type
3 makers
- Auxiliary contact type
3 breakers
2 makers
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
690 V AC
- Current load
9 A
- Connection
Screws
- Width
45 mm
- Height
69 mm
- Dim
(W x H) 45 mm x 69 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818598 Eaton 191762 Safety contactor 3 makers 9 A 1 pc(s)
Description
Safety contactor, application: Power contactors for motors, complete devices larger than 170 A, usage category: AC-1: Non or slightly inductive loads, resistance ovens, NAC-3: Cage rotor motors: Start, switch off during operation, AC-4: Cage rotor motors: Start, Insert, reverse, type, connection: screw terminals, notes: also suitable for IE3 engines. IE3-enabled devices are marked with the logo on the packaging., Description: Auxiliary switch element cannot be separated from the basic unit (manual control not possible).
This text is machine translated.
This text is machine translated.
