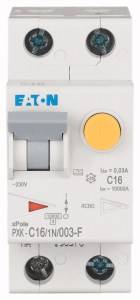

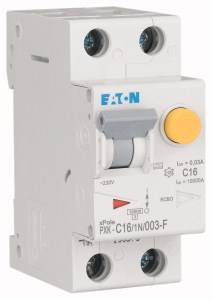

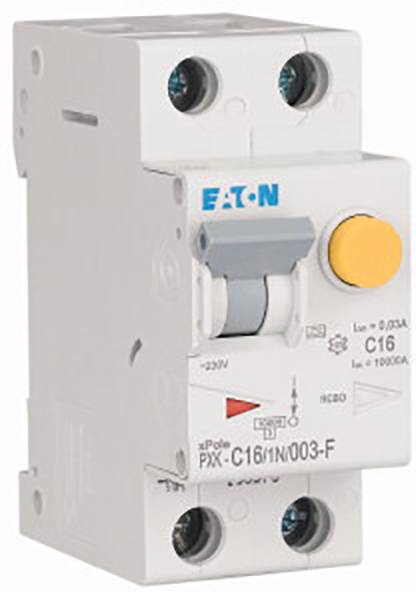

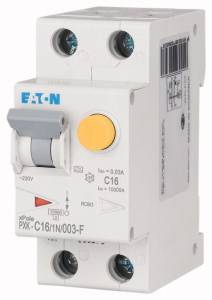

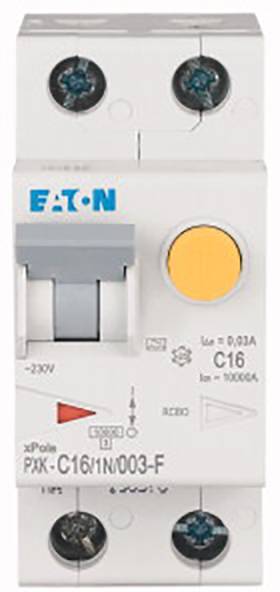

Eaton 193531 RCBO 2-pin 16 A 0.03 A 415 V AC
Product type
RCBO
Number of pins
2
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connectable conductor cross-section single-wire: 1 - 25 mm²
- Connectable conductor cross-section, multi-strand: 1 - 25 mm²
- Number of poles secured: 1
- Trigger: Instantaneous s
- Rated insulation voltage UI: 440 V.
- Rated surge voltage resistance Uimp: 4 kV
- Width in division units: 2
- Sensitivity: Pulse current sensitive
- Energy limitation class: 3
- False trip protection: no.
- Residual current type: C
- Frequency: 50 Hz
- Suitable for flush mounting: no.
- Basic function: Combined RCD/MCB devices
- Max. Operating ambient temperature +40 °C.
- Min Operating ambient temperature -25 °C.
- With locking device: no.
- Neutral switching: Yes
- Number of poles (total): 2
- Protection class (IP): IP20
- Surge current strength 0.25 kA
- Ambient temperature during operation: -25 - 40 °C.
- Power loss of the apparatus, current-dependant [PVID]: 3.4 W.
- Pollution level: 2
- Surge voltage category 3
- Type
1-pole + N
- Product type
RCBO
- Number of pins
2
- Release characteristics
C
- Differential current rating
0.03 A
- RoHS-compliant
Yes
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
6 kA
- Nominal voltage
415 V AC
- Depth
75.5 mm
AC
75.5 mm
16 A
240 V
C
440 V
0.03 A
F
3 kA
3
3
2
2
50 Hz
IP20
1
TRUE
0 kA
1-25 mm²
1-25 mm²
FALSE
-25-40 °C
FALSE
2
TRUE
4 kV
10 kA
Undelayed
10 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2498677 Eaton 193531 RCBO 2-pin 16 A 0.03 A 415 V AC
Description
Compact residual current protective switch/circuit breaker switch for wide range of applications.
