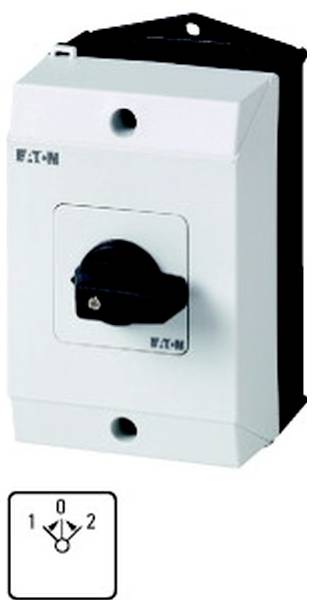

Name: Eaton 207434 Changeover switch IP65 1 pc(s)
Brand: Eaton
SKU: 3818980

Technical specifications

Product type: Changeover switch

Switch/button features: + enclosure
+ zeroing

Operation type: Toggle

Lighting type: None

Material: Plastic

Connection: Screws

: 4 kW

: IP65

Content: 1 pc(s)

Type: 207434

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3818980 Eaton 207434 Changeover switch IP65 1 pc(s)

Description

Switch, range: Control switch, type identifier: T0, with black knob and front plate, contacts: 6, protection class: IP65, design: Surface mounting, switching angle: 45 °, Switching capacity: spring, with 0 position, with 2-sided retraction after 0, front sign: 201, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, rated continuous current: IU = 20 A, 3 module(s), standards and regulations: IEC/EN 60947-3, VDE 0660, IEC/EN 60204, switch disconnectors according to IEC/EN 60947

This text is machine translated.

Description

Switch, range: Control switch, type identifier: T0, with black knob and front plate, contacts: 6, protection class: IP65, design: Surface mounting, switching angle: 45 °, Switching capacity: spring, with 0 position, with 2-sided retraction after 0, front sign: 201, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, rated continuous current: IU = 20 A, 3 module(s), standards and regulations: IEC/EN 60947-3, VDE 0660, IEC/EN 60204, switch disconnectors according to IEC/EN 60947

This text is machine translated.
