Eaton 9SX6KIRT 19" UPS 6000 VA
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

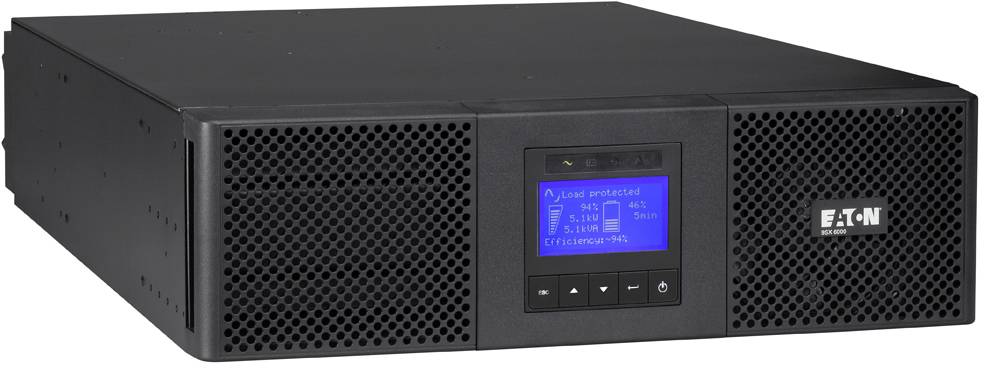

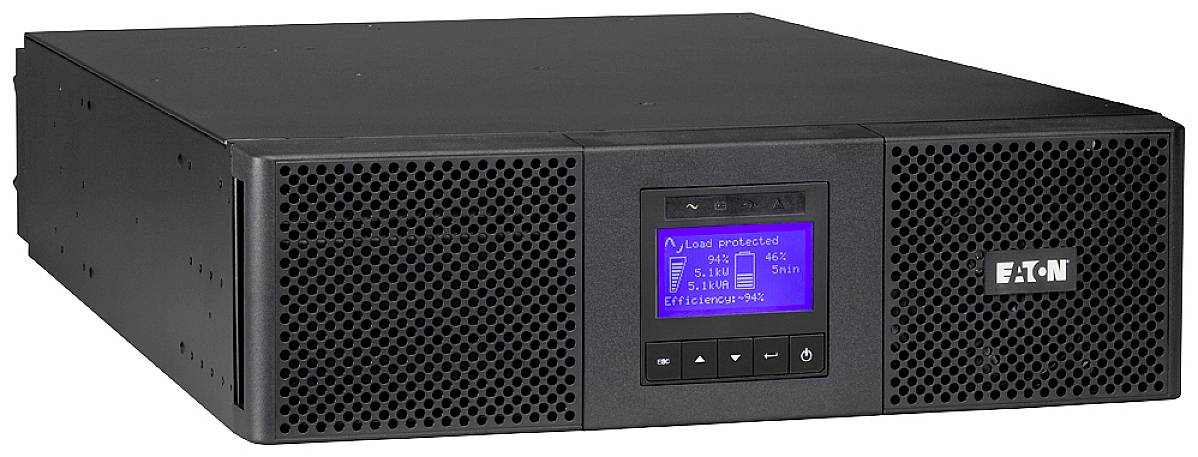

Eaton 9SX 6000i RT3U - 6000/5400 (VA/Watt) UPS
- With output power factor 0.9, e.g. 3000VA / 2700W

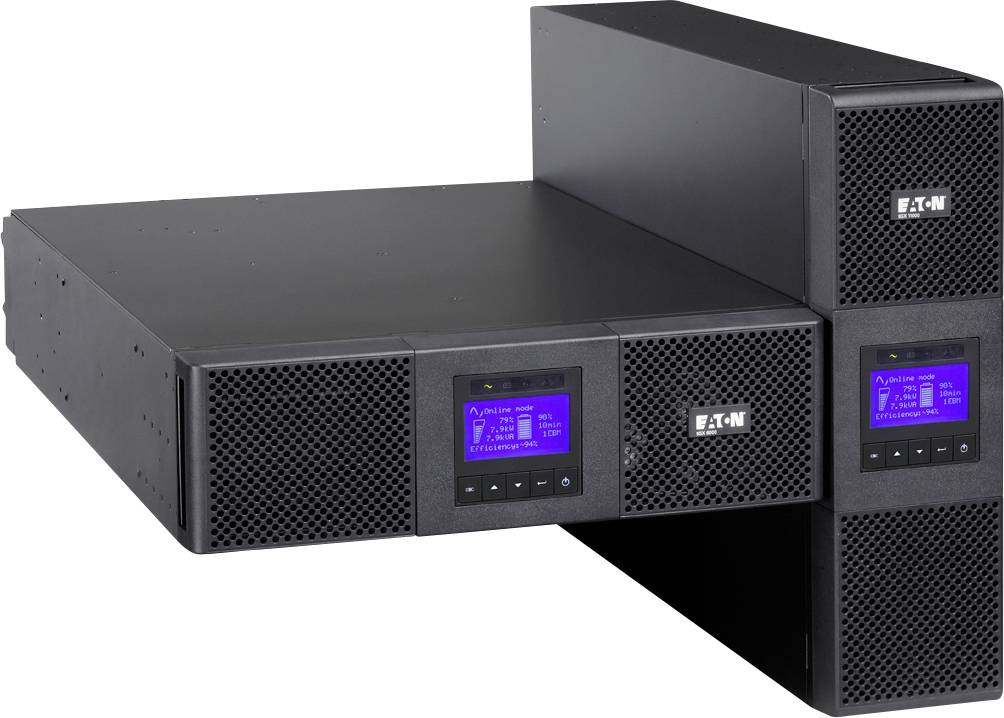

- Complete mounting kit for 19" rack installation (rack models)
- Bridging time can be extended with up to 4 battery modules (EBM) (except 700VA Tower)
Technical specifications
- Product type
19" UPS
- Nominal power
6000 VA
- No. of outputs
7 x
- with surge protection
7
- of which battery-buffered
7
- Output
Terminal strip
- Features
Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module
- Bridging time normal load
11 min
- Bridging time, max load
4 min
- Surge protection for
Mains outlets
- Type
9SX6KIRT
- Width
130 mm
- Height
440 mm
- Depth
685 mm
- Weight
48 kg
- Factory colour
Black
- Screen size diagonal (inches)
24 inch
- No. of USB A 2.0 ports
1 x
- Load (max.)
90 A
- Max. operating noise
45 dB
5400 W
- Nominal load efficiency
98 %
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Output power capacity
6 kVA
- Typical backup time at half load
11 min
- RS-232 ports
1
- Input current Total Harmonic Distortion (THD)
5 %
- Output voltage Total Harmonic Distortion (THD)
2 %
- Automatic battery test
yes
- Input operation voltage (max)
276 V
- Input operation voltage (min)
100 V
- Output operation voltage (min)
200 V
- Output operation voltage (max)
240 V
Documents & Downloads
Datasheet
Datasheet 2362717 Eaton 9SX6KIRT 19" UPS 6000 VA
User & Safety Instructions
User & Safety Instructions 2362717 Eaton 9SX6KIRT 19" UPS 6000 VA
Description
Eaton 9SX 700-6000VA ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040-3 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunications equipment, VOICE over IP (VOIP)
This text is machine translated.
This text is machine translated.
Features

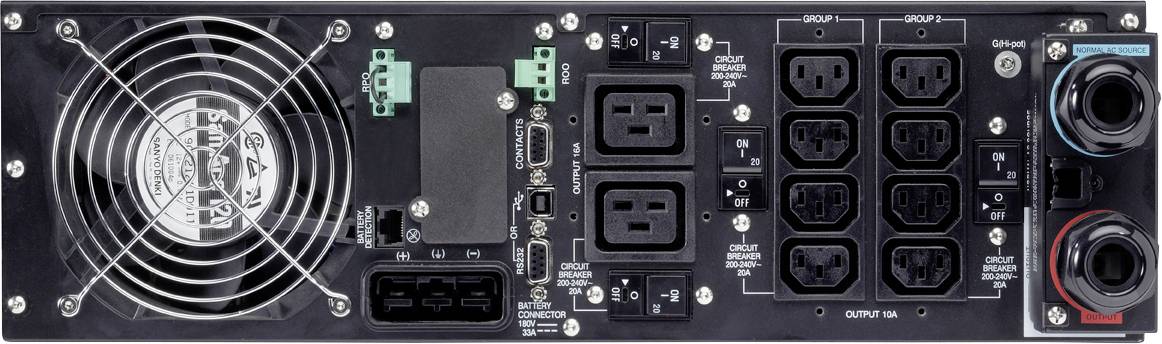

- Available interfaces, RS232, USB, 1*relay and emergency-off, incl. RS323 + USB cable
- Communication slot for optional SNMP or relay card
- Power measurement in kW/h, automatic battery detection
- Software Suite, Shutdow and Monitoring Software.
Scope of delivery
- IEC connection cable
System requirements
- Windows XP, Windows Vista and Windows 7, 8 & 73
