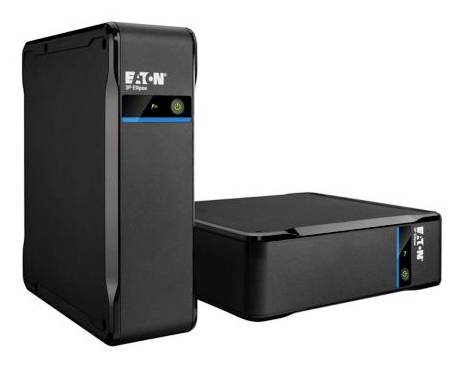

Two black Eaton battery backup units, one upright and one lying flat, shown on a white background.<br>

Two black Eaton battery backup units, one upright and one lying flat, shown on a white background.<br>

Eaton UPS battery backup unit on a desk in an office setting, with a monitor, mouse, and pen cup in the background.

Front view of an Eaton 3P Ellipse UPS with a power button, status light, and blue accent strip.

1/3

Eaton

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: UPS

Type: EATON 3P Ellipse 550 DIN 550VA/330W

Width: 81 mm

Height: 263 mm

Depth: 235 mm

Weight: 3 kg

Factory colour: Black

Case type: Tower

Battery capacity: 4.5 Ah

Battery voltage: 12 V

Max. operating noise: 25 dB

: 330 W

Nominal load efficiency: 97 %

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Output power factor: 0.6

Relative humidity: 0 - 95 %

Output power capacity: 0.55 kVA

Rack mount kit: no

Auto shut-off: no

Efficiency (ECO mode): 97 %

: yes

Surge protection: yes

Input operation voltage (max): 284 V

Input operation voltage (min): 161 V

Output operation voltage (min): 161 V

Output operation voltage (max): 284 V
