Eaton EL1200USBIEC UPS system 1200 VA
EAN:
Part number:
Item no:
Highlights & Details

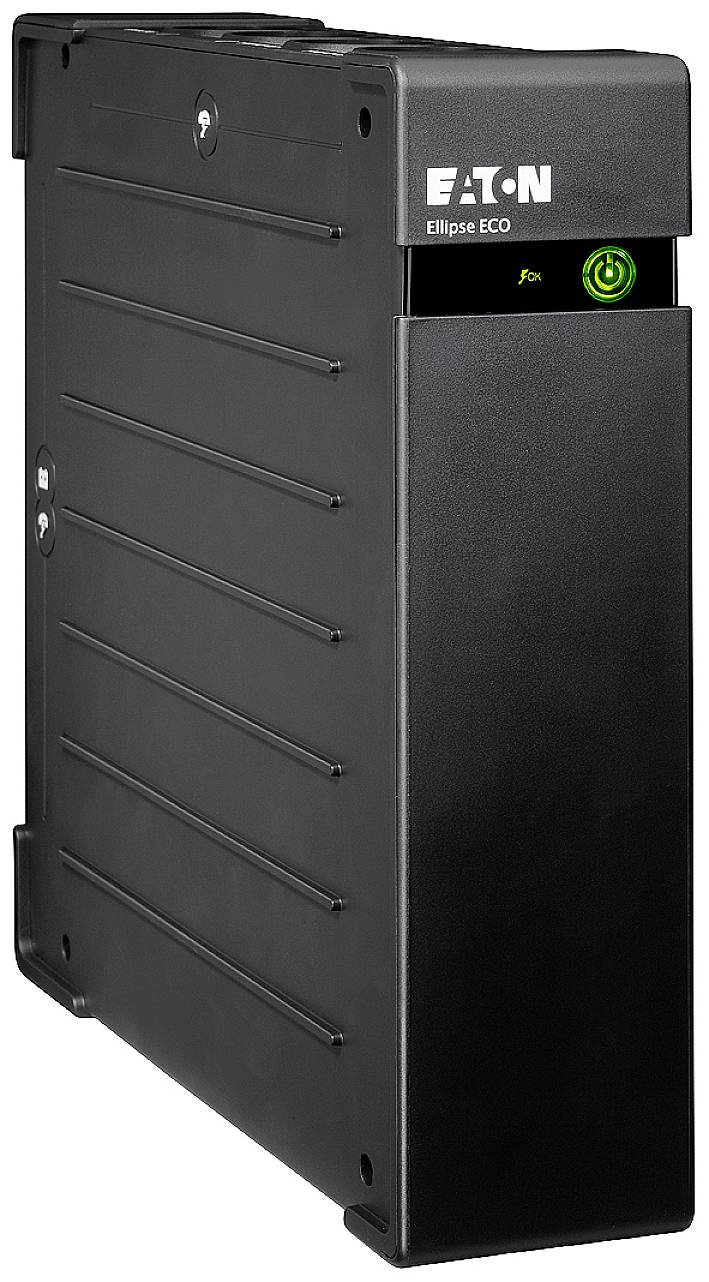

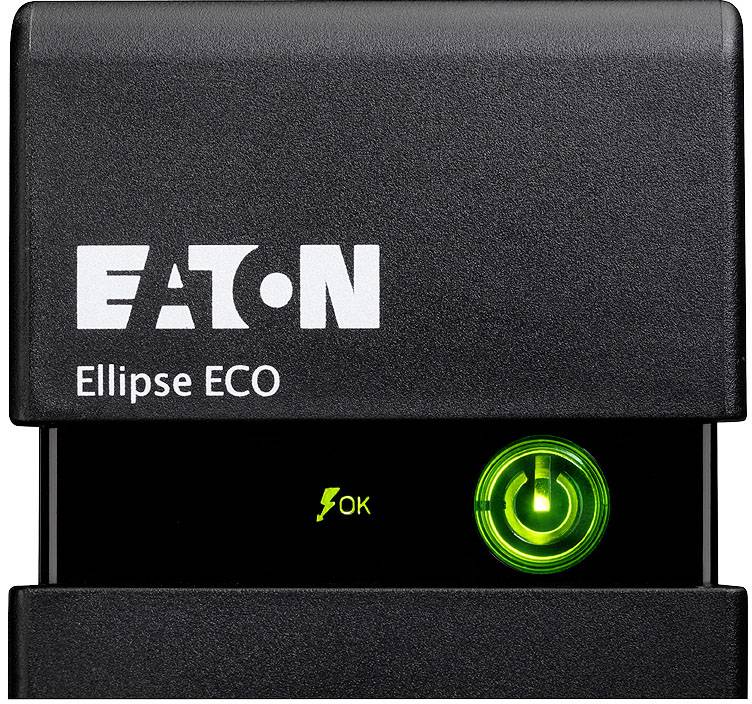

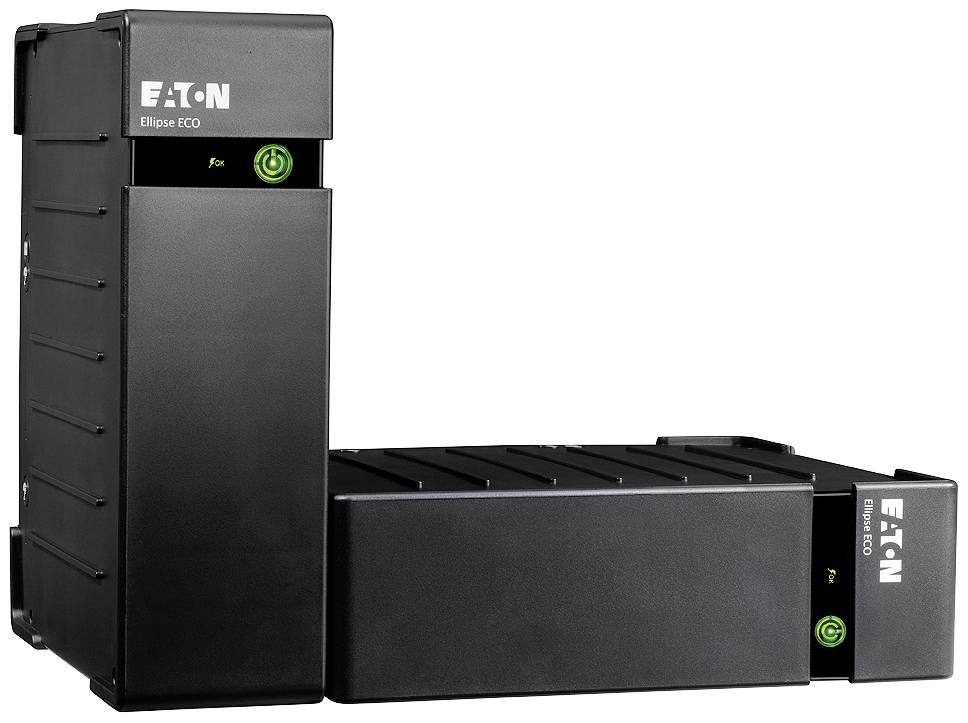

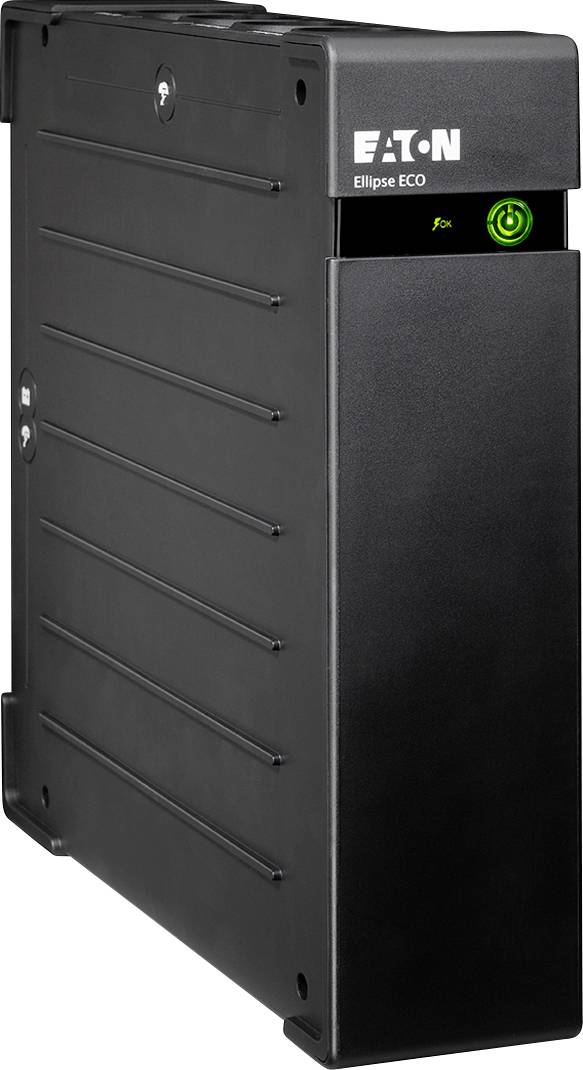

Eaton Ellipse ECO 1200 USB IEC - 1200/750 (VA/Watt) UPS

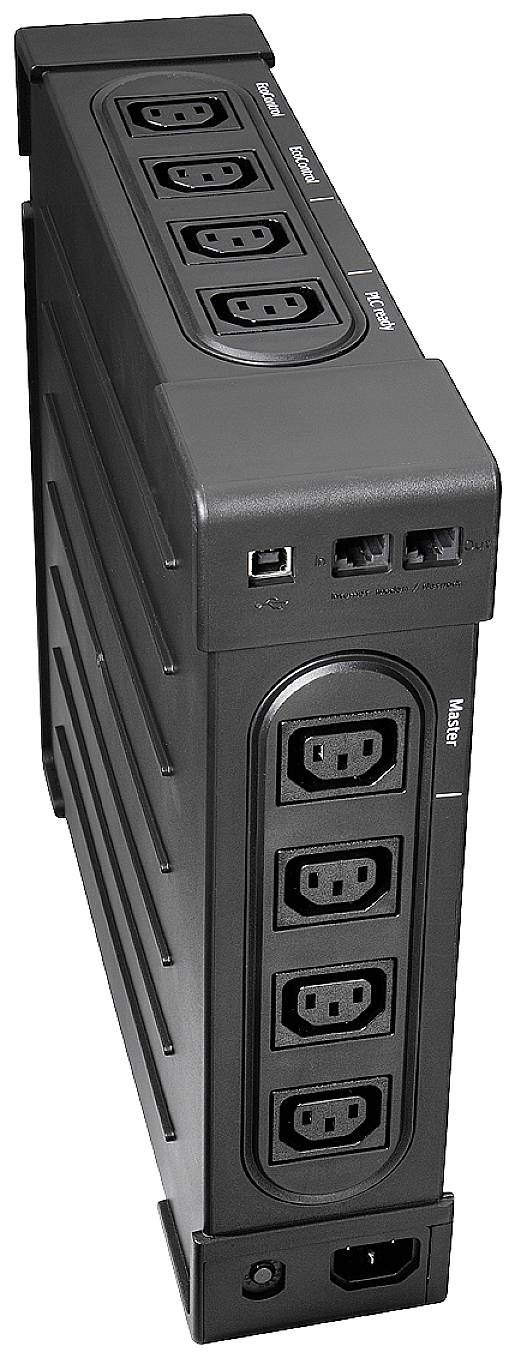

- Combination of UPS, lightning protection and 4/8 IEC / DIN SCHUKO socket outlets
- 500-800VA 3x surge protection + battery backup, 1x surge protection only
- 1200-1600VA 4x surge protection + battery backup, 4x surge protection only
Technical specifications
- Insurance coverage: Unlimited
- Product type
UPS system
- Nominal power
1200 VA
- No. of outputs
8 x
- with surge protection
8
- of which battery-buffered
4
- Output
IEC C14 plug
- Features
Alarm
USB port
- Bridging time normal load
9.5 min
- Bridging time, max load
6 min
- Surge protection for
Mains outlets
Networks (RJ45)
ISDN (RJ45)
- Type
EL1200USBIEC
- Width
81 mm
- Height
305 mm
- Depth
312 mm
- Weight
6.7 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2362794 Eaton EL1200USBIEC UPS system 1200 VA
Description
Eaton ELLIPSE ECO VFD-SY-313 according to EN 62040 - Protection for professional PC applications - Application area: Low-cost power failure & surge protection for all electronic consumers, PC workplace, home computer, communication equipment, scanner, Beamer, TK-/ISDN-system
This text is machine translated.
This text is machine translated.
Features
- Data line protection for Tel/Fax/Modem, Ethernet 10/100
- all USB models with USB interface, cable and

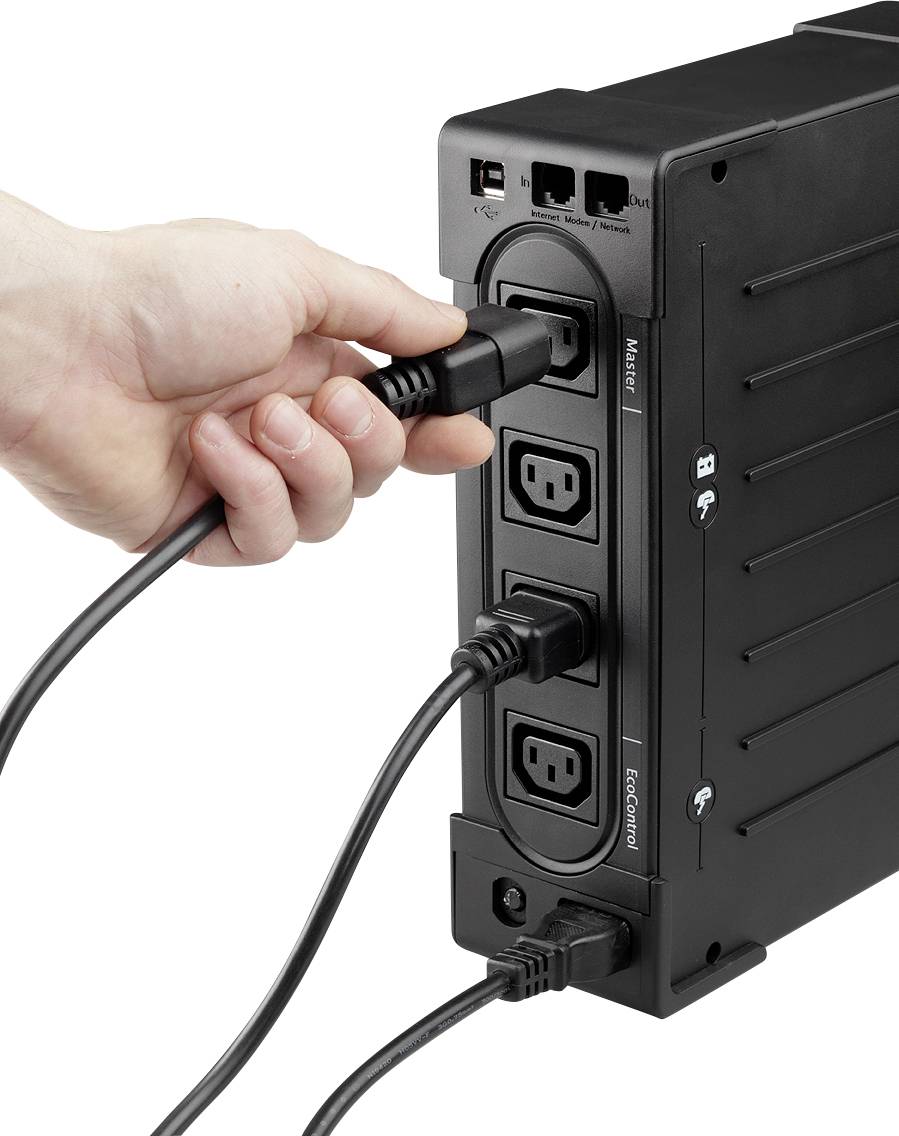

- Management software on CD-ROM as well as EcoControl (master-slave functionality).
Scope of delivery
- IEC connection cable
System requirements
- Windows XP, Windows Vista and Windows 7, 8 & 79
