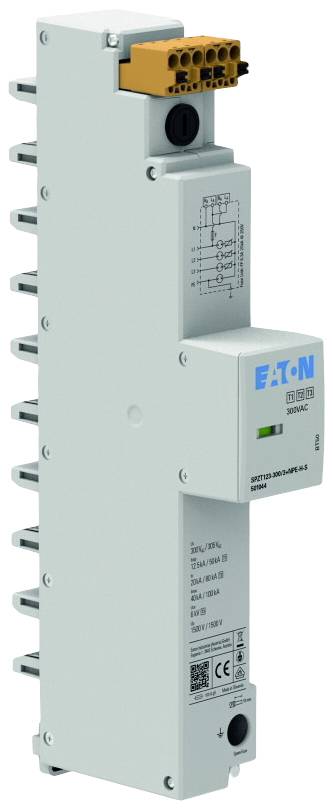

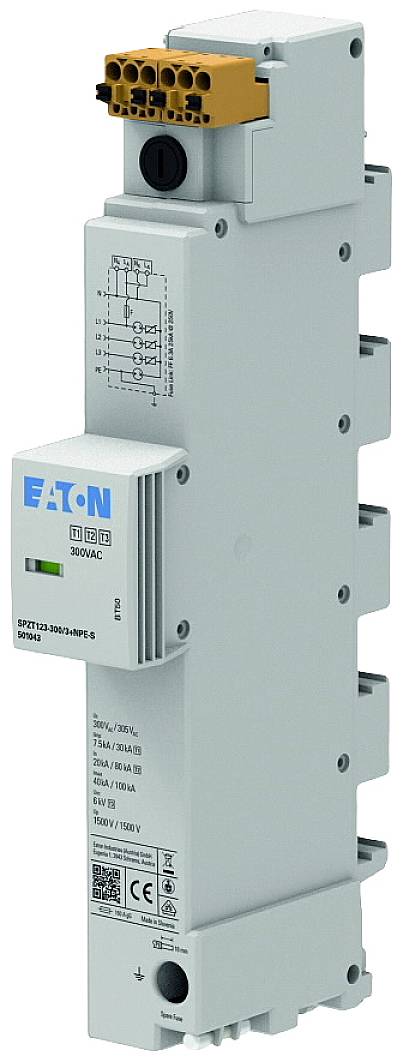

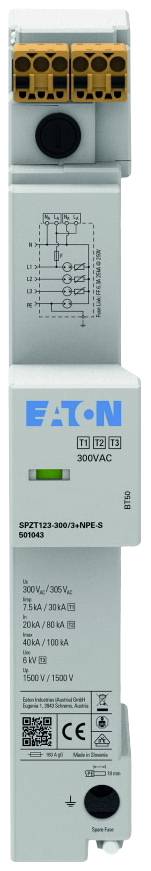

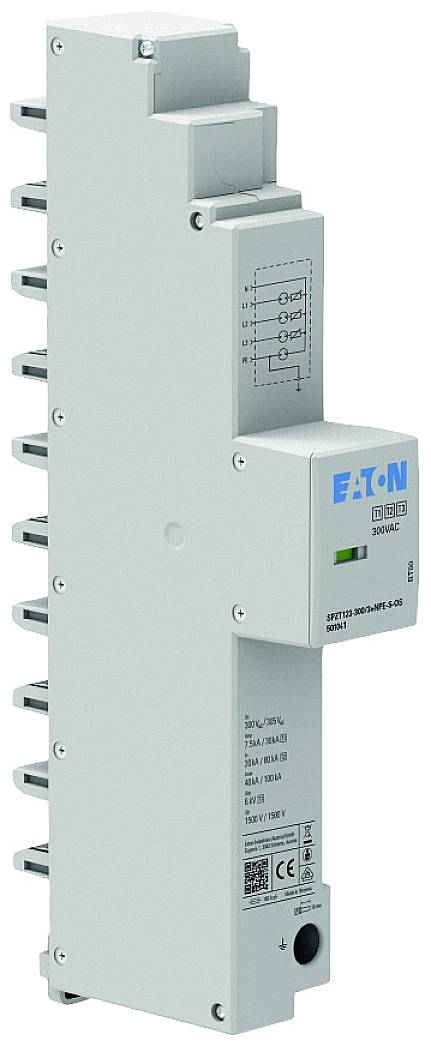

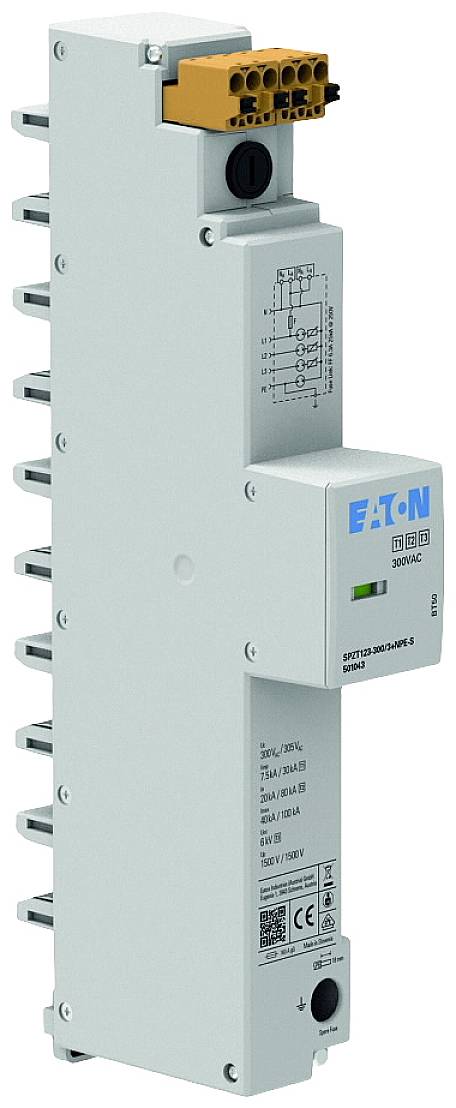

Eaton EP-501043 SPZT123-300/3+NPE-S Surge arrester Surge protection for: 40 mm busbar 7.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Surge arrester for 40-mm busbar, TN-S/TT, 3P, 7.5 kA (10/350)µs, class I+II+III/type 1+2+3
- Easy Implementation7.5kA with voltage pickupEnergetic coordinated protection effect to the terminalVoltage-switching spark-distance technologyOvercurrent-protected voltage tap
Technical specifications
- Mains type TNMains type TN-CMAINS TYPE TN-C-SMains form TN-SMains form TTNumber of pins: 4Surge current (10/350 µs) 7.5 kAMaximum continuous voltage AC 300 VNominal voltage AC 240 VProtection level 1.5 kVProtection level L-N 1.5 kVProtection level N-PE 1.5 kVSuppression load 0.1 kASpecific energy (W/R): 14 kJ/ohmMax. Overcurrent protection device Stitch wiring (fuse): 160 A.Busbar mountingInstallation size 2 TESignalling at device: OpticalTest class: Type 1 and 2 and 3
- Product type
Surge arrester
- Surge protection for
40 mm busbar
- Leakage current
7.5 kA
- Nominal voltage
240 V AC
300 V AC
IP20
- Manufacturer part #
EP-501043
- Type
SPZT123-300/3 + NPE-S
- Factory colour
Light grey
- Standards
VDE 0100-443/-534Class I+II+III/type 1+2+3IEC 61643-11 2011EN 61643-11: 2012+A11: 2018
- Dim
(W x H x D) 36 x 233.4 x 102.3 mm
- Width
36 mm
- Height
233.4 mm
- Depth
102.3 mm
- Content
1 pc(s)
- Number of pins
4
- Weight
710 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2734685 Eaton EP-501043 SPZT123-300/3+NPE-S Surge arrester Surge protection for: 40 mm busbar 7.5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2734685 Eaton EP-501043 SPZT123-300/3+NPE-S Surge arrester Surge protection for: 40 mm busbar 7.5 kA 1 pc(s)
Description
The overvoltage protection SPZT123 of Eaton is especially meant for installations in buildings according to VDE 0100-443/-534. The installation is done pluggable on the 40 mm-conductor rail of the meter distributor in the network-side connection area in the network-side connection area (NAR). Neither screws nor tools are required for installation. A corresponding housing design prevents the wrong positioning and automatically adjusts to the 5 mm or 10 mm busbar
This text is machine translated.
