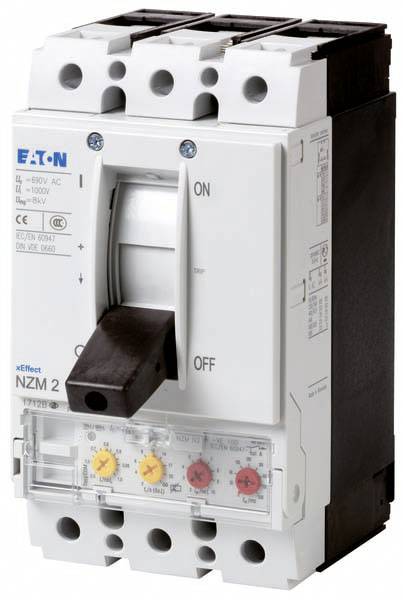

Name: Eaton NZMN2-VE100 Circuit breaker 1 pc(s) Adjustment range (amperage): 50 - 100 A Switching voltage (max.): 690 V AC
Brand: Eaton
SKU: 2307035
Availability: BackOrder

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

100 A

Connection

Screws

Type

NZMN2-VE100

Amperage adjustment range (min.)

50 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,079.00 / piece)

€ 1,079.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design of the actuator: Rocker arm
Rated continuous current IU: 100 A
Setting range of the short-time delayed short-circuit release: 100 A - 1000 A
Setting range of the instantaneous short-circuit release: 1200 A - 1200 A
DIN rail mounting optional: Yes
Complete unit with protection unit: Yes
Motor drive optional: Yes
Position of the connection for main circuit: Front

Product type: Circuit breaker

Type: NZMN2-VE100

Amperage adjustment range (min.): 50 A

Amperage adjustment range (max.): 100 A

Adjustment range (amperage): 50 - 100 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Connection: Screws

: IP20

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 100 A

: FALSE

: 3

: 50-100 A

: 0

: 690-690 V

: IP20

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 50 kA

: 100-1000 A

: 1200-1200 A

: FALSE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
