Ebara 1120150000E AGC 1.50 M (TÜV) Rotodynamic pump 9900 l/h 40 m
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

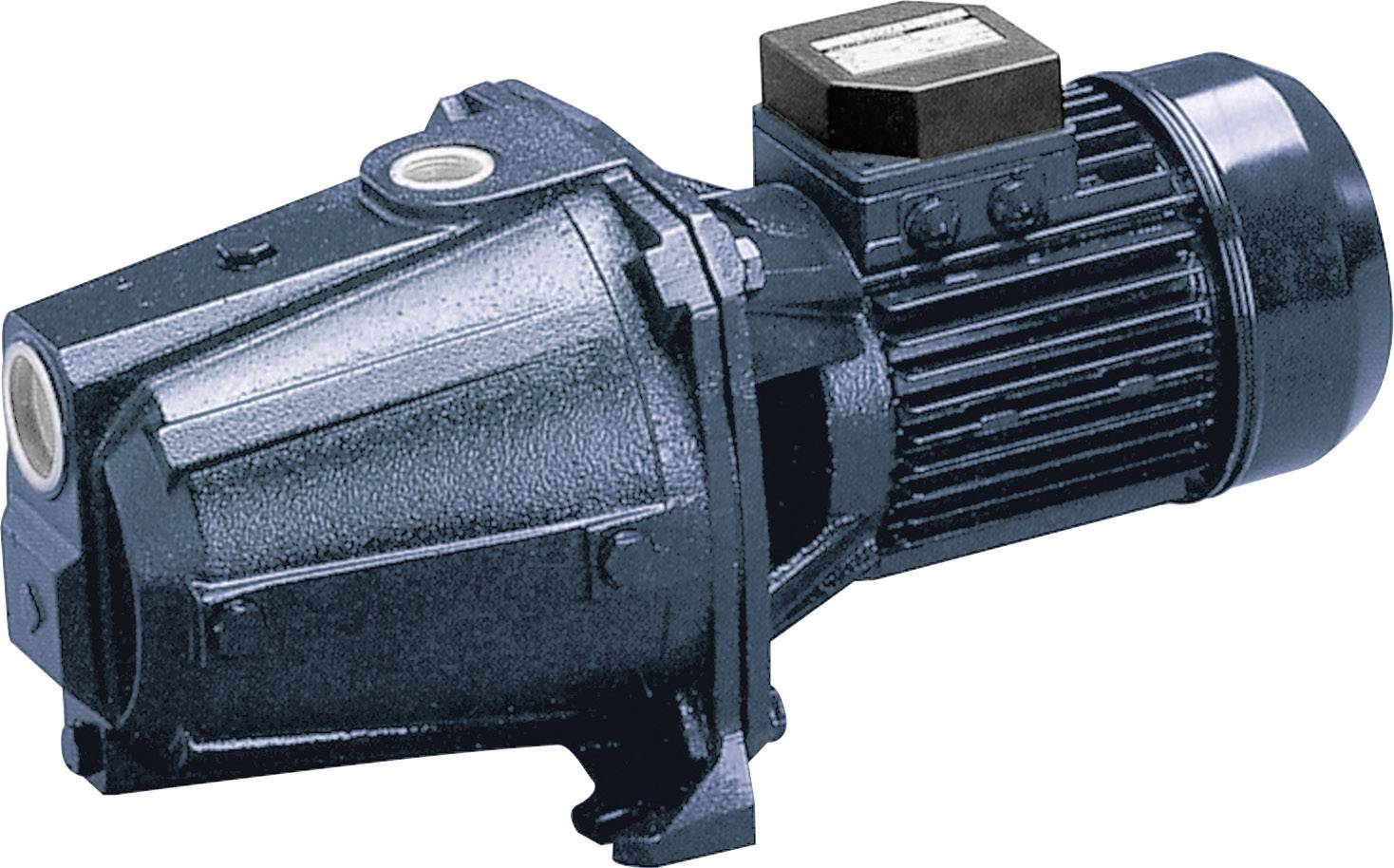

EBARA AGC 1.50 M (TUV) CENTRIFUGAL PUMP
- Max. delivery head=40 m
- Max. feed rate=9900 l/h
- Operating voltage=230 V
Technical specifications
- Product type
Rotodynamic pump
- Max. delivery head
40 m
- Max. feed rate
9900 l/h
- Max. discharge pressure
4 bar
- Operating voltage
230 V
IP44
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207159 Ebara 1120150000E AGC 1.50 M (TÜV) Rotodynamic pump 9900 l/h 40 m
Description
Self-priming, single-stage centrifugal pumps made of gray cast iron
The self-priming, horizontal centrifugal pumps made of gray cast iron are for the conveyance of clear liquids, which are the
Do not attack pump materials, suitable. Applications include water supply, pressure increase, irrigation, rain water use, washing facilities and filter systems.
The self-priming pumps AGA - AGC are practical and user-friendly. Thanks to their low weight and small dimensions, they are easy to install and maintain. Installed on a flat surface and well fixed, they enable a suction of up to 8 m. Before commissioning, the pump must be completely filled and bled. A foot valve including filter (on site) allows reliable operation.
This text is machine translated.
The self-priming, horizontal centrifugal pumps made of gray cast iron are for the conveyance of clear liquids, which are the
Do not attack pump materials, suitable. Applications include water supply, pressure increase, irrigation, rain water use, washing facilities and filter systems.
The self-priming pumps AGA - AGC are practical and user-friendly. Thanks to their low weight and small dimensions, they are easy to install and maintain. Installed on a flat surface and well fixed, they enable a suction of up to 8 m. Before commissioning, the pump must be completely filled and bled. A foot valve including filter (on site) allows reliable operation.
This text is machine translated.
Features
- Operating pressure (max.) 10 bar for the rest of the series
- Max. Temperature of the medium: 45°C.
- Max. Suction height 8 m.
- Number of poles: 2
- Insulation class: F
- Protection class: IP44
- AC voltage: 1~230V ±10%
- Pump casing gray cast iron
- Impeller: Brass for the rest of the series
- Ejector/difusor: PPE+PS (GFK)
- Shaft: Stainless steel AISI 303 (EN 1.4305) (contact with media)
- Ceramic/Coal/NBR mechanical seal (standard)
- Motor carrier: Cast iron for the rest of the series
- The alternating current version has a power capacitor and an integrated bimetal circuit breaker with automatic reset.
- This text is machine translated.
Scope of delivery
- EBARA AGC 1.50 M (TUV) CENTRIFUGAL PUMP
