Ebara 1540000316A SB3-15 M Well pump 2700 l/h 46 m
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
EBARA SB3-15 M SUBMERSIBLE PUMP
- Maximum delivery height: 46 m.
- Output: 370 W
- Alternating current version 230 V
- This text is machine translated.
Technical specifications
- Product type
Well pump
- Max. delivery head
46 m
- Max. feed rate
2700 l/h
- Max. discharge pressure
4.6 bar
- Operating voltage
230 V
- Power consumption (P1)
370 W
- Overload protection
Yes
IP58
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207193 Ebara 1540000316A SB3-15 M Well pump 2700 l/h 46 m
Description

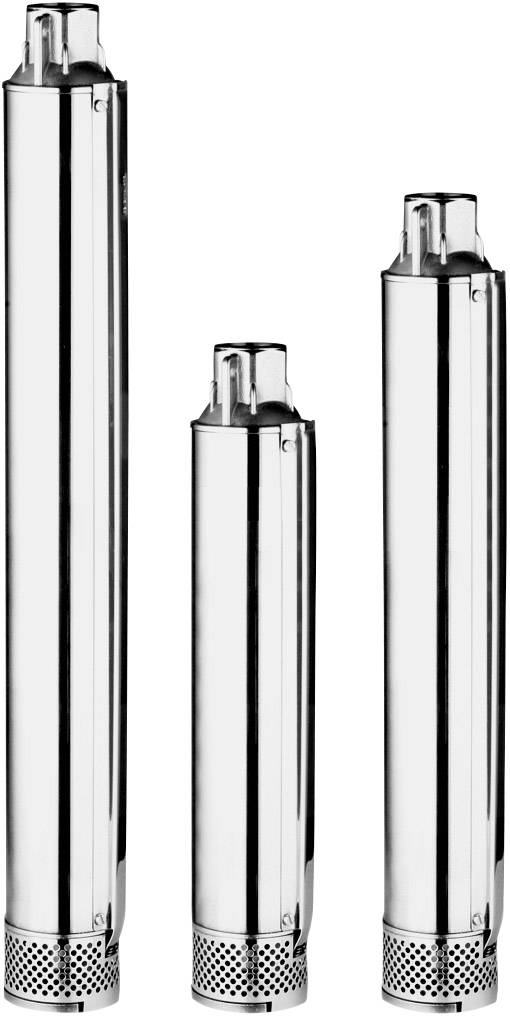

The 3” underwater pumps made of AISI 304/PPO glass-fiber reinforced are suitable for conveying clear liquids that do not attack the pump materials. Applications include water supply from deep wells, booster systems, irrigation systems, plant/apparatus construction and industrial applications.
This text is machine translated.
This text is machine translated.
Features
- Max. Immersion depth: 60 m
- Max. Temperature: 30°C
- Max. Solids content: 50 g/m3
- Number of pins: 2
- Insulation class: F
- Protection class: IP 58
- Voltage alternating current: 1~230V ±6-10%Materials
- outer casing AISI 304 (EN 1.4301)
- impeller PPO (GFK)
- shaft AISI 430F (EN 1.4105)
- pressure housing AISI 304 (EN 1.4301)
- motor carrier AISI 304 (EN 1.4301)
Scope of delivery
- Submersible pump
- Including motor
- 1.5 m power cable
- Control box (IP65) and integrated overload protection,
- unmounted
- User manual.
