Ebara 1599030004A DW VOX 75 Effluent sump pump 24000 l/h 7.5 m
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

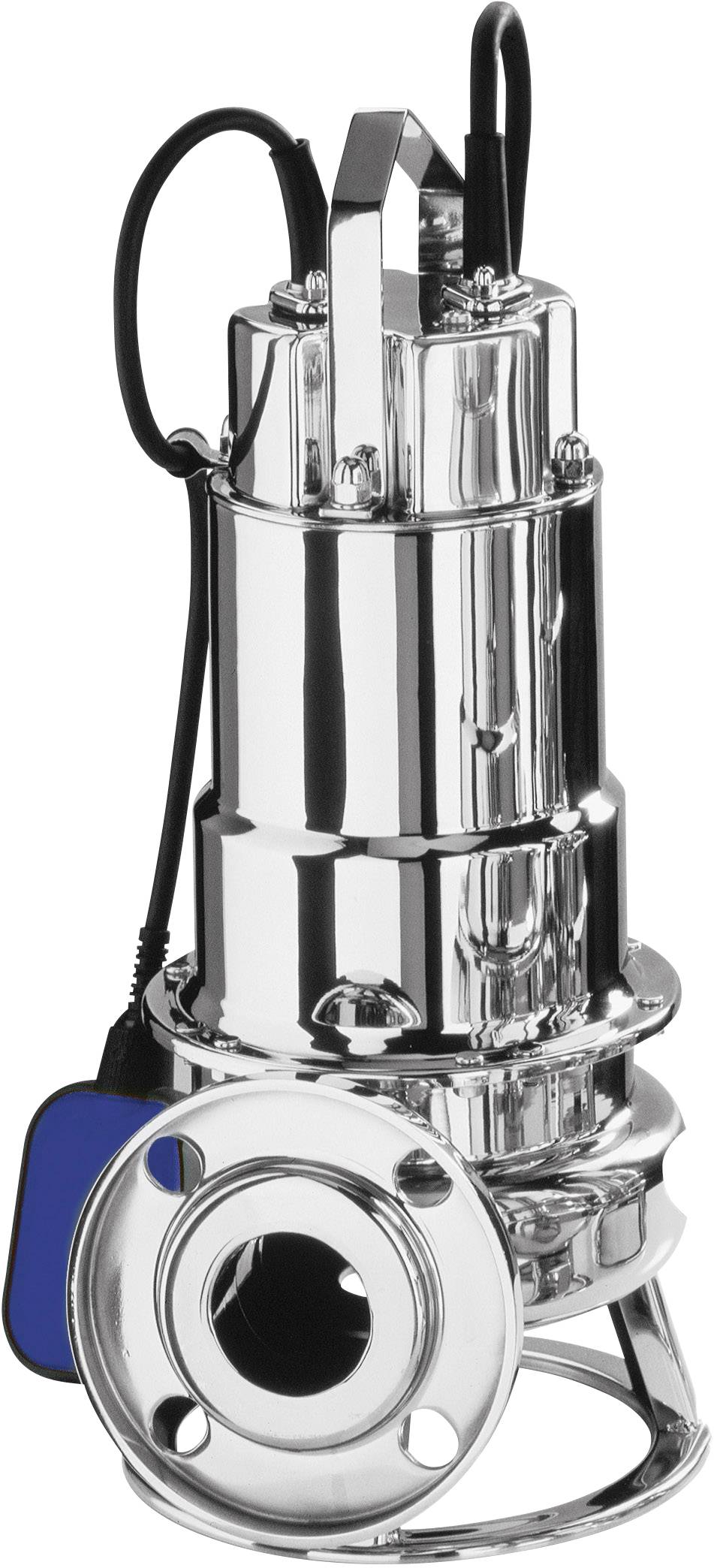

EBARA DW VOX 75 SUBMERSIBLE PUMP
- Max. delivery head=7.5 m
- Max. feed rate=24000 l/h
- Operating voltage=400 V
Technical specifications
- Product type
Effluent sump pump
- Max. delivery head
7.5 m
- Max. feed rate
24000 l/h
- Max. discharge pressure
0.75 bar
- Operating voltage
400 V
- Max. size of solids
50 mm
- Immersion depth
7 m
IPX8
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207214 Ebara 1599030004A DW VOX 75 Effluent sump pump 24000 l/h 7.5 m
Description
Submersible pumps for dirt and waste water made of stainless steel AISI 304/cast iron
The submersible pumps made of stainless steel AISI 304/cast iron are suitable for the conveyance of dirt and waste water. The areas of application include the disposal of waste water and waste water also with fibrous components and solids, drying of cellars, garages and commercial objects, emptying of pump shafts and containers for dirty water, leachate and rainwater, disposal of gray water also from commercial washing machines and dishwashers, plant/apparatus construction and industrial applications.
This text is machine translated.
The submersible pumps made of stainless steel AISI 304/cast iron are suitable for the conveyance of dirt and waste water. The areas of application include the disposal of waste water and waste water also with fibrous components and solids, drying of cellars, garages and commercial objects, emptying of pump shafts and containers for dirty water, leachate and rainwater, disposal of gray water also from commercial washing machines and dishwashers, plant/apparatus construction and industrial applications.
This text is machine translated.
Features
- Pump housing AISI 304 (EN 1.4301)
- Impeller AISI 304 (EN 1.4301)
- Shaft AISI 303 (EN 1.4305) (media touching part)
- Mechanical seal: Double mechanical seal in oil template
- Coal/ceramic/NBR (motor side)
- Silicon Carbide/Silicon Carbide/NBR (Pump Side)
- Vortex impeller
- Three-phase version
- Permanent split capacitor installed in overload motor protection with automatic reset.
- Three-phase version with integrated thermo-sensor cable for connection to an external.
- This text is machine translated.
Scope of delivery
- EBARA DW VOX 75 SUBMERSIBLE PUMP
- 10 m power cable FG50K with thermal sensor
