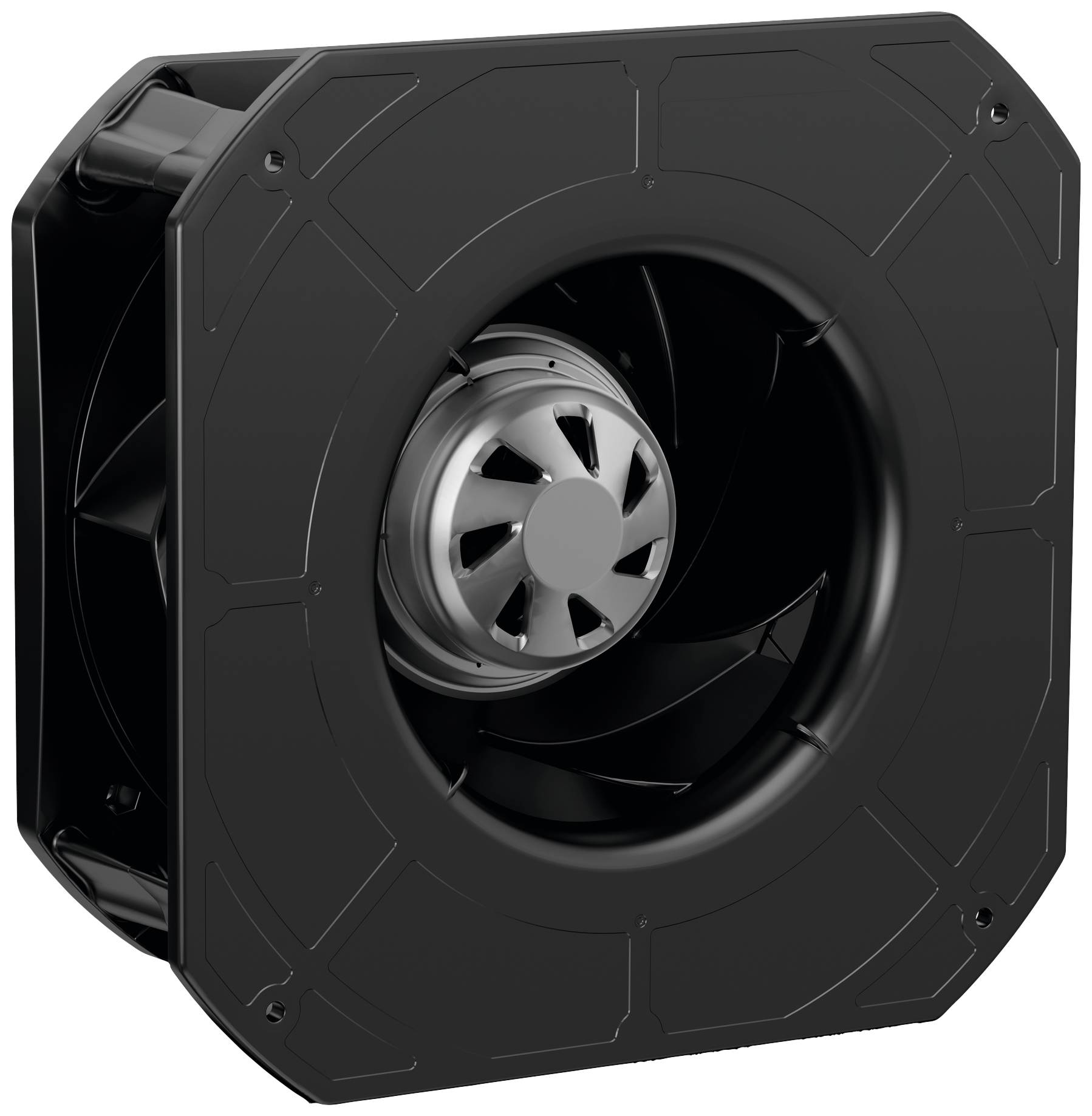

EBM Papst VBH0225RSLFS Radial extractor 230 V 790 m³/h
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EC radial module
- 200-240VAC-50/60Hz
- Clock-wise rotation
- Ball bearings, IP54, ISO class B
Technical specifications
- Product type
Radial extractor
- Nominal voltage
230 V
- Nominal voltage range
200 - 240 V
170 W
- Rotational speed
2850 U/min
- Air flow rate
790 m³/h
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP54
- Factory colour
Black
- Material
Aluminium (die-cast)
Plastic
- Weight
2.32 kg
- Dim
(L x W x H) 270 x 270 x 124.1 mm
- Width
270 mm
- Height
124.1 mm
- Length
270 mm
Documents & Downloads
Datasheet
Datasheet 2900997 EBM Papst VBH0225RSLFS Radial extractor 230 V 790 m³/h
User & Safety Instructions
User & Safety Instructions 2900997 EBM Papst VBH0225RSLFS Radial extractor 230 V 790 m³/h
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Features
- 200-240VAC-50/60Hz
- Clock-wise rotation
- Ball bearings, IP54, ISO class B
- Control input 0-10V / PWM
- Electronic Motor Protection
- Cable 330mm
- Output 10 VDC, max. 10 mA
- Blocking detection
- Speed output
- Speed control
- Power limitation
- Motor current limitation
- Soft start-up.
- Control input 0-10 VDC / PWM
- Control interface with SELV potential securely isolated from the grid
- Overvoltage detection
- Overtemperature protection Electronic / Motor
- Under voltage identification
- POWER CORD (PWR) PVC AWG20
- 3x wire-end claw
- 2 CONTROL CABLE (CTRL) PVC AWG22
- 6x wire-end clamp
Scope of delivery
- EC radial module
- User manual.
