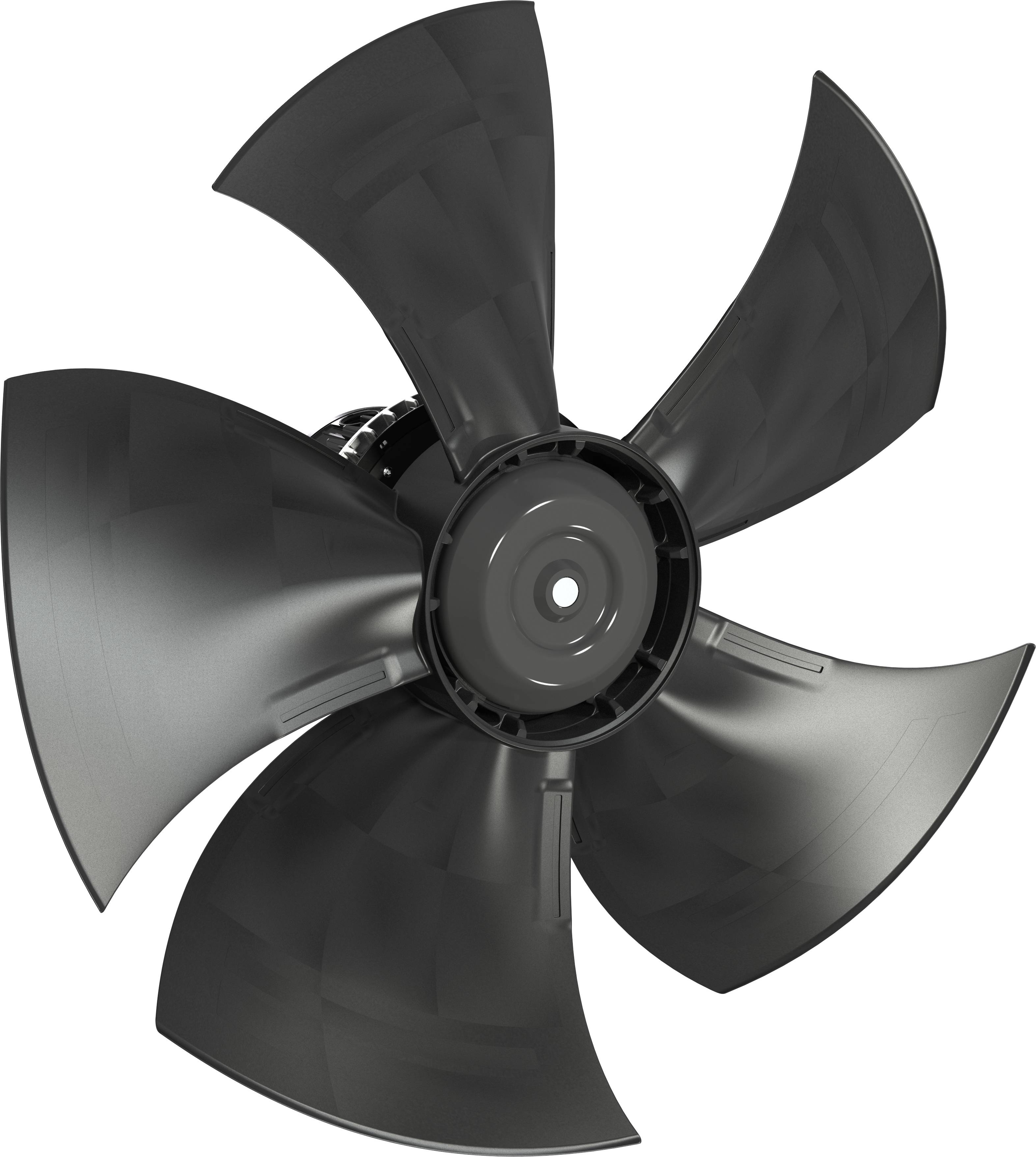

EBM Papst VVY0630HTRLS Axial fan 400 V AC 7200 m³/h (L x W x H) 241 x 626 x 626 mm
Product type
Axial fan
Nominal voltage
400 V AC
Power
700 W
Type of bearing
Ball bearing
Air flow rate
7200 m³/h
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Motor: EC, 3~ power supply
- Motor number: 10
- Motor size 112 mm
- Wheel size 630 mm
- Direction of rotation: Left
- Motor system: External rotor
- Motor type: Electronic Come. Motor
- Product type
Axial fan
- Type
VVY0630HTRLS
- Nominal voltage
400 V AC
- Min. operating voltage
380 V AC
- Max. operating voltage
480 V AC
- Operating voltage
380 - 480 V AC
- Max. current consumption
1.1 A
700 W
- Type of bearing
Ball bearing
- Rotational speed
1000 U/min
- Air flow rate
7200 m³/h
- Weight
9600 g
IP55
- Length
241 mm
- Width
626 mm
- Height
626 mm
- Dim
(L x W x H) 241 x 626 x 626 mm
