Ehmann 5592x0000 Universal dimmer Suitable for light bulbs: Light bulb, LED bulb White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

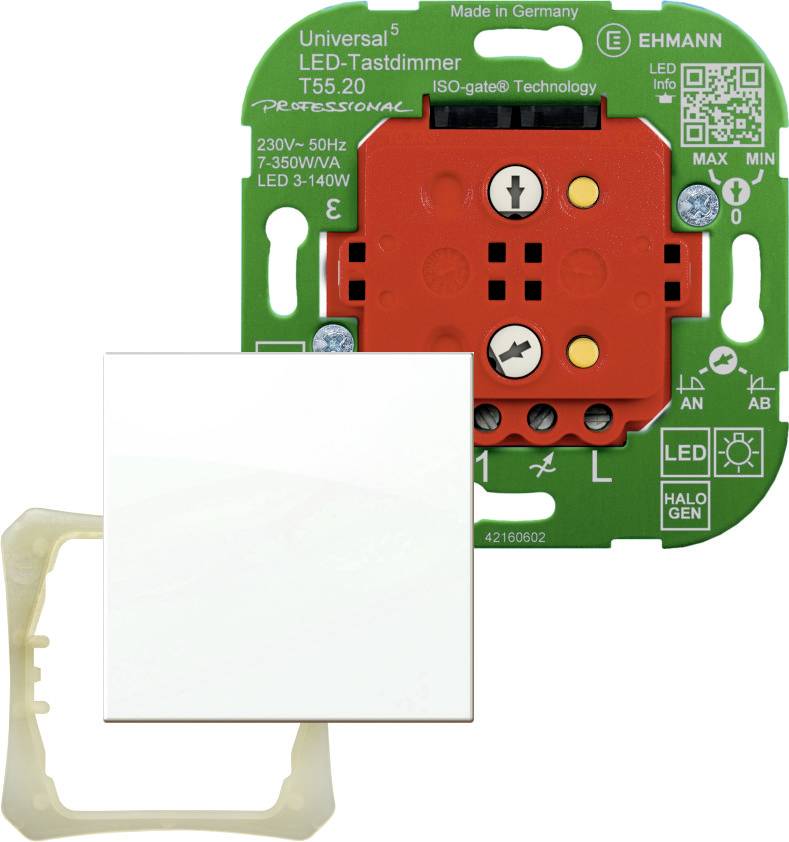

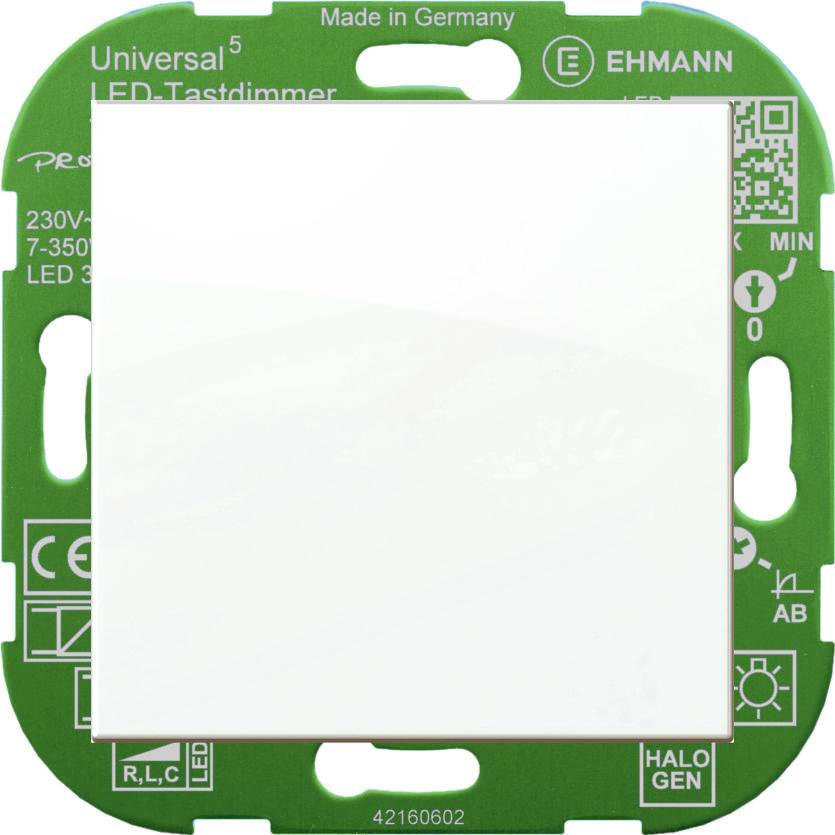

Universal LED touch dimmer T55.20, 3-140W
- Operating voltage 230 VPower 7 - 350 W.LED power 2 - 140 W
- This text is machine translated.
Technical specifications
- Product type
Universal dimmer
- Operating voltage
230 V
- Power rating (min.)
3 W
- Power rating (max.)
350 W
- Suitable for light bulbs
Light bulb
LED bulb
- Switching capacity (LED)
140 W
- Switching capacity (light bulbs)
350 W
- Factory colour
White
- Dim
(L x W x H) 71 x 71 x 43 mm
- Length
71 mm
- Width
71 mm
- Height
43 mm
Documents & Downloads
Datasheet
Datasheet 2619470 Ehmann 5592x0000 Universal dimmer Suitable for light bulbs: Light bulb, LED bulb White
User & Safety Instructions
User & Safety Instructions 2619470 Ehmann 5592x0000 Universal dimmer Suitable for light bulbs: Light bulb, LED bulb White
Description
Features

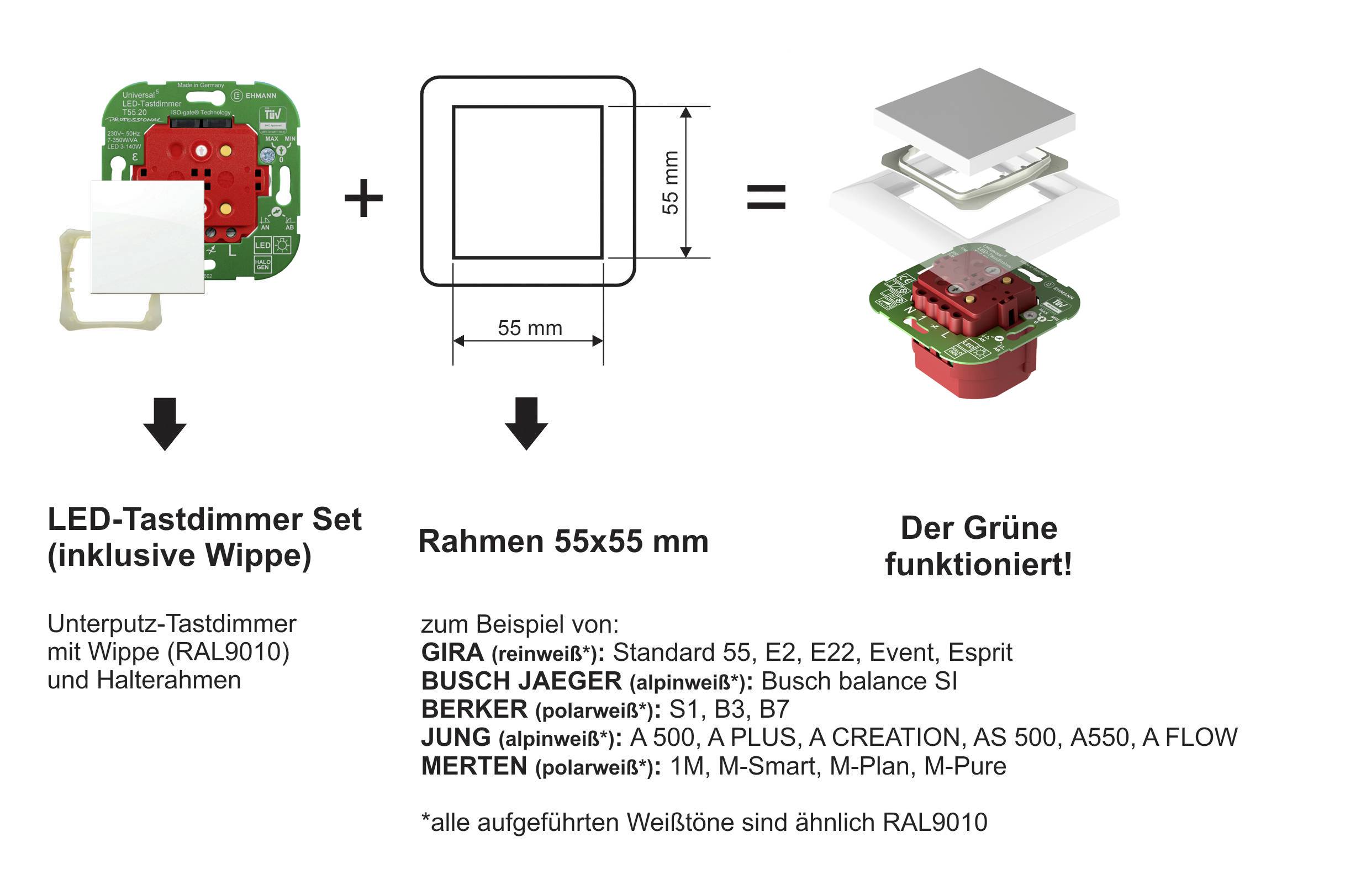

- Powerful LED push-button dimmer for reliable dimming regardless of the manufacturer and type of LEDCompatible with all 55 x 55 mm switch programs Selectable dimming principle setting (phase angle or phase section), can be switched manuallyExtension capable, pushbutton as dimmable extensions Memory function – saves the last set brightness valueAdditional functions – night mode (minimum brightness) and max mode ISO-gate® Technology – for maximum power spectrum and LED compatibilitySilent Technology – completely noiseless operation Easy setting of the min. and max. brightness as an optimization possibility for flicker-free dimming2 or 3-wire connection possible, automatic neutral wire detection (N-wire can be connected optionally)Electronic short-circuit and overload protection and over-temperature protection with automatic reactivationWorking principle: Phase angle / phase sectionPress: Push-button dimmerConnection: Screw terminals up to 2 x 2.5 mm² (rigid)Over temperature protection: Self-resetting temperature switchShort circuit/overload protection: ElectronicStandby consumption < : 0.5 W.Rocker: 55 x 55mm pure white/polar white similar to RAL 9010
Scope of delivery

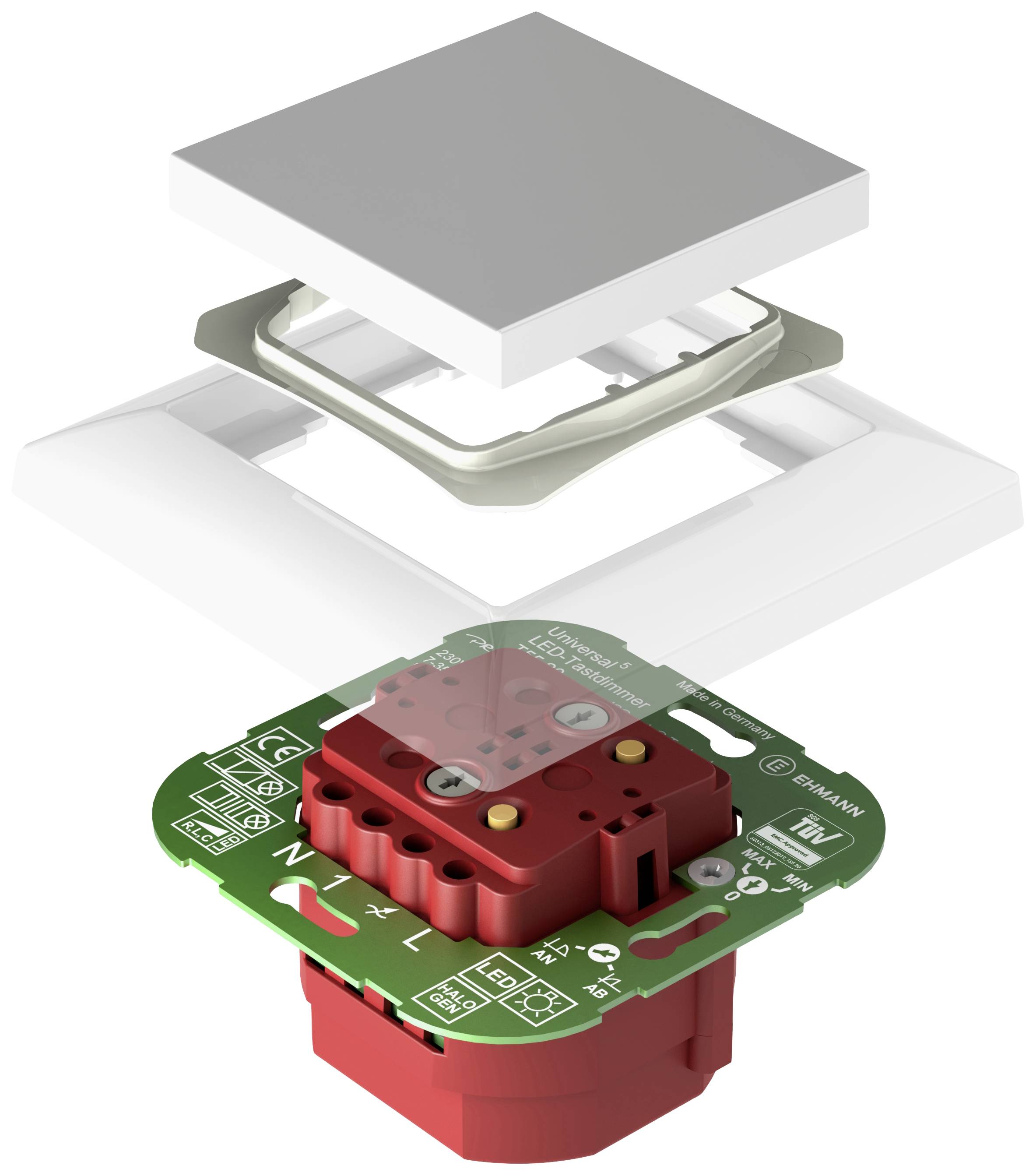

- Universal LED touch dimmer T55.20, 3-140W
- Holder frame
- 55 mm rocker
- User manual.
Hints
Suitable for dimmable LEDs, LED driver, filament LEDs, incandescent and HV and LV halogen lamps.Important! For inductive loads, the dimmer must be operated in phase control and without neutral conductor!
