Name: EIZO ColorEdge CG3100X LCD EEC G (A - G) 77.5 cm (30.5 inch) 4096 x 2160 p 17:9 15 ms IPS LCD
Brand: EIZO
SKU: 3843181

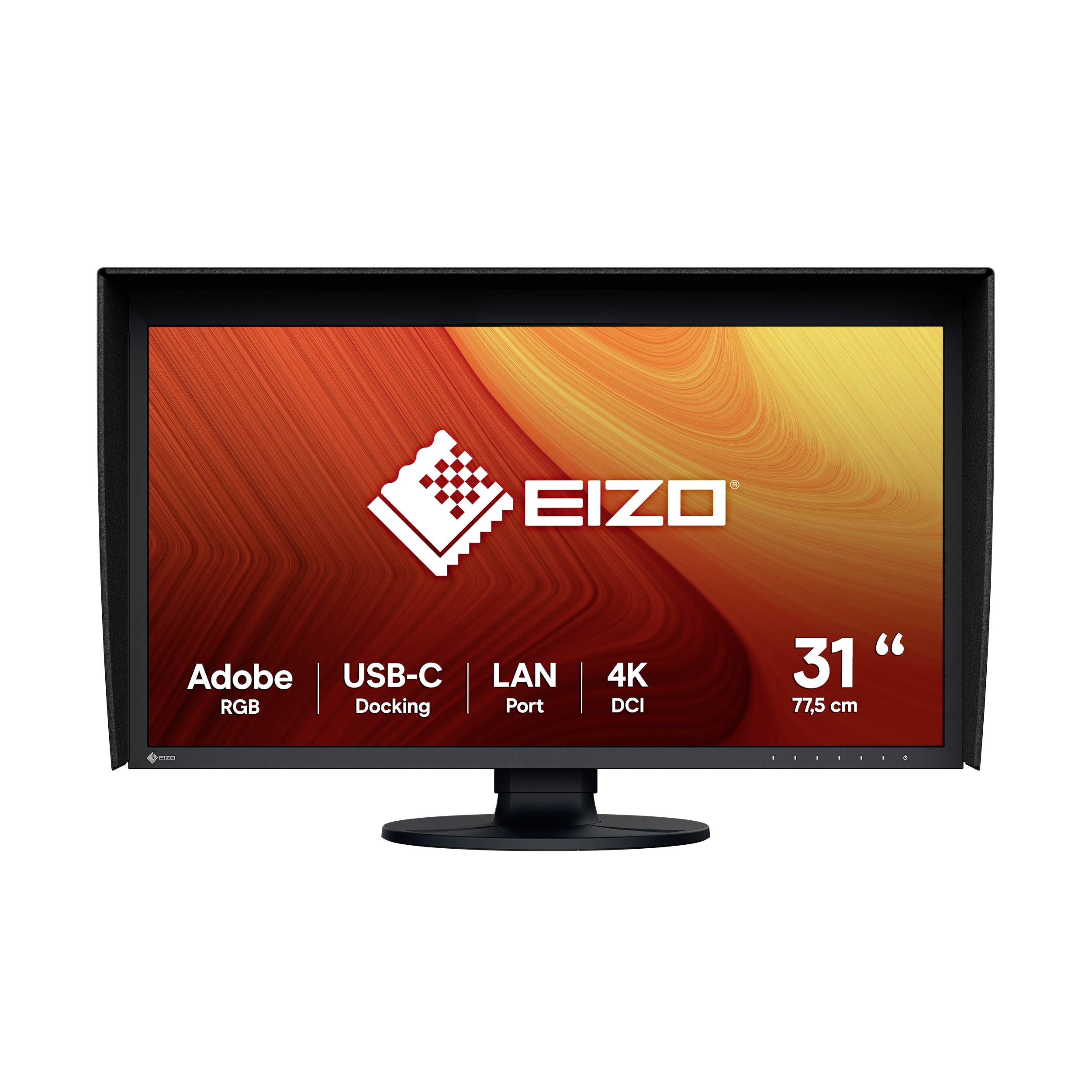

EIZO 31-inch 4K DCI monitor with Adobe RGB, USB-C docking, and LAN port features shown on screen.<br>

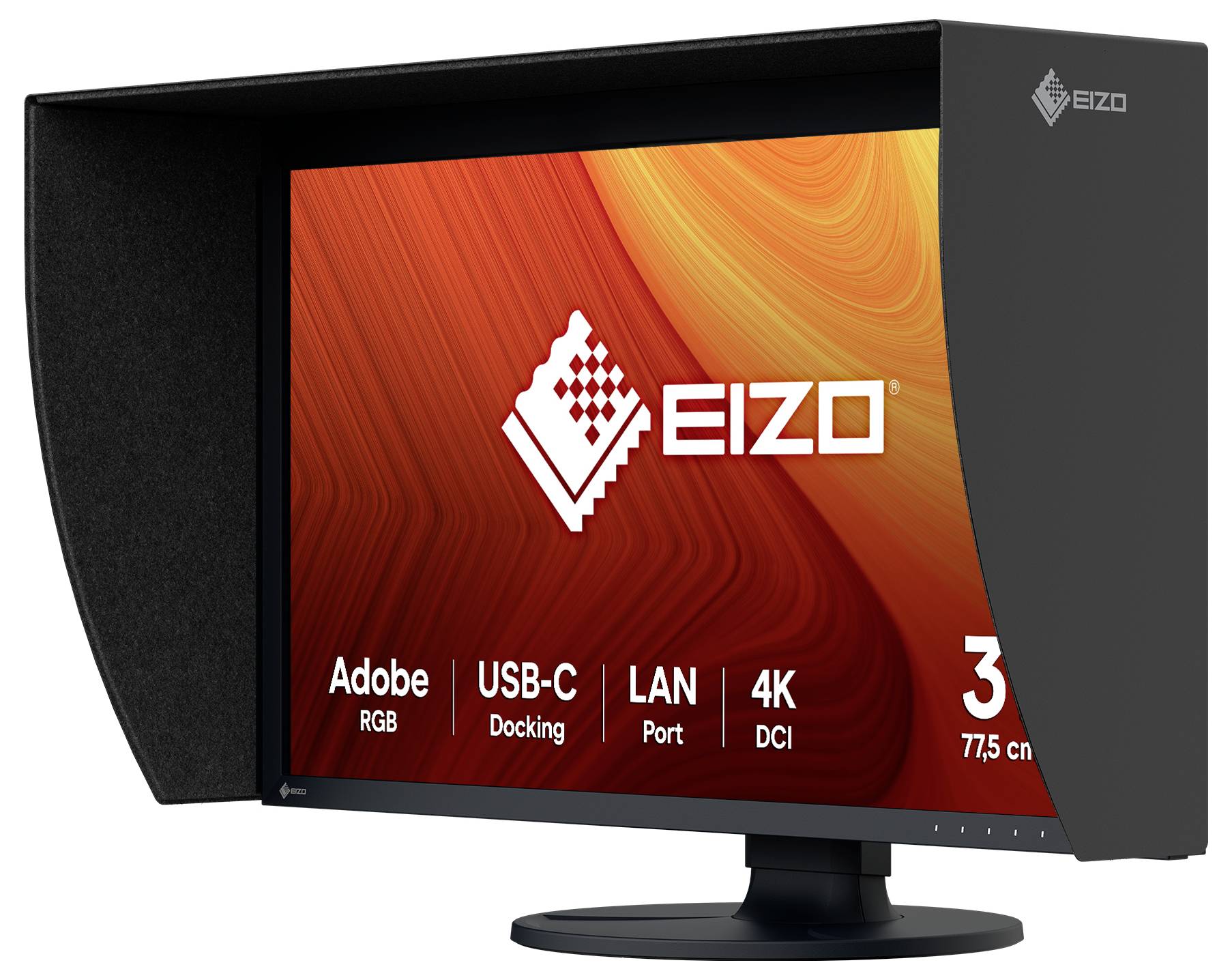

EIZO 4K monitor with hood, showing 'Adobe RGB', 'USB-C Docking', 'LAN Port', and '4K DCI' on the screen.<br>

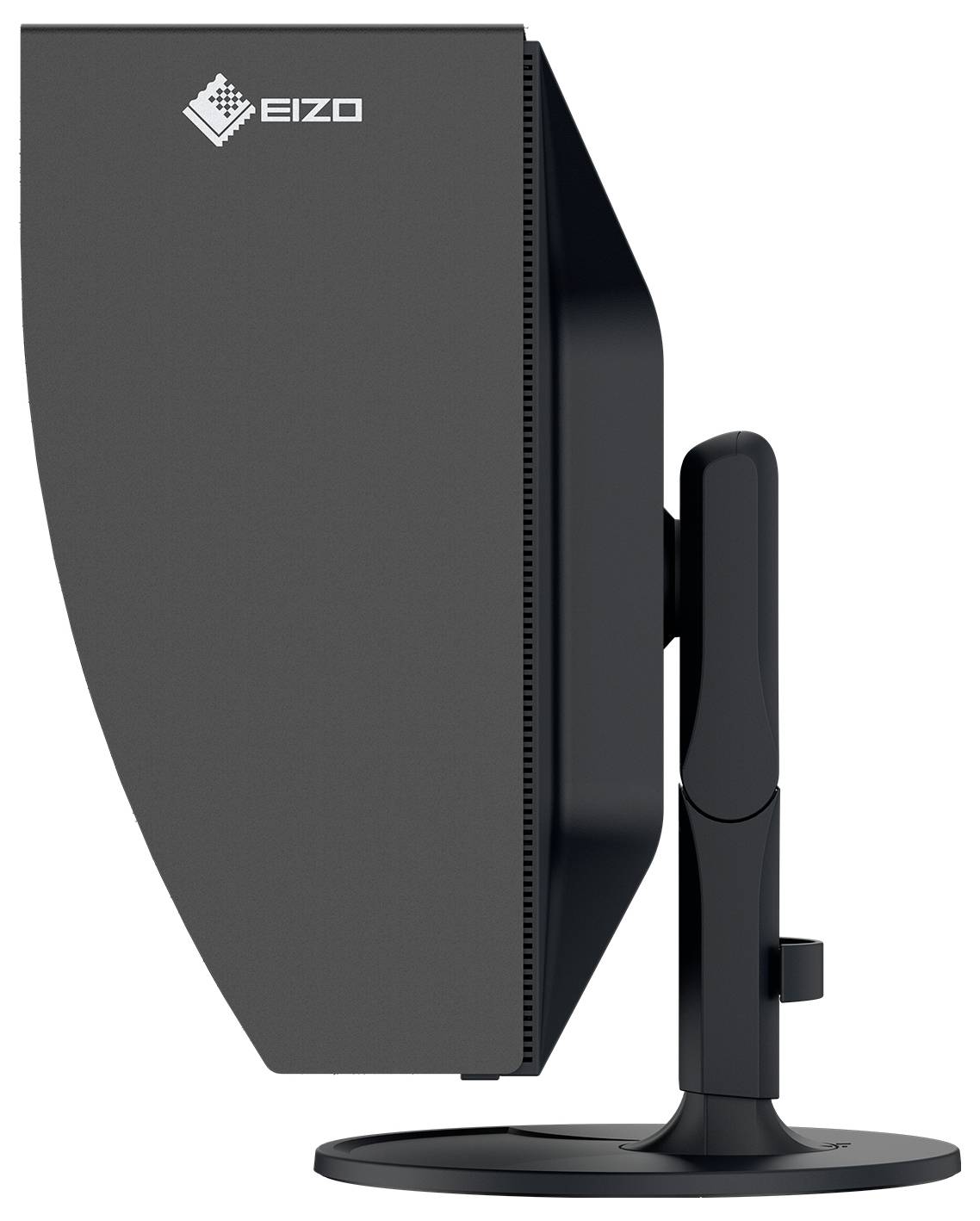

Side view of an EIZO flat-panel monitor with a curved back and adjustable stand on a round base.<br>

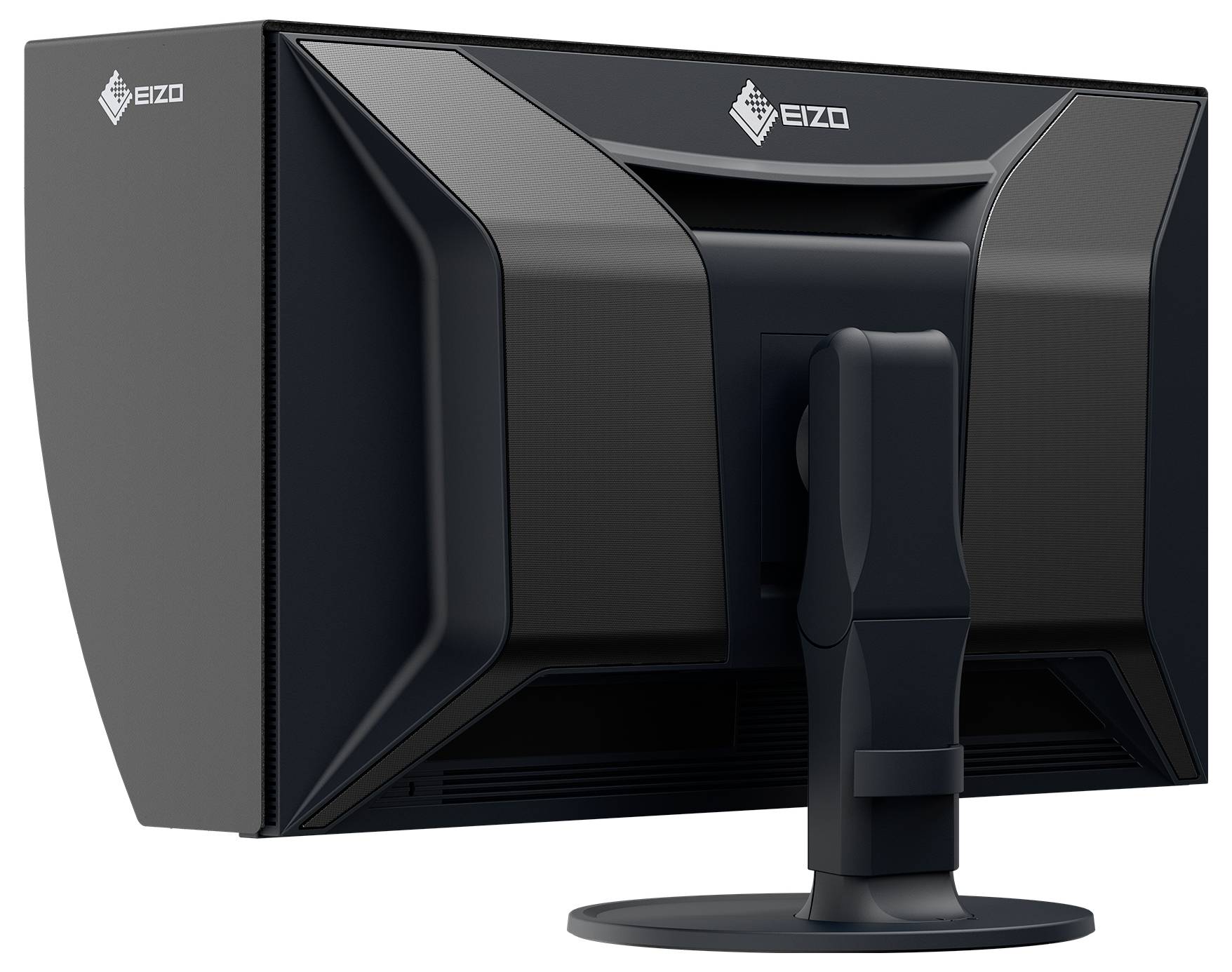

Rear view of a black EIZO computer monitor on a stand, showing the monitor’s thick back panel and central mount.

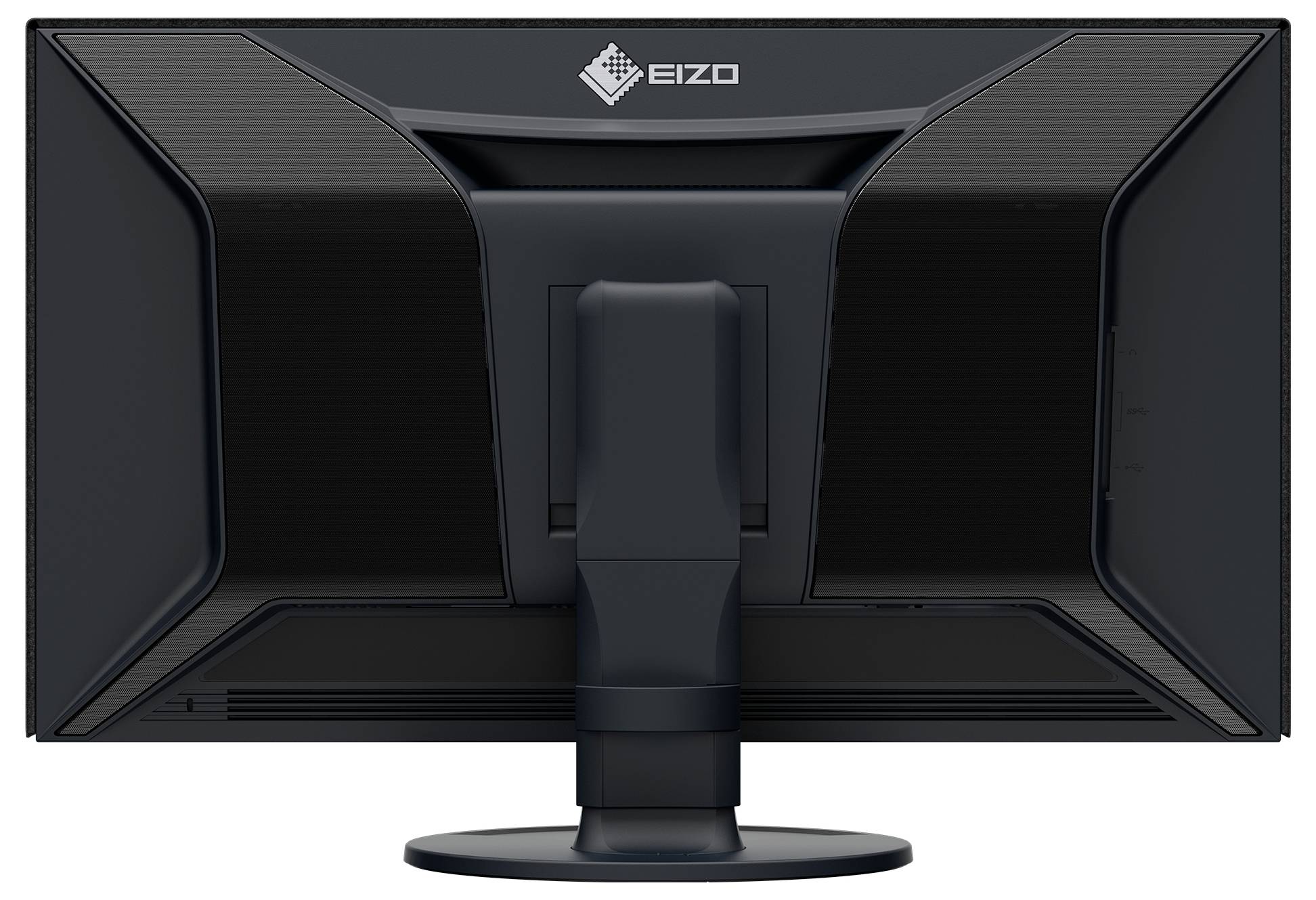

Rear view of an EIZO computer monitor with a central stand and a dark, angular back panel.

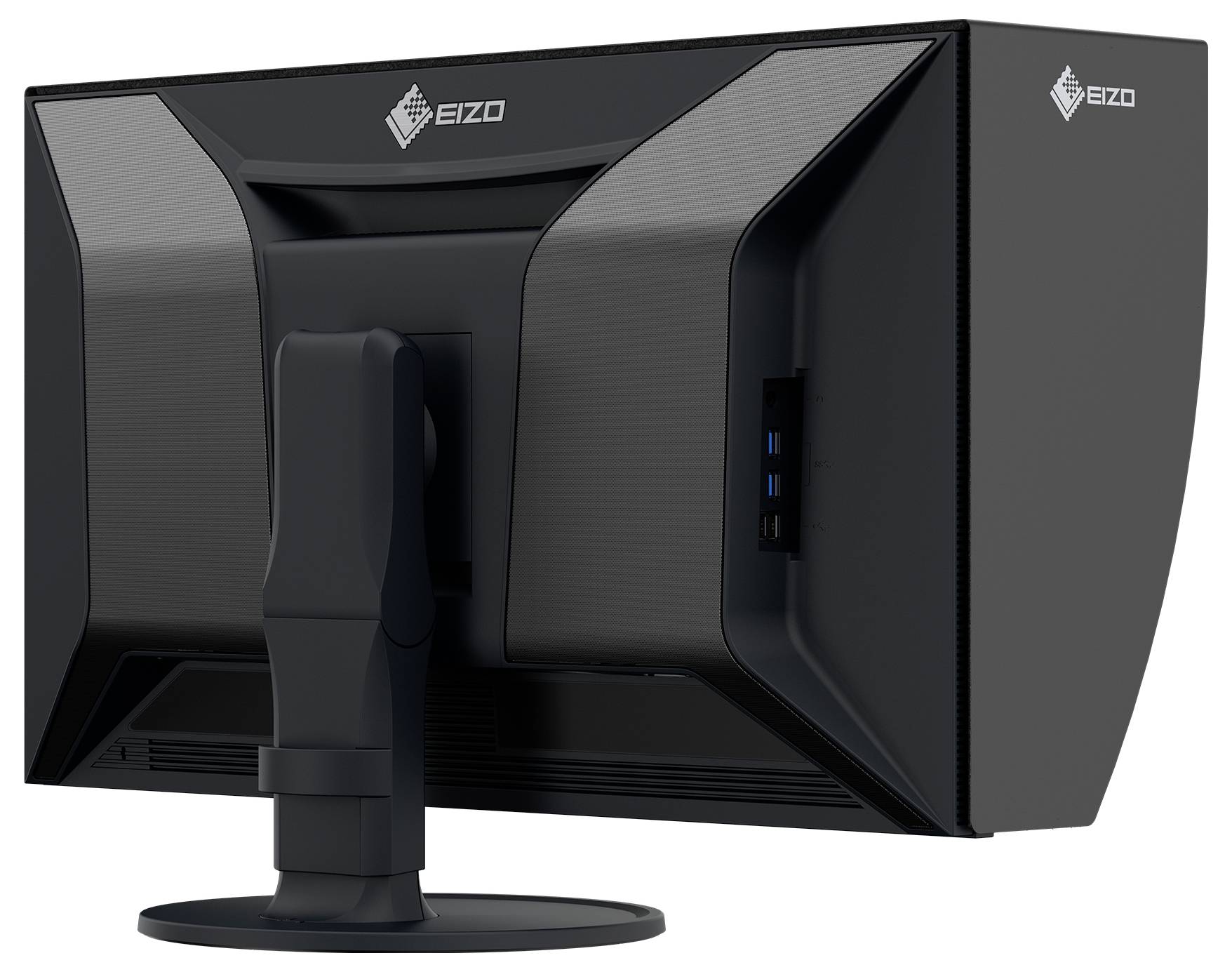

Rear view of an Eizo computer monitor with a black stand and side USB ports on a white background.

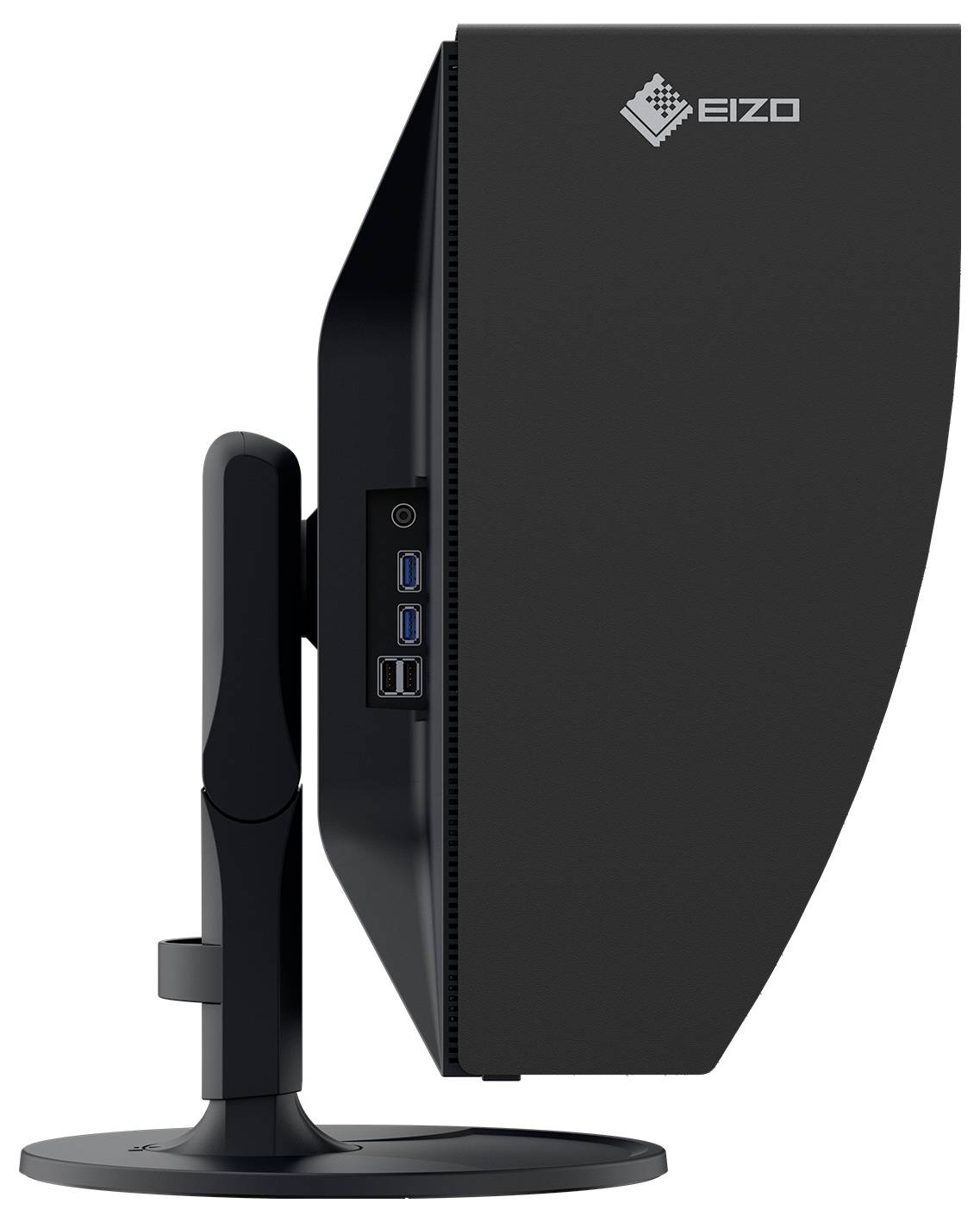

Side view of an EIZO computer monitor on a stand, showing the rear ports and sleek black design.<br>

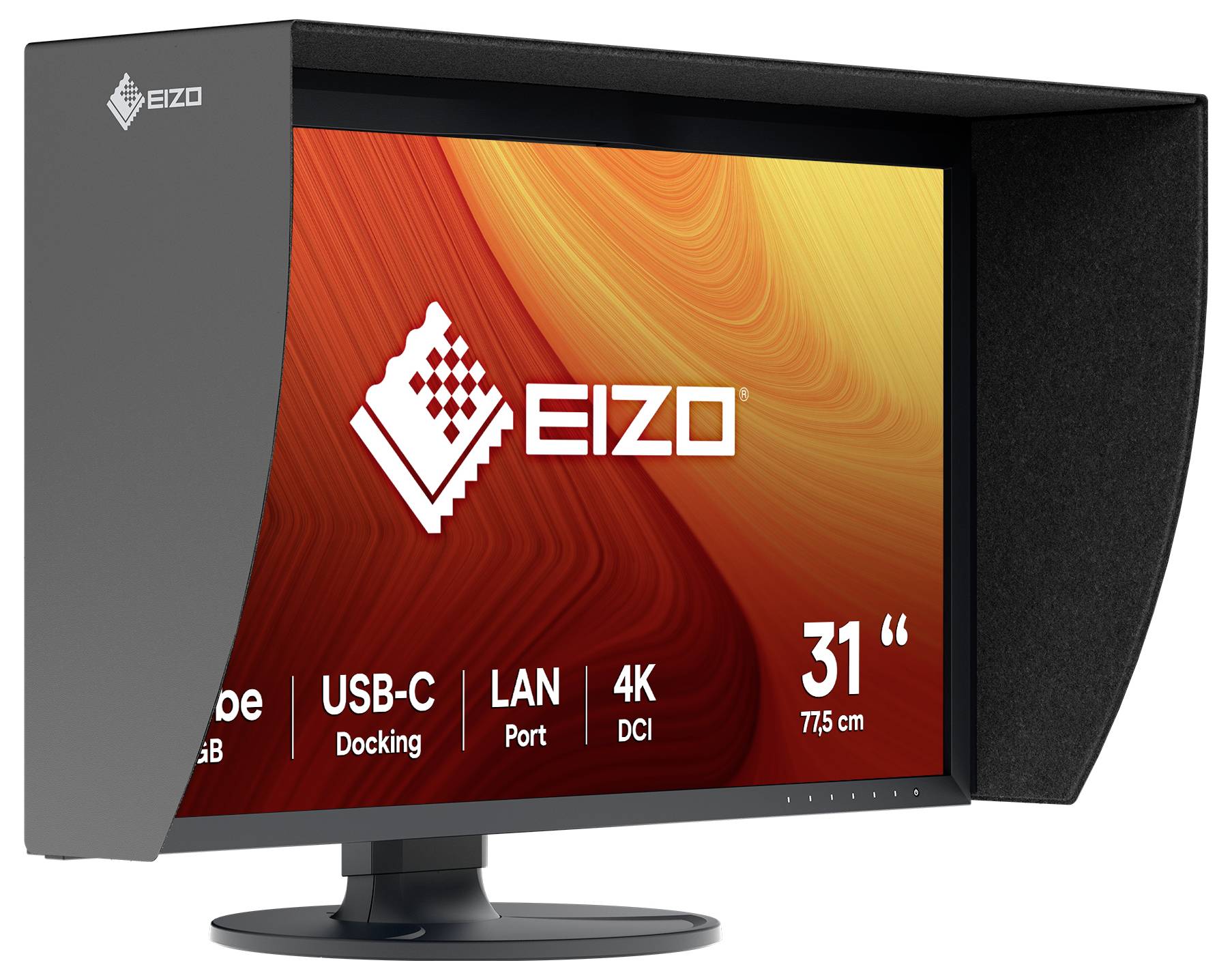

EIZO 31-inch 4K monitor with hood, showing 'USB-C Docking', 'LAN Port', and '4K DCI' features.<br>

1/8

Product data sheet

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EIZO ColorEdge CG3100X LCD

Screen size 77.5 cm (30.5 inch) , 4096 x 2160 p;Response time: 15 msEnergy efficiency rating (calc): G (A - G)
Interfaces: Tiltable

Technical specifications

HD TYPE 4K DCI
Screen technology: LCD
Contrast ratio: 1800:1
0.167 x 0.167 mm pixel distance
Pixel density: 152 ppi
Market positioning: Photo processing
Swivel angle range 0 - 344 °
Tilt angle range -5 - 35°
Energy efficiency rating (HDR): Not available

Product type: LCD

Resolution (max.): 4096 x 2160 p

Screen size diagonal (cm): 77.5 cm

Screen size diagonal (inches): 30.5 inch

Screen size diagonal (inches): 30 inch

Image format: 17:9

Panel technology: IPS LCD

Touchscreen (display): No

Frame rate: 60 Hz

Response time: 15 ms

Brightness: 500 cd/m²

Factory colour: Black

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

Features: Tiltable

Power consumption (standby): 0.5 W

Hor. viewing angle: 178°

Vertical viewing angle: 178°

HDR support: Yes

Width: 721 mm

Height: 428.1 mm

Depth: 290 mm

Weight: 12.3 kg

Power supply (details): 100-240 V

Dim: (W x H x D) 721 x 428.1 x 290 mm

Display size: 30 inch - 32 inch

Display type: 60 Hz

: G (A - G)

Display: 77.5 cm (30.5 inch)

Display (cm): 77.5 cm

Power consumption (off): 0.3 W

Power consumption (ON): 86 W

Device depth (without stand): 87.2 mm

Display properties: IPS

Display resolution: 4096 x 2160 Pixel

HDCP: Yes

Charging method (Power Delivery): with USB Power Delivery

Height (without base): 413.9 mm

10/100/1000 Mbps ports: 1 x

Type: internal

: 100 x 100 mm

UKCA: yes

Anti-glare screen: yes

Stand included: yes

Operating temperature (T-T): 0 - 35 °C

Headphone out: yes

Weight (without stand): 8.9 kg

Width (without stand): 721 mm

Ethernet LAN: yes

Cable lock slot: yes

Storage relative humidity (H-H): 10 - 90 %

Colour depth: 10 Bit

VESA mounting: yes

Height adjustment: yes

NVIDIA G-SYNC: no

Built-in USB hub: yes

Number of upstream ports: 2

USB Type-A downstream ports quantity: 4

Built-in speaker(s): no

Adjustable height (max): 15.5 cm

Digital horizontal frequency: 25 - 137 kHz

Digital vertical frequency: 23 - 61 Hz

sRGB coverage (typical): 100 %

Adobe RGB coverage: 97 %

AMD FreeSync: no

On Screen Display (OSD): yes

USB Type-C DisplayPort Alternate Mode: yes

Horizontal scan range: 15 - 136 kHz

Flicker-free technology: yes

USB Power Delivery up to: 94 W

Sun hood included: yes

Quick start guide: yes

DCI-P3 coverage: 99 %

Number of USB Type-C upstream ports quantity: 1

Number of USB Type-B upstream ports quantity: 1

Energy consumption (SDR) per 1000 hours: 51.9 kWh

Hardware calibration: yes

Built-in calibration sensor: yes

: 24

HDMI: yes

LED backlight: yes

Operating relative humidity (H-H): 20 - 80 %

Swivelling: yes

Storage temperature (T-T): -20 - 60 °C

Built-in camera: no

Tilt adjustment: yes

Vertical scan range: 23 - 61 Hz

Viewable size, horizontal: 68.6 cm

Power consumption (max): 270 W

Viewable size, vertical: 36.2 cm

Built-in KVM switch: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3843181 EIZO ColorEdge CG3100X LCD EEC G (A - G) 77.5 cm (30.5 inch) 4096 x 2160 p 17:9 15 ms IPS LCD

Description

The ColorEdge CG3100X is the top model of the ColorEdge series. With a generous screen size of 30.5" and DCI 4K resolution (4096 × 2160 pixels), it meets all the requirements of professional users in film post-production, color grading and image editing. With pre-installed PQ and HLG HDR presets and a maximum brightness of 500 cd/m², the CG3100X can be seamlessly integrated into modern HDR workflows. Photographers, content creators and digital artists benefit from the generous 17:9 format, which offers plenty of creative space with a pin sharp detail resolution of 152 ppi. The large color space cover for standard color spaces such as Rec709, Rec2020, DCI-P3 and AdobeRGB as well as the 24-bit 3D LUT ensure a realistic and high-contrast color display with maximum precision. The CG3100X also impresses in matters of connectivity: Via USB-C laptops can be connected with just one cable - including picture and data transfer as well as power supply with up to 94 watt. In addition, a high-performance HDMI connection is also available along with a DisplayPort connector which supports even uncompressed DCI-4K material (4:4:4) in 12 bit with up to 60 Hz - Ideal for HDMI-based production environments. An integrated calibration sensor allows effortless, automatic self-calibration, while the RJ45 LAN-connection, the USB-hub and the accompanying light-protection screen round off the professional equipment of the CG3100X.

This text is machine translated.

Features

30.5" wide gamut LCD with 4096 x 2160 pixels (DCI-4K)
Wide color range with 99% DCI-P3 and 97% AdobeRGB color space cover
500 cd/m² maximum brightness, contrast 1800:1 thanks to True Black technology
10-bit display, 24-bit 3D look-up table and integrated sensor for fully automatic self-calibration
Digital Uniformity equalizer for perfect light density distribution and color purity
HDR Targets for HDR-HLG and HDR-PQ-EOTF
USB-C input (DisplayPort signal and up to 94 watt Power delivery)
HDMI input (incl. FRL), supports 12 bit 4:4:4 in DCI-4K, DisplayPort up to 10 bit 4:4:4
RJ-45 LAN port, USB hub with four USB downstream ports, two 5 Gbps (USB 3) and two USB 2 ports

Scope of delivery

Cable
Quick guide.
