Elektrobock 8594012226159 PT712 Indoor thermostat Plug & Play 7 day mode 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

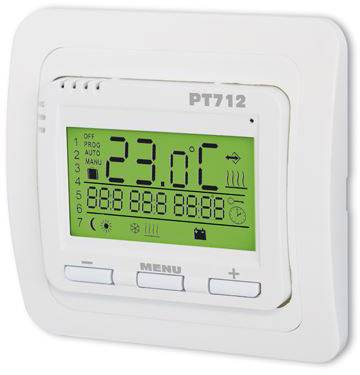

PT712 digital thermostat
- 2 week programs with 6 temperature changes per day
- Display with background lighting
Technical specifications
- Protection type IP20
- II protection rating
- Product type
Indoor thermostat
- Operation type
electronical
- Switching cycle
7 day mode
- Max. temperature setting
99.5 °C
- Temperature settings
3 up to 99.5 °C
- Frost protection
Yes
- Display
Yes
- Compatible with
Underfloor heating control
- Mounting type
Plug & Play
- Operating voltage
230 V
- Hysteresis
0.1 -5 °C
- Factory colour
White
- Min. temperature setting
3 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1874691 Elektrobock 8594012226159 PT712 Indoor thermostat Plug & Play 7 day mode 1 pc(s)
Description
Serves to control the electric floor heating (heating cable, mats, film). It enables a temperature control after the room temperature with a possibility to control the floor temperature. After the use of the thermostat, you can achieve reduction of heating costs and thermal comfort at the desired time.
This text is machine translated.
This text is machine translated.
Features
- Hysteresis – setting possible
- Sets the minimum time for switching on the heat source
- OPERATING MODULES: AUTO/MANU/OFF/HOLIDAY
- Sets the maximum limit value for the floor temperature
- Rapid change of the required temperature
- Information of operating hours
- Keypad lock
- Power reserve in case of power failure more than 100 hours
- Simple installation - system PLUG-IN
- Elegant design in the series of switches VENUS
- Frost protection temperature 3°C.
- Output max. 230 V, 12A (potential-free contacts)
Scope of delivery
- Digital Thermostat
- User manual.
