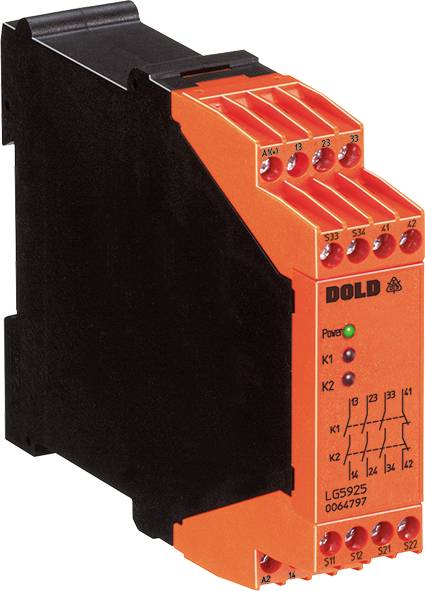

Elevator control safety module LG5925.03/034 Dold Operating voltage: 24 V DC/AC 3 makers, 1 breaker 1 pc(s)
Packaging type
Piece
Product type
Elevator control safety module
Connector
Screw terminals
Operating voltage
24 V DC/AC
Type
LG5925.03/034
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration: 3 closer, 1 opener
- Variant: According to EU directive 2014/33/EU on lifts
- Installation width 22.5 mm.
- LG 5925/034 device type
- Type of terminal: Fixed screw terminals
- NOMINAL VOLTAGE AC/DC 24 V
- Cat. / PL according to EN ISO 13849-1:4/e
- SIL CL ACCORDING TO IEC/EN 62061: 3
- Thermal current LTH max. 5 A
- 1- / 2-channel: 1, 2
- Cross-circuit detection: Yes
- Connection technology: Screw terminals, removable screw terminals, removable spring cage terminals
- Output contacts max. 1 NC, 3 NO
- Packaging type
Piece
- Product type
Elevator control safety module
- Type
LG5925.03/034
- Connector
Screw terminals
- Operating voltage
24 V DC/AC
- Contact type
3 makers
1 breaker
- Switching current (max.)
5 A
- Performance level
PL e
- Safety integrity level
SILCL 3
- Safety rating
4
- Width
22.5 mm
- Content
1 pc(s)
- Nominal voltage
24 V DC/AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980079 Elevator control safety module LG5925.03/034 Dold Operating voltage: 24 V DC/AC 3 makers, 1 breaker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2980079 Elevator control safety module LG5925.03/034 Dold Operating voltage: 24 V DC/AC 3 makers, 1 breaker 1 pc(s)
Description
Bridging the door and lock switch during the infeed and resetting with open doors in accordance with EN81-20/-50 in passenger and load elevators.
Benefits:
For elevators according to EN 81-20/-50
This text is machine translated.
Benefits:
For elevators according to EN 81-20/-50
