1/2

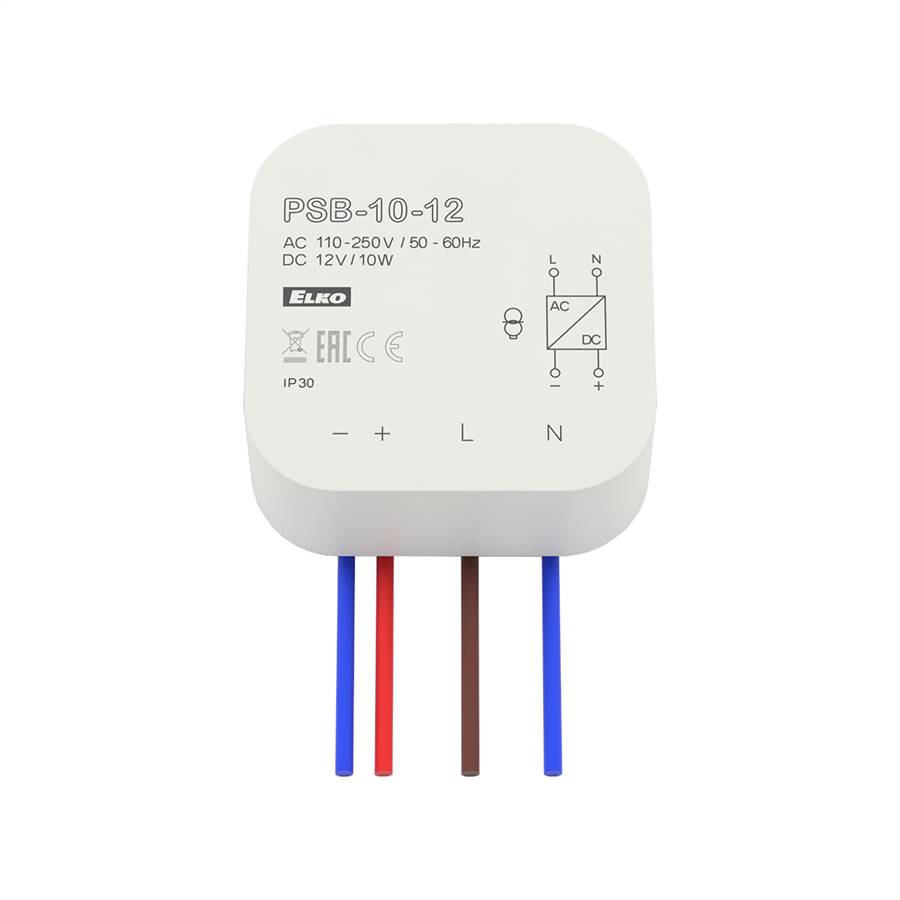

ELKO EP PSB-10 PSU - 12 V DC/0.8 A 10 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- OUTPUT VOLTAGE DC 12 V; DC 24 V
- Max. LOAD 0.8 A/10 W; 0.4 A/10 W
- Case: BOX
- Supply voltage (frequency) AC 110-250 V (50/60 Hz)
- Protective circuit: Short circuit, current and temperature overload (from 120% of the rated power)
- Dimensions 49 x 49 x 21 mm (1.9˝x 1.9˝x 0.8˝)
- Product type
PSU
- Used at
Internal
10 W
- Output voltage
12 V DC
- Max. output current
0.8 A
- Output current (max.) - rounded
800 mA
- Dim
(L x W x H) 49 x 49 x 21 mm
- Content
1 pc(s)
- PSU features
Regulated
- Width
49 mm
- Height
21 mm
- Length
49 mm
- Type
PSB-10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3736249 ELKO EP PSB-10 PSU - 12 V DC/0.8 A 10 W
User & Safety Instructions
User & Safety Instructions 3736249 ELKO EP PSB-10 PSU - 12 V DC/0.8 A 10 W
Description
Power supplies PSB-10
switched-mode power supplies with fixed output voltage for installation in an installation socket.PSB-10-12 - stabilized power supply 12V/10W.
PSB-10-24 - stabilized power supply 24V/10W.
The output current is limited by an electronic fuse. When the maximum current is exceeded, the device switches off and on again after a short time interval.
Temperature protection - if the temperature is exceeded, the device switches off and on again after it has cooled down.
This text is machine translated.
switched-mode power supplies with fixed output voltage for installation in an installation socket.PSB-10-12 - stabilized power supply 12V/10W.
PSB-10-24 - stabilized power supply 24V/10W.
The output current is limited by an electronic fuse. When the maximum current is exceeded, the device switches off and on again after a short time interval.
Temperature protection - if the temperature is exceeded, the device switches off and on again after it has cooled down.
This text is machine translated.
Features
- Power supplies - Flush mounting - Stabilised 10W DC 12V
Scope of delivery
- 1 x ELKO EPPSB-10-12
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
