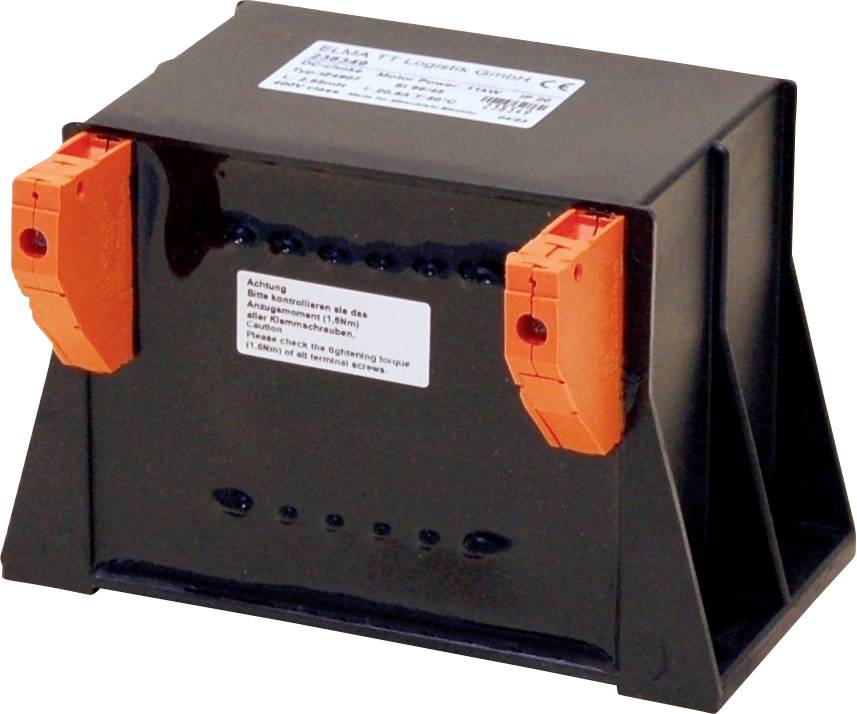

elma TT IZ4906 IZ4906 Choke 1-phase 3.55 mH 14 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Choke
Inductance (L)
3.55 mH
Max. temperature
40 °C
Features
1-phase
Frequency
50 kHz
Datasheet (PDF)
Total (€ 97.99 / piece)
€ 97.99
incl. VAT
14-day return policy included
Highlights & Details
Choke
- Nominal voltage 400 V
- Smoothing of the DC link current
- To reduce net reactions (harmonic)
- For increasing the degree of efficiency and interference suppression
- Installation with a frequency converter
- Temperature class Ta40/B
Technical specifications
- Protection class IP23
- Product type
Choke
- Features
1-phase
- Inductance (L)
3.55 mH
- Frequency
50 kHz
- Nominal voltage
400 V
- Nominal current
14 A
- Length
120 mm
- Width
100 mm
- Height
75 mm
- Max. temperature
40 °C
- Weight
2.3 kg
- IEC climate class
Ta40/B
- Content
1 pc(s)
- Dim
(L x W x H) 120 x 100 x 75 mm
- RoHS-compliant
Yes
- Type
IZ4906
Documents & Downloads
Datasheet
Datasheet 3532844 elma TT IZ4906 IZ4906 Choke 1-phase 3.55 mH 14 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3532844 elma TT IZ4906 IZ4906 Choke 1-phase 3.55 mH 14 A 1 pc(s)
Description
1-phase choke
Complies with EN 61558-2-20
This text is machine translated.
Complies with EN 61558-2-20
This text is machine translated.
