Elmeko 74 DF20 BA N/A M20 x 1.5 M20 x 1.5 PA12, Nylon 1 pc(s)
EAN:
Part number:
Item no:
Product type
Water drain
External thread
M20 x 1.5
Material
PA12
Nylon
Internal thread
M20 x 1.5
Torque
4 Nm
Datasheet (PDF)
Highlights & Details
Elmeko DRAIN-FIT DF-M20-BA - 1 piece

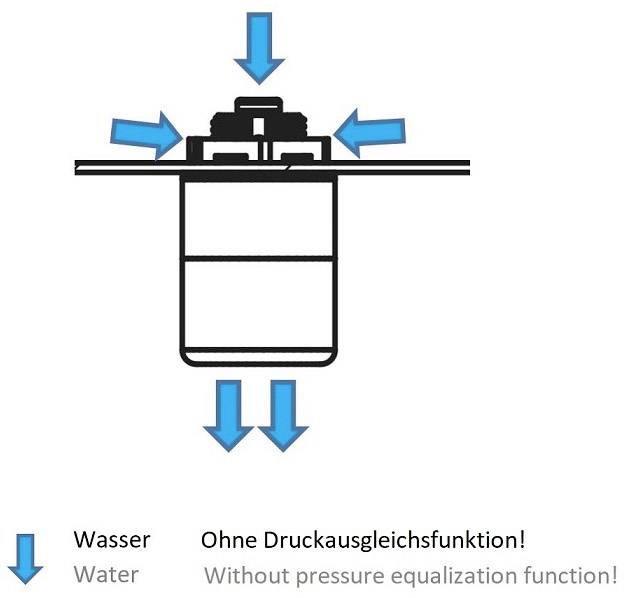

- Simultaneous discharge of condensate from cooling and dehumidifying equipment and from the Housing bottom
- Recommended in combination with pressure compensation elements of the series
- Mounting below the bottom of the housing
- Contains 1 pieces
- This text is machine translated.
Technical specifications
- Product type
Water drain
- External thread
M20 x 1.5
- Internal thread
M20 x 1.5
- Torque
4 Nm
- Material
PA12
Nylon
- Width
32 mm
- Height
55 mm
- Min. temperature
-40 °C
- Max. temperature
+70 °C
IP68
IP69
- Weight
30 g
- Content
1 pc(s)
- Dim
(W x H) 32 mm x 55 mm
- Manufacturer part #
74 DF20 BA
- Type
DF-M20-BA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2307265 Elmeko 74 DF20 BA N/A M20 x 1.5 M20 x 1.5 PA12, Nylon 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2307265 Elmeko 74 DF20 BA N/A M20 x 1.5 M20 x 1.5 PA12, Nylon 1 pc(s)
