Elmeko 74 OF20 BA N/A M20 x 1.5 PA12, Nylon 1 pc(s)

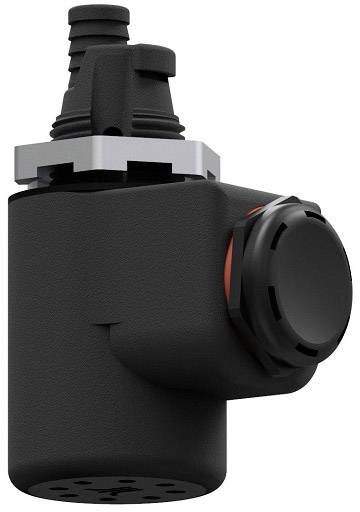

Black, compact component with cable connection and red adjustment knob on the side. Used in technical or industrial applications.

Black, compact component with cable connection and red adjustment knob on the side. Used in technical or industrial applications.

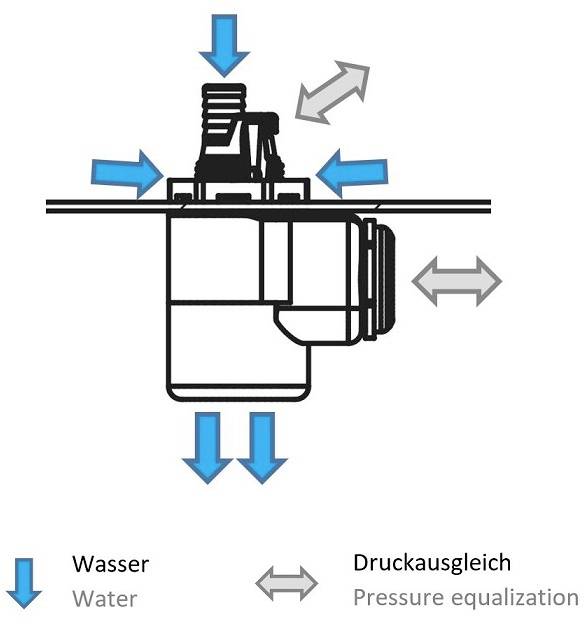

'Diagram of a system for pressure equalisation. Water flows downwards, while pressure equalisation occurs outwards.'

1/2

Product type

Water drain

External thread

M20 x 1.5

Material

PA12

Nylon

Torque

4 Nm

Length

72 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Elmeko OUT-FIT OF-M20-BA - 1 piece

Simultaneous discharge of condensate from cooling and dehumidifying equipment and from the Housing bottom
Pressure compensation function
Mounting below the bottom of the housing
Contains 1 pieces
This text is machine translated.

Technical specifications

Air flow at 70 mbar: 280 l/h.

Product type: Water drain

External thread: M20 x 1.5

Torque: 4 Nm

Material: PA12
Nylon

Length: 72 mm

Width: 51 mm

Height: 32 mm

Min. temperature: -40 °C

Max. temperature: +70 °C

: IP68
IP69

Weight: 42 g

Content: 1 pc(s)

Dim: (L x W x H) 72 x 51 x 32 mm

Manufacturer part #: 74 OF20 BA

Type: OF-M20-BA

UKCA: yes
