Name: Elmeko 74 OF25 W N/A M25 x 1.5 M25 x 1.5 PA12, Nylon 1 pc(s)
Brand: Elmeko
SKU: 2307271

Black, L-shaped device with multiple openings on its underside. It appears to be made of robust material and has technical connections.

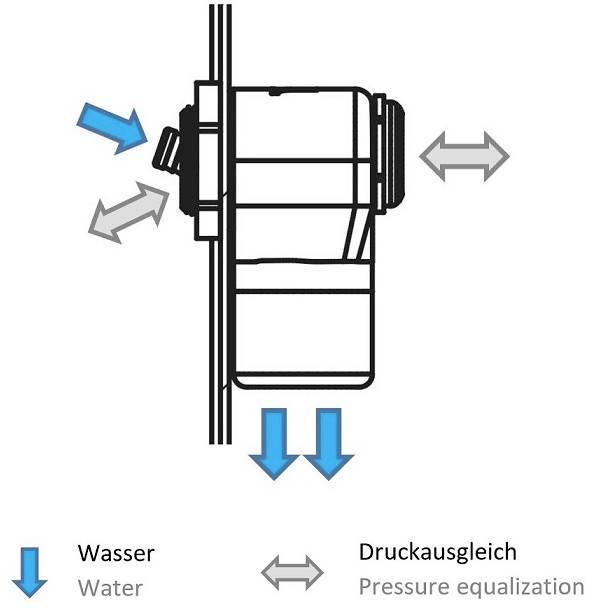

'Diagram of a wall penetration with pressure equalisation and water drainage. Blue arrow indicates water flow, grey arrow indicates pressure equalisation.'

1/2

Product type

Water drain

External thread

M25 x 1.5

Material

PA12

Nylon

Internal thread

M25 x 1.5

Torque

4 Nm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Elmeko OUT-FIT OF-M25-W - 1 piece

Discharge of condensate from cooling and dehumidifying devices
Pressure compensation function
Mounting on the outside in the housing side wall
Contains 1 pieces
This text is machine translated.

Technical specifications

Air flow at 70 mbar: 280 l/h.

Product type: Water drain

External thread: M25 x 1.5

Internal thread: M25 x 1.5

Torque: 4 Nm

Material: PA12
Nylon

Length: 69 mm

Width: 58 mm

Height: 33 mm

Min. temperature: -40 °C

Max. temperature: +70 °C

: IP68
IP69

Weight: 40 g

Content: 1 pc(s)

Dim: (L x W x H) 69 x 58 x 33 mm

Manufacturer part #: 74 OF25 W

Type: OF-M25-W

UKCA: yes
