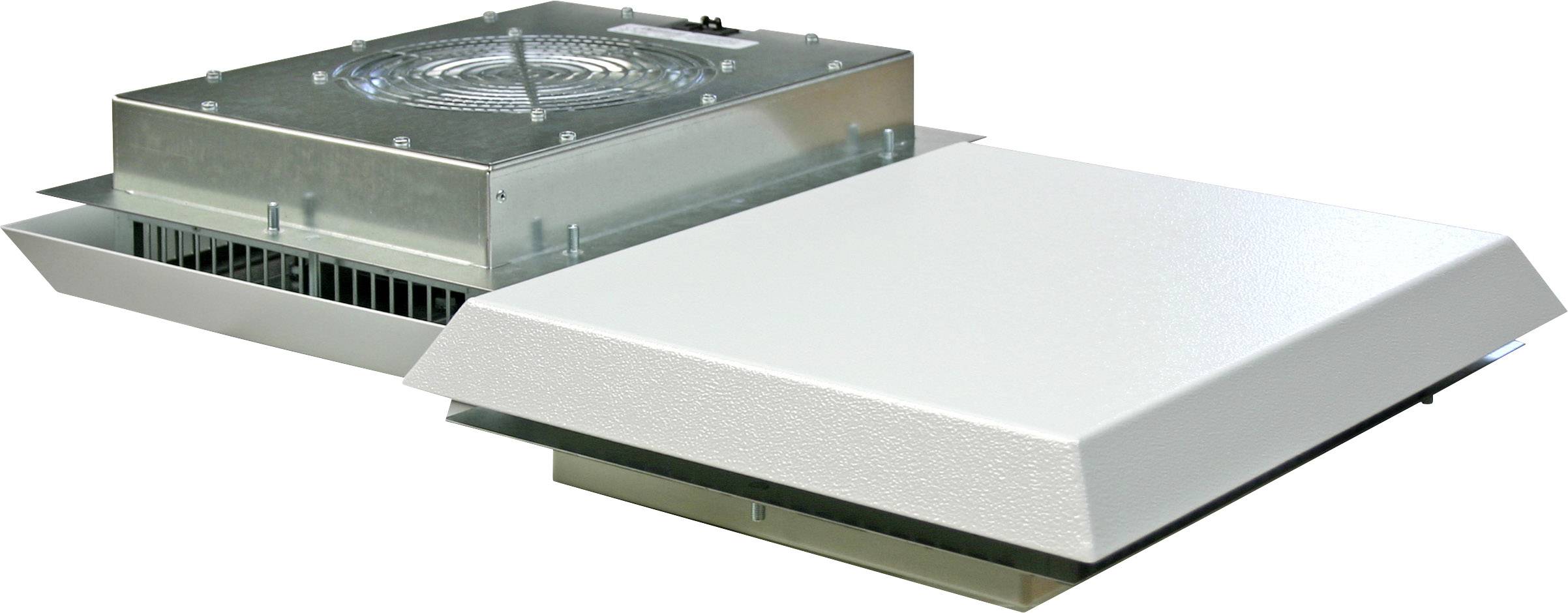

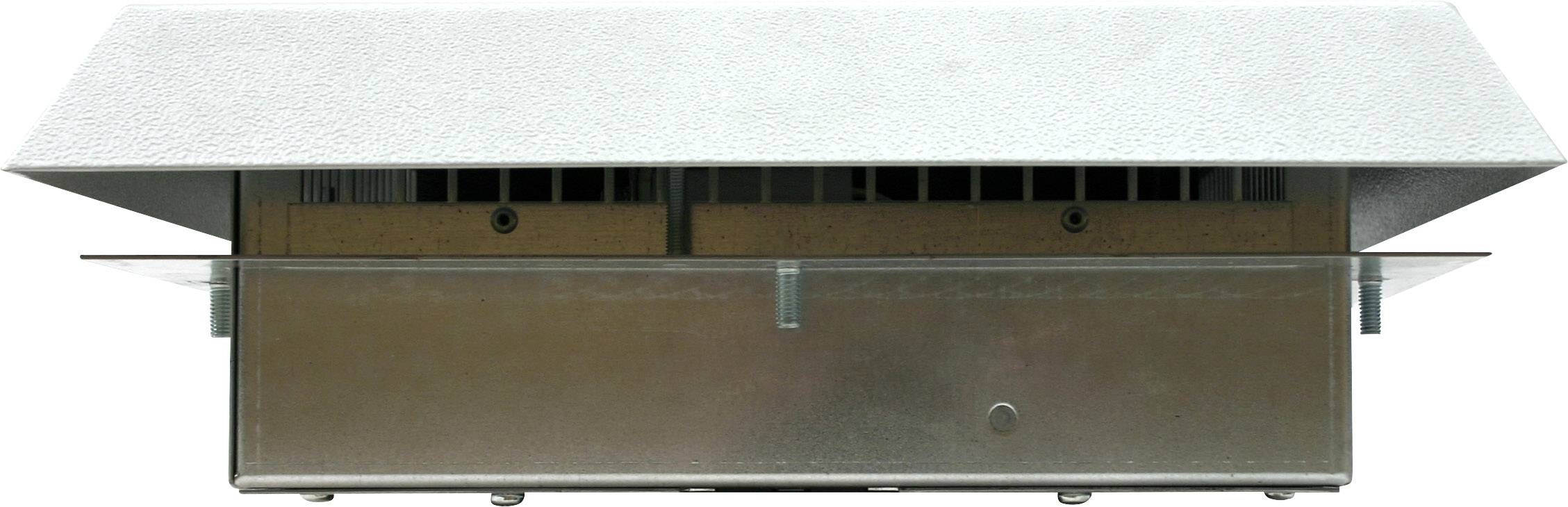

Elmeko DL 420 Top fan 230 V AC 145 W (W x H x D) 340 x 108 x 420 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Top fan
Operating voltage
230 V AC
Power
145 W
Rotational speed
2950 U/min
Noise emission (max.)
76 dBa
Datasheet (PDF)
Technical specifications
- Sound level 73/76 dB (A)
- COLORS RAL 7035, RAL 7032
- Air flow rate with outlet filter: 545 m³/h.
- Mounting cut-out 345 mm x 265 mm
- Product type
Top fan
- Type
DL 420
- Operating voltage
230 V AC
- Max. current consumption
0.64 A
145 W
- Rotational speed
2950 U/min
- Noise emission (max.)
76 dBa
- Air flow rate
690 m³/h
- Factory colour
Light grey
40000 h
- Min. temperature
-10 °C
- Max. temperature
+60 °C
IP54
- Connection
Screw terminal
- Width
340 mm
- Height
108 mm
- Depth
420 mm
- Dim
(W x H x D) 340 x 108 x 420 mm
- Content
1 pc(s)
- UKCA
yes
