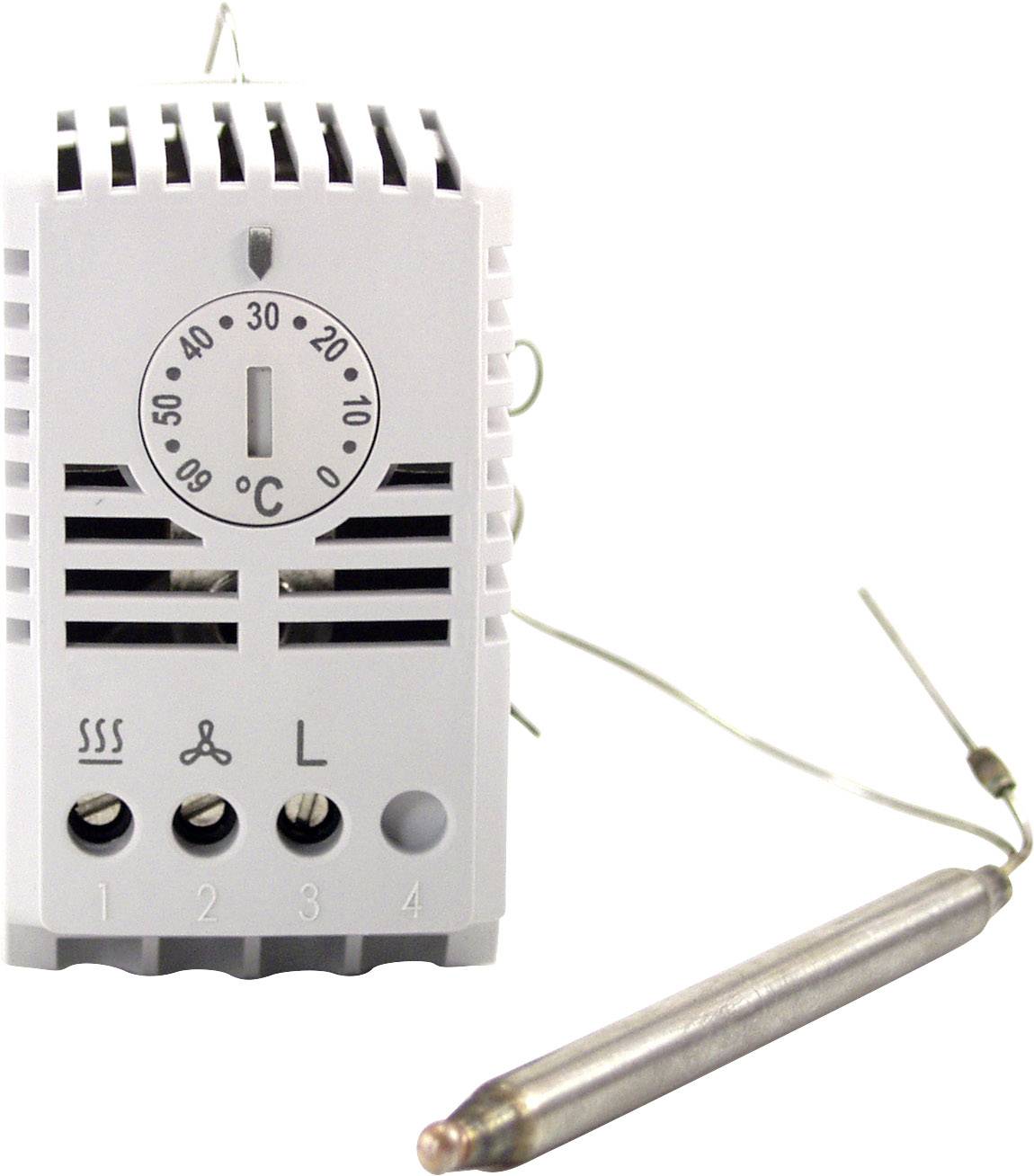

Elmeko Enclosure thermostat TKW 60 1 change-over (L x W x H) 64 x 37 x 46 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screw terminal
Contact type
1 change-over
Type
TKW 60
Adjustment range (min.) (temperature)
0 °C
Datasheet (PDF)
Highlights & Details
- Bimetal temperature controller
- Capillary temperature controller
- Humidity controller (hygrostat)
- For protecting electronic components from heat, cold and moisture
- For switching of fans, heaters or cooling devices or as signal contact
- Connection via screw terminals up to 2.5 mm²
- Mounting on 35 mm mounting rail
- All controllers in the same housing
- This text is machine translated.
Technical specifications
- Switching difference: 3K
- Weight: 0.12 kg
- Sensor element: Capillary
- Product type
Enclosure thermostat
- Type
TKW 60
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
0 °C
- Temperature adjustment range (max.)
+60 °C
- Mounting type
DIN rail
- Contact type
1 change-over
- Length
64 mm
- Width
37 mm
- Height
46 mm
- Dim
(L x W x H) 64 x 37 x 46 mm
- UKCA
yes
