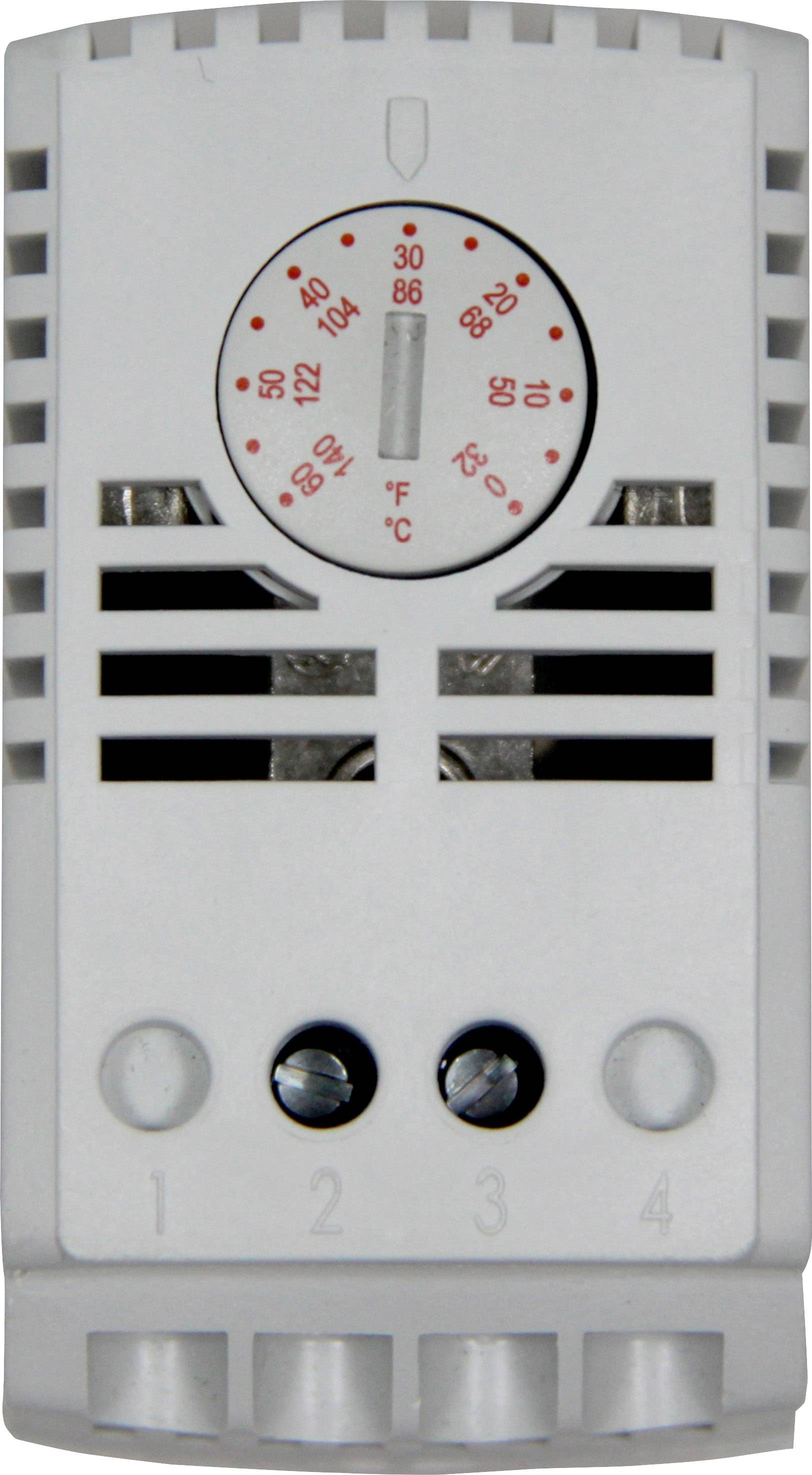

Elmeko Enclosure thermostat TRO 60 1 breaker (L x W x H) 64 x 37 x 46 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screw terminal
Contact type
1 breaker
Type
TRO 60
Adjustment range (min.) (temperature)
0 °C
Datasheet (PDF)
Highlights & Details
- Bimetal temperature controller
- Capillary temperature controller
- Humidity controller (hygrostat)
- For protecting electronic components from heat, cold and moisture
- For switching of fans, heaters or cooling devices or as signal contact
- Connection via screw terminals up to 2.5 mm²
- Mounting on 35 mm mounting rail
- All controllers in the same housing
- This text is machine translated.
Technical specifications
- Replaces old type: TO 60
- difference in switching: 4K - 7K
- Weight: 0.09 kg
- Product type
Enclosure thermostat
- Type
TRO 60
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
0 °C
- Temperature adjustment range (max.)
+60 °C
- Sensor type
Bi-metallic
- Mounting type
DIN rail
- Contact type
1 breaker
- Length
64 mm
- Width
37 mm
- Height
46 mm
- Dim
(L x W x H) 64 x 37 x 46 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2267237 Elmeko Enclosure thermostat TRO 60 1 breaker (L x W x H) 64 x 37 x 46 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2267237 Elmeko Enclosure thermostat TRO 60 1 breaker (L x W x H) 64 x 37 x 46 mm 1 pc(s)
