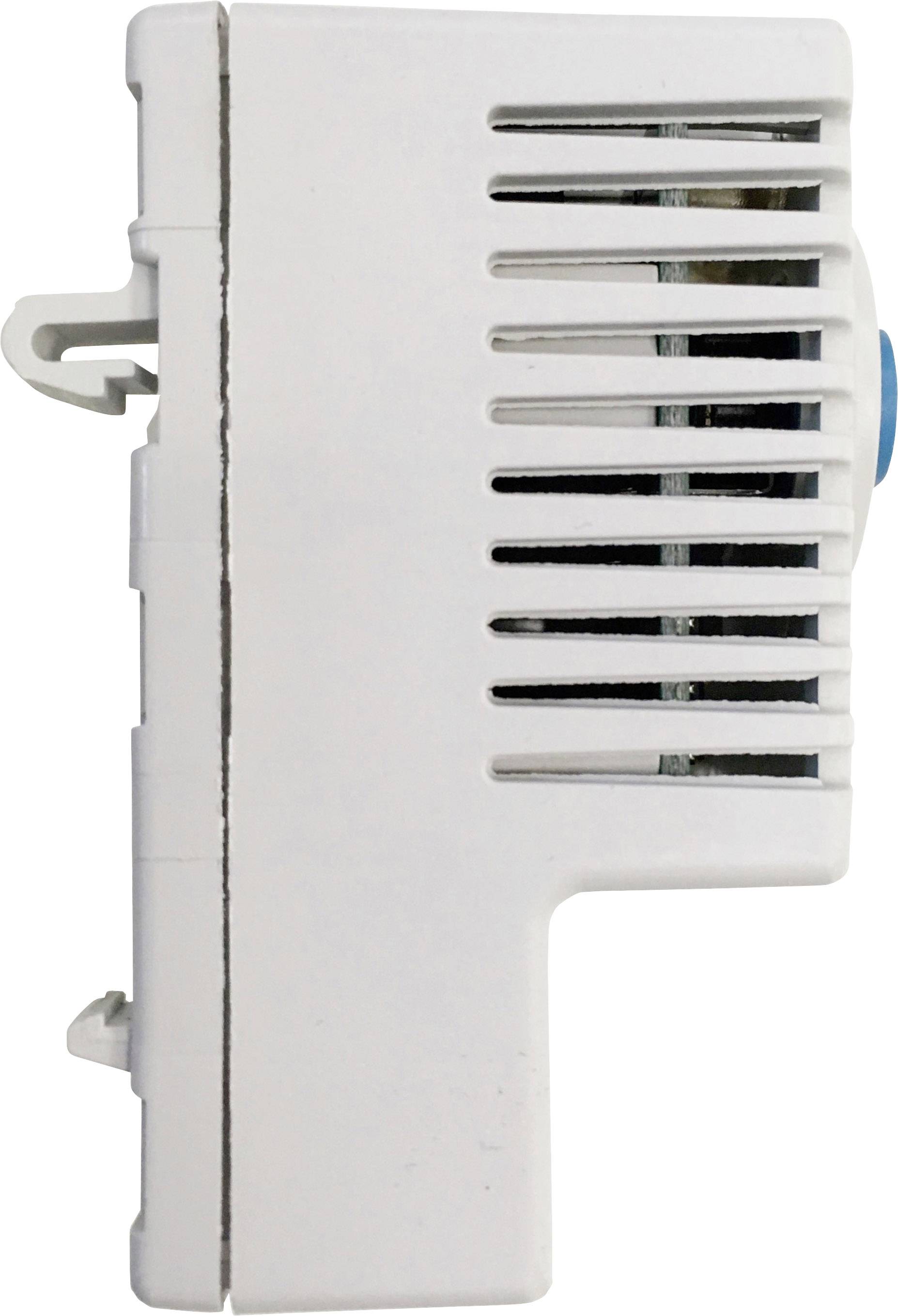

Elmeko Hygrostat 15 ETUH 022 230 V AC 1 change-over (L x W x H) 50 x 53 x 69 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Hygrostat
Operating voltage
230 V AC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
10 A
Datasheet (PDF)
Highlights & Details

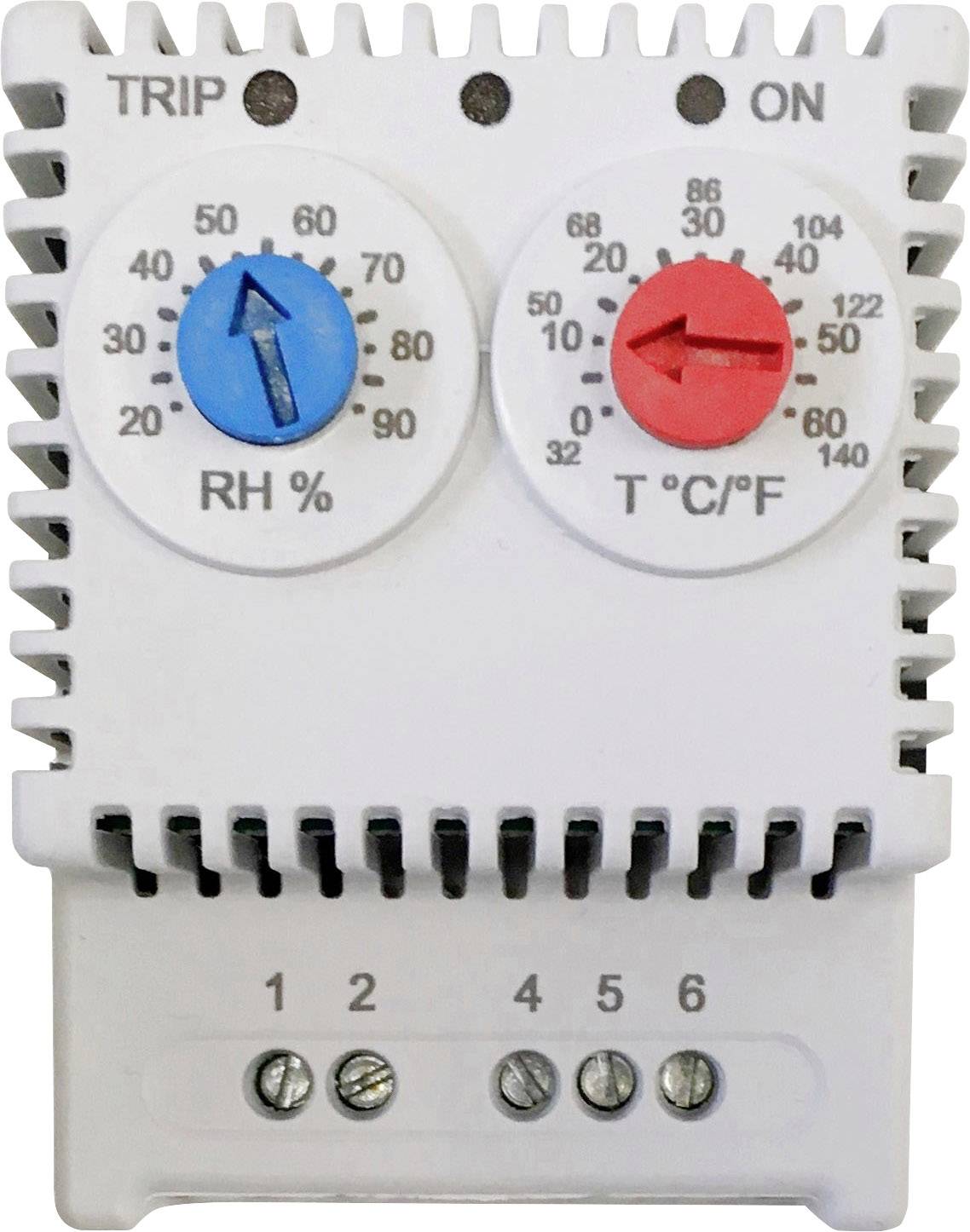

Elmeko Thermo - Hygrostat ETUH 22 - 1 piece
- Electronic thermo-hygrostat for monitoring temperature and humidity in control cabinets.
- A connected heater or fan prevents condensation on electronic components.
- The changeover contact is switched either at high humidity or low temperature.
- Contains 1 pieces
- This text is machine translated.
Technical specifications
- Temperature setting range / hysteresis: 0 °C … +60 °C / 2 K.
- Accuracy ±1 K.
- Humidity Adjustment range / Hysteresis: 20 % RH … 90 % RH / 5 %
- Response time 60 seconds
- Max. Switching current AC: NO/NC: 10 A @250 V AC - Ohm resistive load
- NO: 400 VA @ 240 V AC, 200 VA @120 V AC - MOTOR LOAD
- Sensor type: Integrated electronic sensor for humidity and temperature
- Contact resistance: < 10 MOhm
- Connection: 5polige terminal for 2,5mm² cable
- Mounting: Retaining clip for 35 mm DIN rail (EN50022)
- 100,000 > switching cycle life
- Product type
Hygrostat
- Type
15 ETUH 022
- Operating voltage
230 V AC
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Max. switching capacity
400 VA
IP20
- Length
50 mm
- Width
53 mm
- Height
69 mm
- Dim
(L x W x H) 50 x 53 x 69 mm
- Factory colour
Multicolour
- Connector
Screw terminals
- Material
PA6
- Temperature reading range (max.)
+60 °C
- Temperature reading range (min.)
0 °C
- Response time
60 s
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- UKCA
yes
