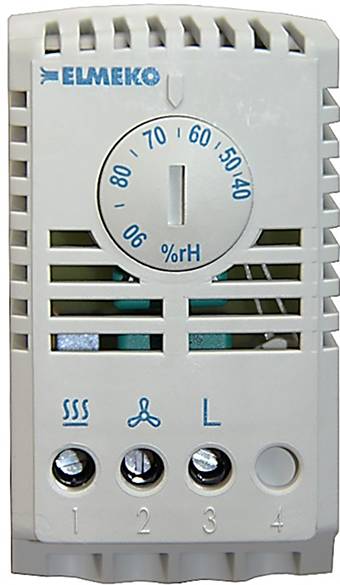

Elmeko Hygrostat HYW 90 1 change-over (L x W x H) 64 x 37 x 46 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Hygrostat
Connection
Screw terminal
Contact type
1 change-over
Type
HYW 90
Mounting type
DIN rail
Datasheet (PDF)
Highlights & Details
- For protecting electronic modules
- Heat, cold and humidity
- For switching fans, heaters or
- Cooling devices or as signal contact
- Connection via screw terminals up to 2.5 mm2
- Mounting on 35 mm mounting rail
- All controllers in the same housing
- This text is machine translated.
Technical specifications
- Sensor type: Polyamide tape
- Product type
Hygrostat
- Type
HYW 90
- Connection
Screw terminal
- Mounting type
DIN rail
- Adjustment range (min.) (moisture)
40
- Adjustment range (max.) (moisture)
90
- Contact type
1 change-over
- Switching current (humidifying) (max.)
2 A
- Switching current (dehumidifying) (max.)
5 A
- Operating temperature (min.)
0 °C
- Operating temperature (max.)
60 °C
- Length
64 mm
- Width
37 mm
- Height
46 mm
- Dim
(L x W x H) 64 x 37 x 46 mm
- UKCA
yes
