1/3
Elmeko ML 150 230 V AC (max) 150 W (L x W x H) 88 x 66 x 97 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure heating
Connection
Pull spring
Max. operating voltage
230 V AC
Type
ML 150
Datasheet (PDF)
Highlights & Details

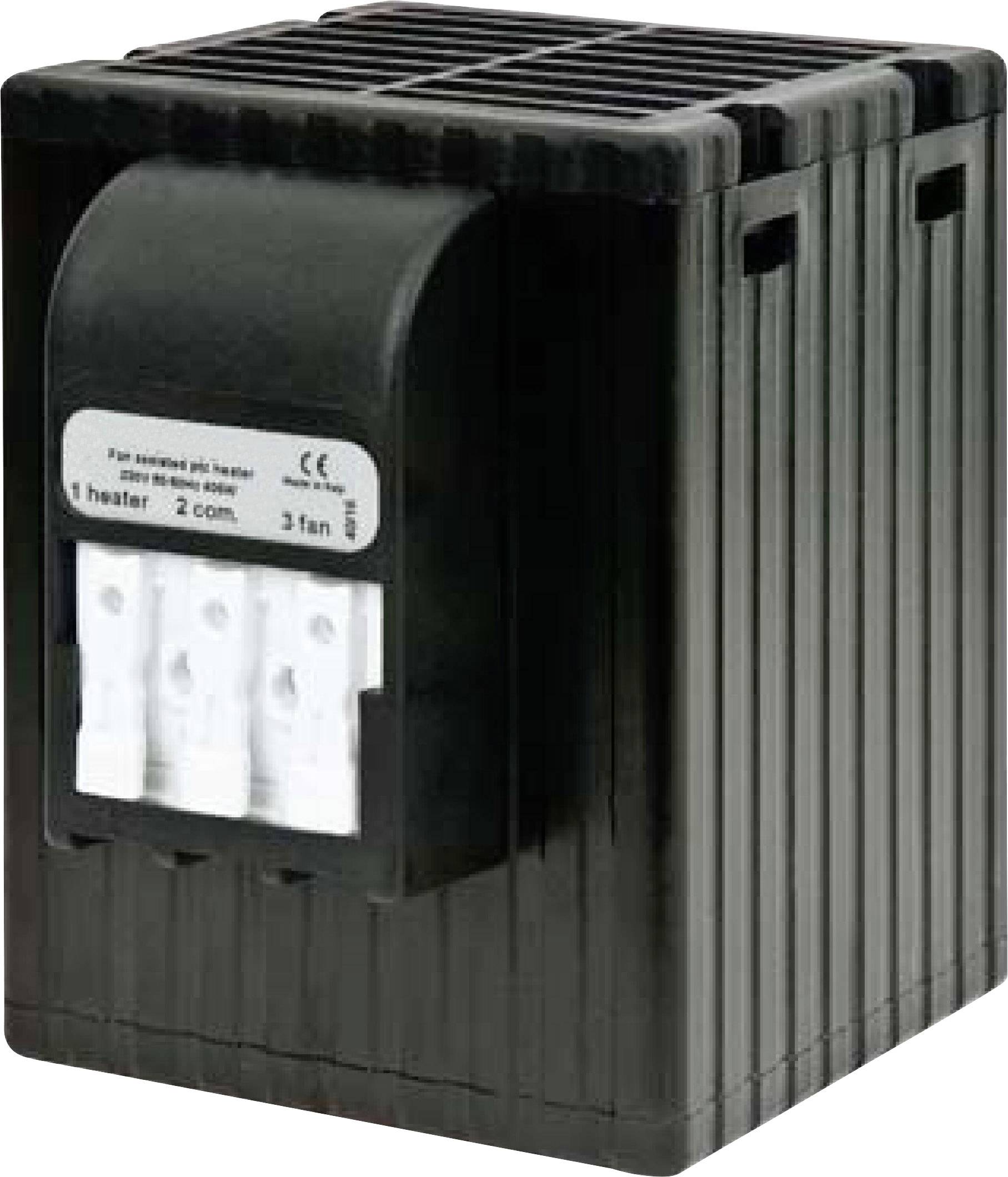

Elmeko switch cabinet heater ML 150 - 1 piece
- Very compact design
- Shirt clip
- Silent operation
- Contains 1 pieces
- This text is machine translated.
Technical specifications
- Heating element: PTC
- current consumption at 230 V
- : 0.73 A
- switch-on current at 230 V
- : 5A
- pre-fuse: 6.3 A

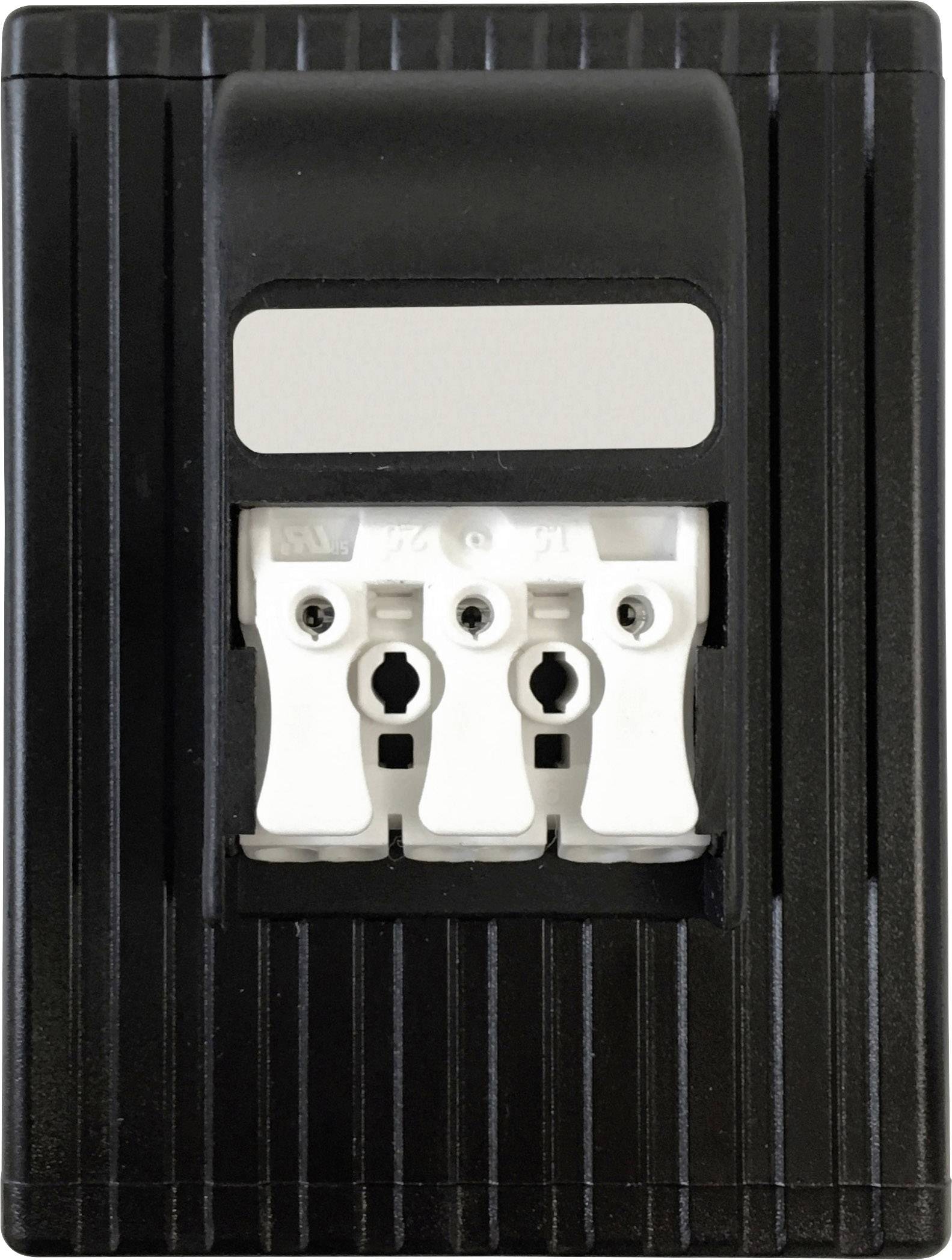

- Connection: 3polige tension spring clamp
- Air flow (free blowing): 30 m³/h
- Mounting position: Maximum efficiency at discharge direction upwards
- Protection class: II
- Sound pressure: 39 dB(A) @ 1m
- Weight: 360 g.
- Packaging type
Piece
- Product type
Enclosure heating
- Type
ML 150
- Features
Fan
- Connection
Pull spring
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC (max)
150 W
IP20

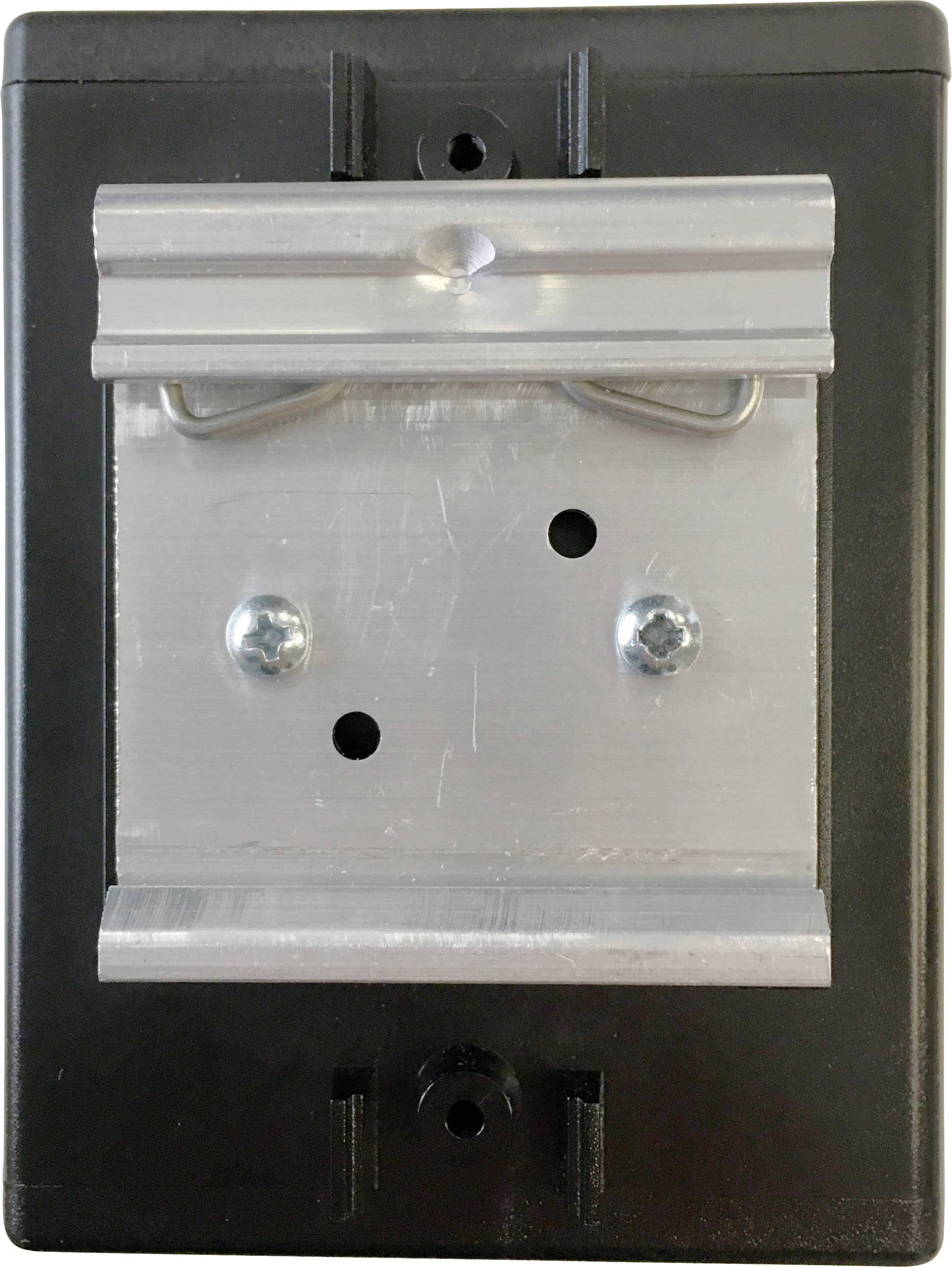

- Mounting type
DIN rail
- Length
88 mm
- Width
66 mm
- Height
97 mm
- Dim
(L x W x H) 88 x 66 x 97 mm
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2307260 Elmeko ML 150 230 V AC (max) 150 W (L x W x H) 88 x 66 x 97 mm Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2307260 Elmeko ML 150 230 V AC (max) 150 W (L x W x H) 88 x 66 x 97 mm Piece 1 pc(s)
