Elmeko PK 300, 24 V DC, 280 W Cooler 24 V DC 360 W (W x H x D) 333 x 330 x 191 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cooler
Operating voltage
24 V DC
Power
360 W
Noise emission (max.)
73 dBa
Width
333 mm
Datasheet (PDF)
Highlights & Details

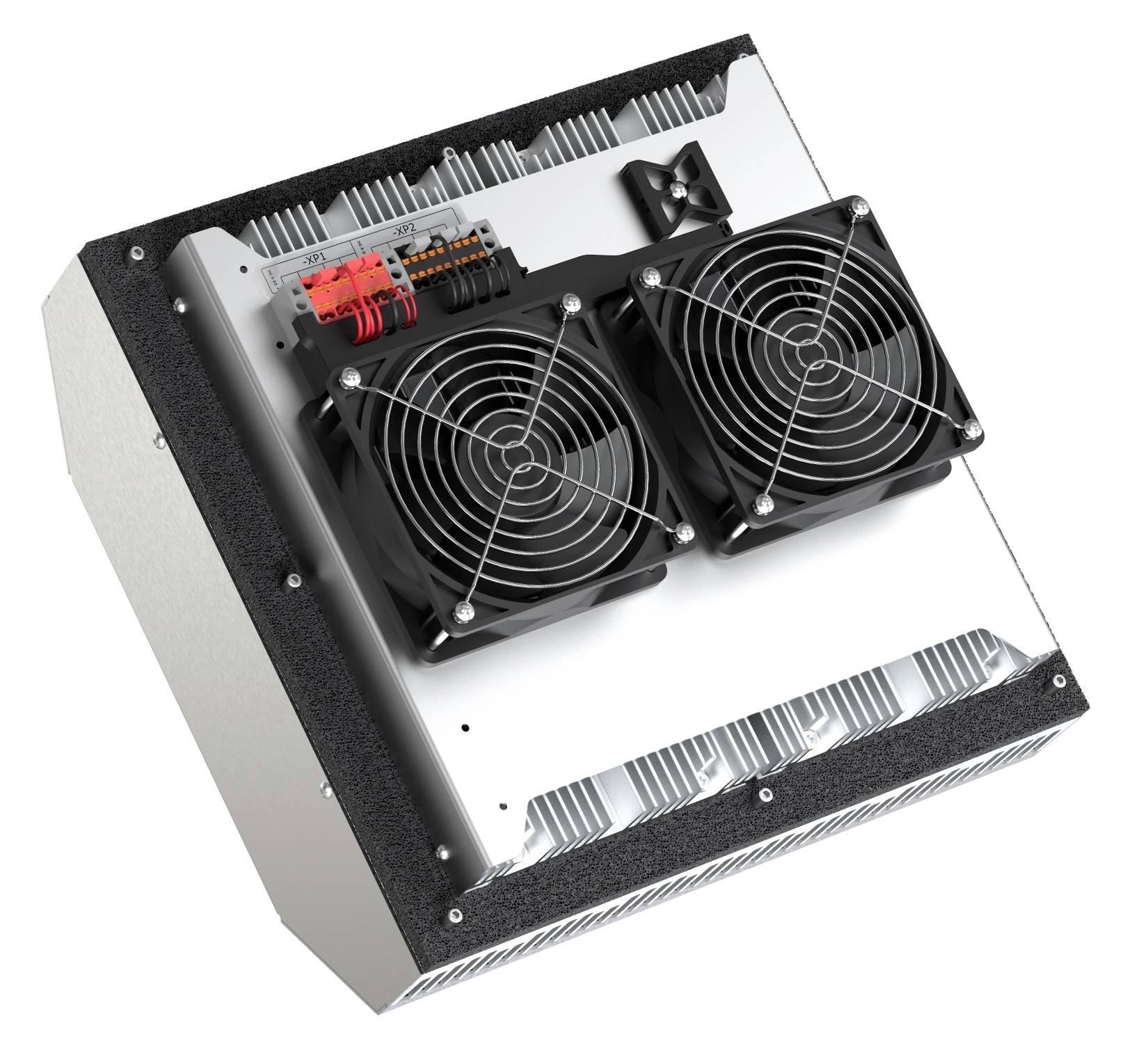

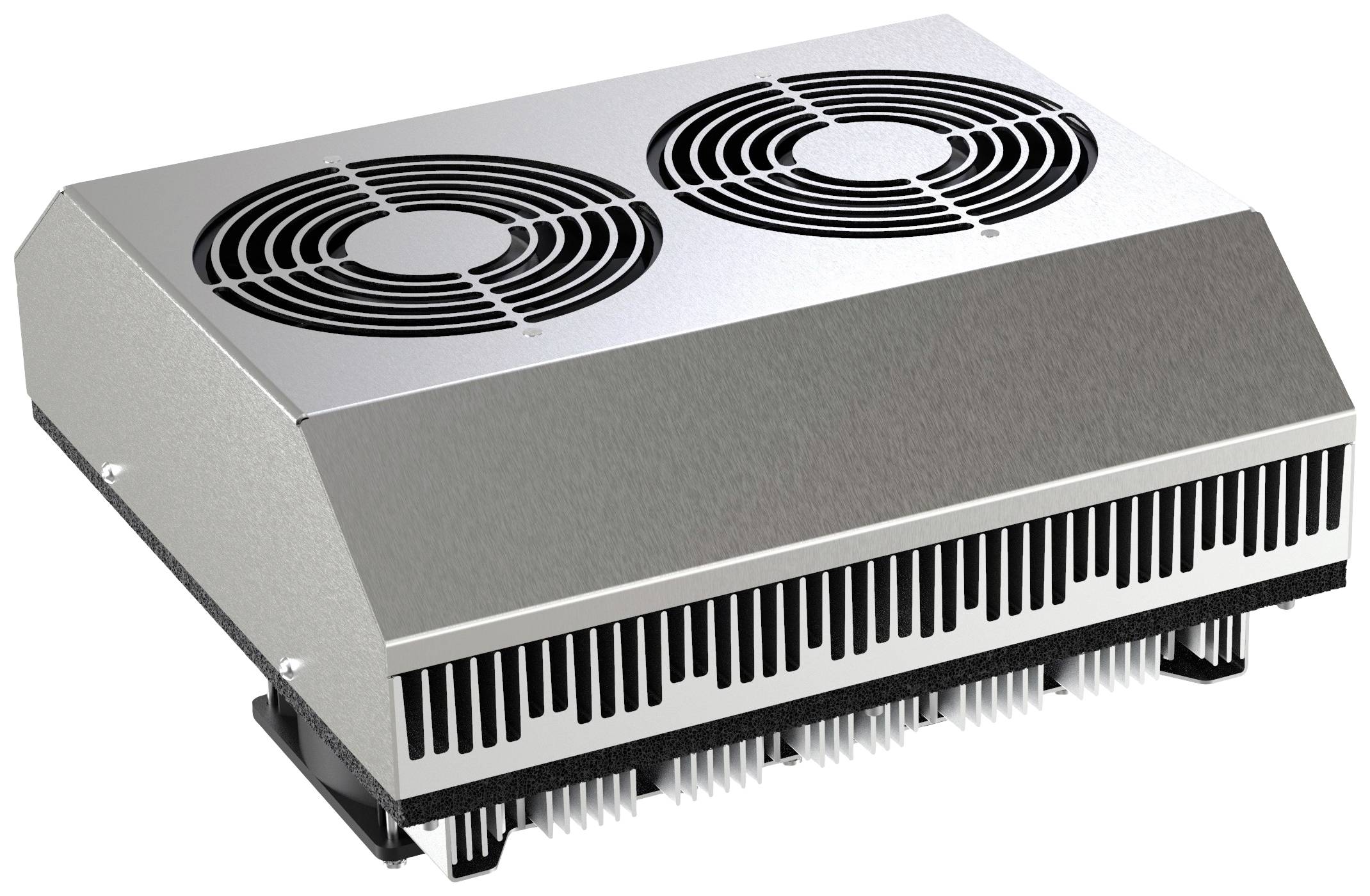

Peltier-cooler PK 300, 24 V DC, 280 W
- Peltier cooling device
- PK 300, 24 V DC, 280 W
- Cooling performance L35L35: 280 W
- Protection class IP67
- Cut-out 292 x 292 mm
- Air volume flow external circuit: 680 m³/h.
- Internal loop air volume flow: 350 m³/h.
- For heating and cooling operation
Technical specifications
- Air volume flow external circuit: 680 m³/h.
- Internal loop air volume flow: 350 m³/h.
- Product type
Cooler
- Type
PK 300, 24 V DC, 280 W
- Operating voltage
24 V DC
- Min. operating voltage
18 V DC
- Max. operating voltage
28 V DC
- Operating voltage
18 - 28 V DC
- Max. current consumption
15 A
360 W
- Noise emission (max.)
73 dBa
- Air flow rate
680 m³/h
60000 h
- Min. temperature
-20 °C
- Max. temperature
70 °C
IP66/IP67
- Connection
Push-in connector
- Width
333 mm
- Height
330 mm
- Depth
191 mm
- Dim
(W x H x D) 333 x 330 x 191 mm
- Weight
15.8 kg
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2603770 Elmeko PK 300, 24 V DC, 280 W Cooler 24 V DC 360 W (W x H x D) 333 x 330 x 191 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2603770 Elmeko PK 300, 24 V DC, 280 W Cooler 24 V DC 360 W (W x H x D) 333 x 330 x 191 mm 1 pc(s)
Description
Peltier-cooler PK 300, 24 V DC, 280 W
