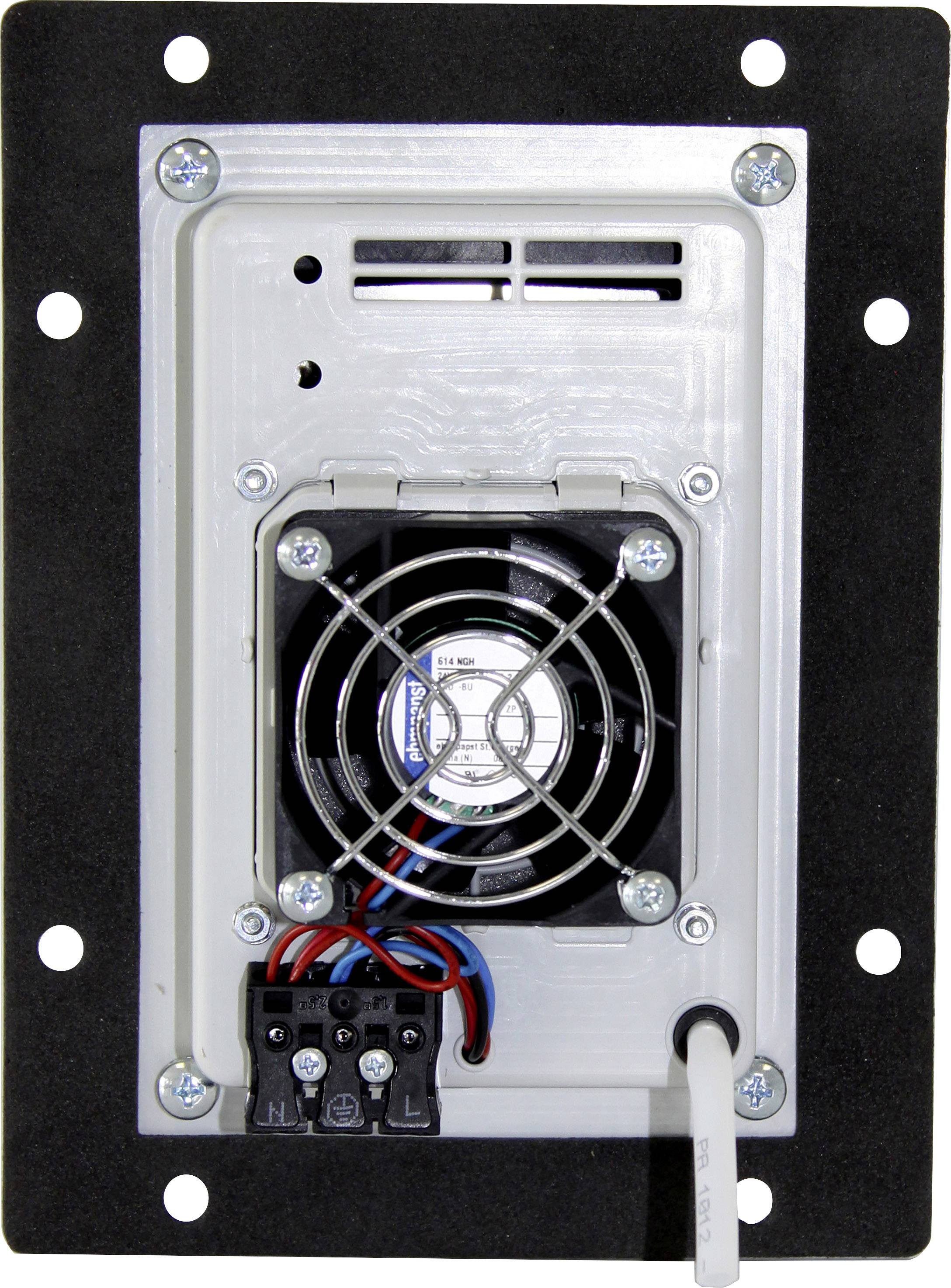

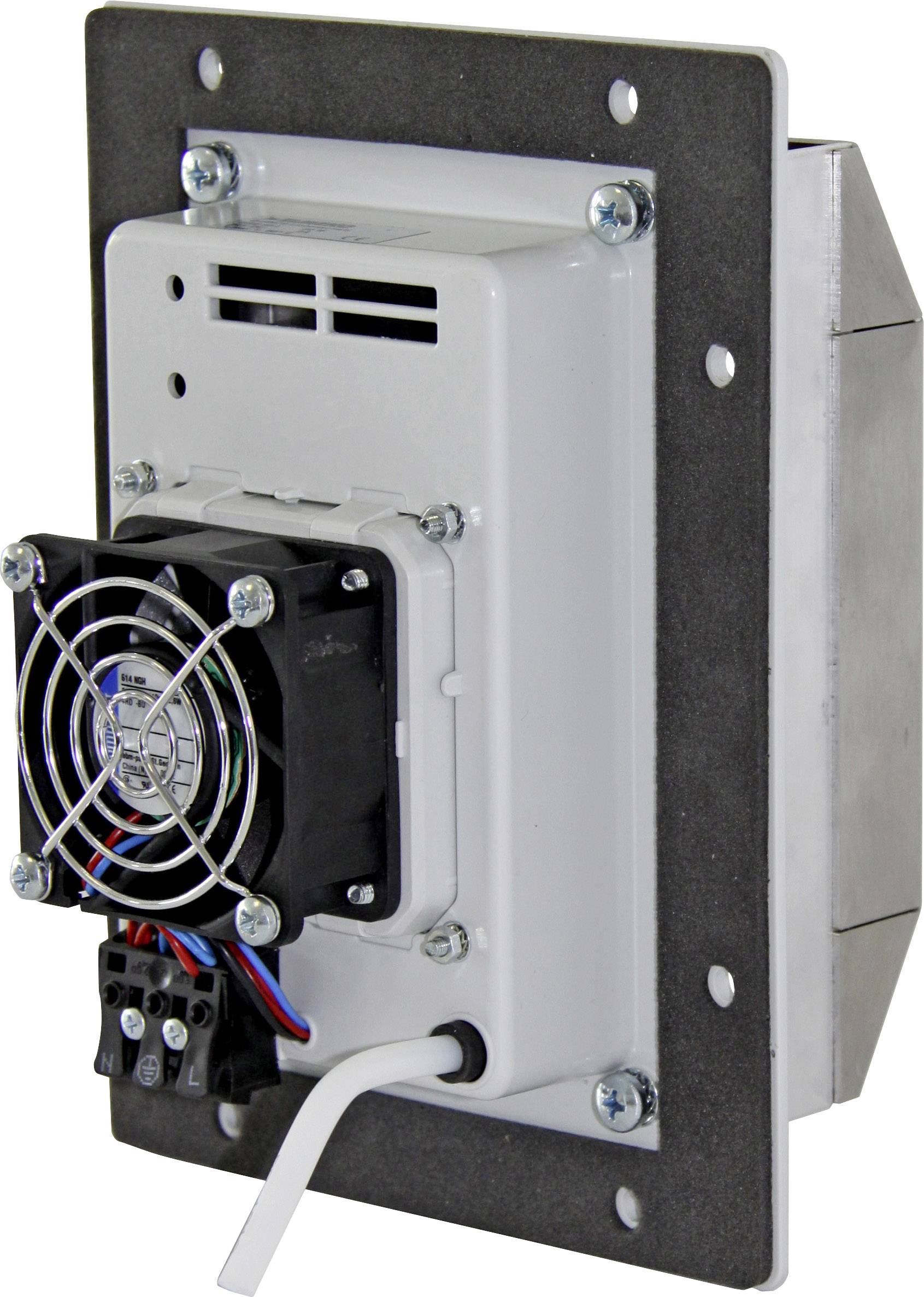

Elmeko PSE 30 L Dehumidifier 24 V DC 30 W (W x H x D) 150 x 200 x 148 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dehumidifier
Operating voltage
24 V DC
Power
30 W
Noise emission (max.)
64 dBa
Datasheet (PDF)
Highlights & Details
- Three different designs for various applications
- Significant savings over traditional
- Heating method
- Connection via tension spring terminals at 24 V DC
- Partial installation in the side wall or complete installation
- Possible inside in the control cabinet
- This text is machine translated.
Technical specifications
- Rated output: 50 W
- Starting current 3.6 A.
- Air volume flow 20 m³/h.
- Fuse 4 A (T)
- Operating temperature: 0 °C to +60 °C
- Mounting cut-out: 180 mm x 130 mm x 100 mm
- Packaging type
Piece
- Product type
Dehumidifier
- Type
PSE 30 L
- Operating voltage
24 V DC
- Min. operating voltage
18 V DC
- Max. operating voltage
26 V DC
- Operating voltage
18 - 26 V DC
- Max. current consumption
2.3 A
30 W
- Noise emission (max.)
64 dBa
- Air flow rate
20 m³/h
60000 h
- Min. temperature
0 °C
- Max. temperature
+60 °C
IP55
- Connection
Screw terminal
- Width
150 mm
- Height
200 mm
- Depth
148 mm
- Dim
(W x H x D) 150 x 200 x 148 mm
- Weight
1400 g
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2267289 Elmeko PSE 30 L Dehumidifier 24 V DC 30 W (W x H x D) 150 x 200 x 148 mm Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2267289 Elmeko PSE 30 L Dehumidifier 24 V DC 30 W (W x H x D) 150 x 200 x 148 mm Piece 1 pc(s)
