Elmeko THRV 22 1 breaker, 1 maker (L x W x H) 35 x 53 x 61 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Thermostat
Connection
Screw terminal
Contact type
1 breaker
1 maker
Switching voltage (max.)
250 V AC
Switching current (max.)
15 A
Datasheet (PDF)
Highlights & Details

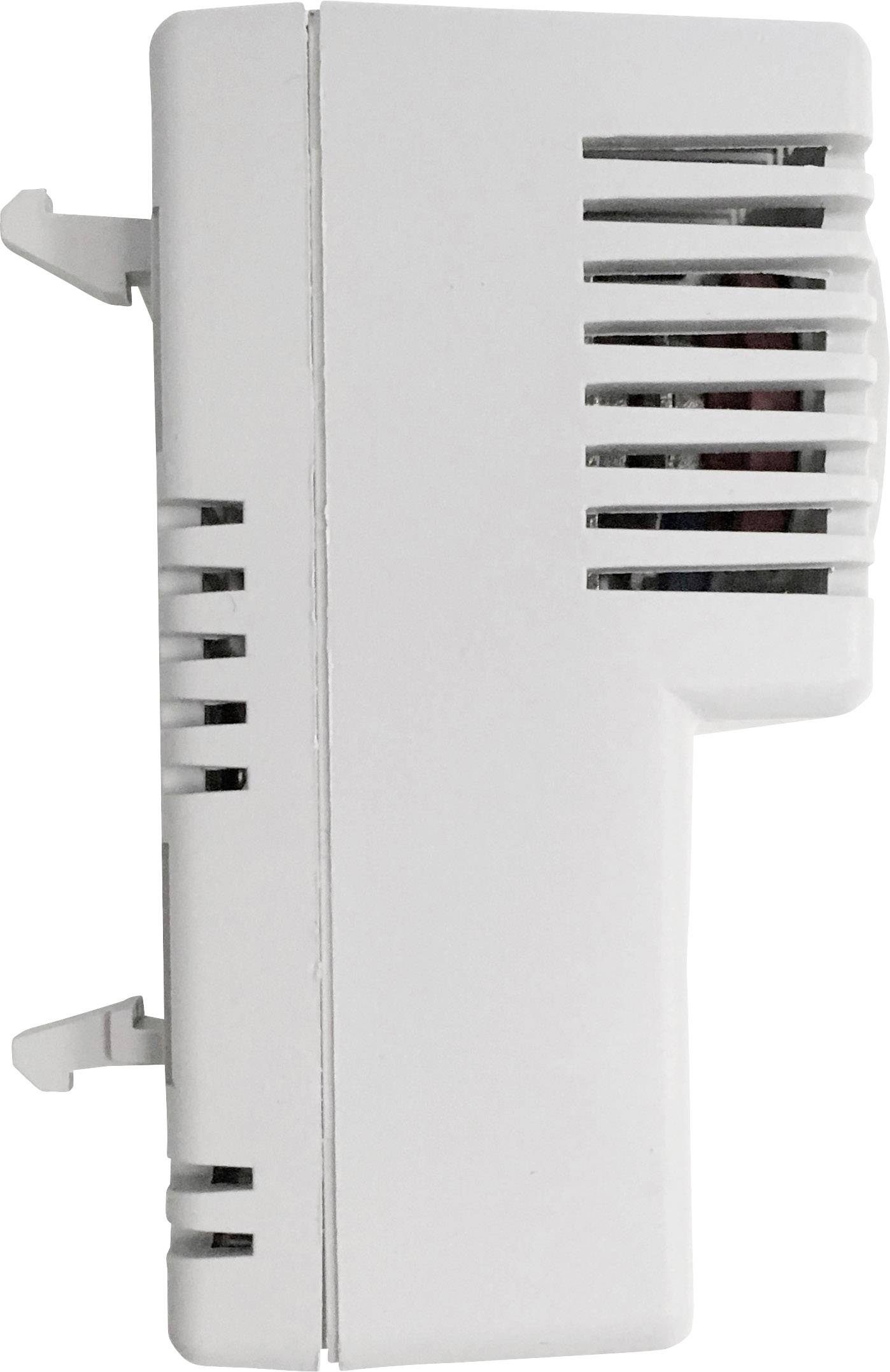

Elmeko thermostat THRV 22 - 1 piece

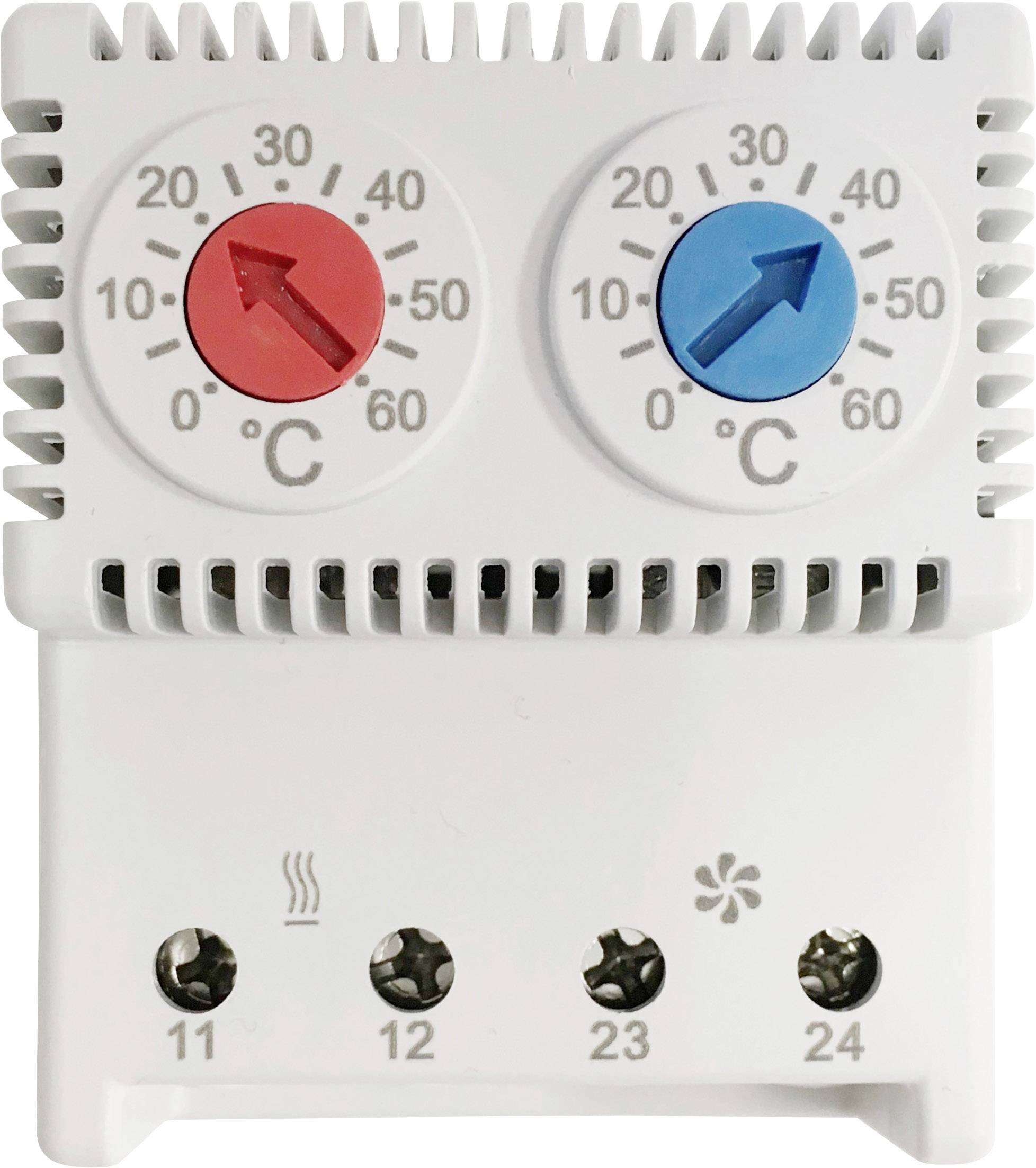

- Double thermostat for controlling fans and heaters. Two independant switching thermostats with high switching capacity in a compact housing.
- 1x NC contact opens as temperature increases
- 1x normally open contact closes when the temperature increases
- Contains 1 pieces
- This text is machine translated.
Technical specifications
- Hysteresis 7 K
- Contact resistance: < 10 MOhm
- Connection: 4polige terminal for 2,5mm² cable
- Housing: PA6, UL94 V0 self-extinguishing, light gray RAL 7035
- 100,000 > switching cycle life
- Weight 80 g
- Product type
Thermostat
- Type
THRV 22
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
0 °C
- Temperature adjustment range (max.)
+60 °C
- Factory colour
White
- Sensor type
Bi-metallic
- Mounting type
DIN rail
- Contact type
1 breaker
1 maker
- Switching voltage (max.)
250 V AC
- Switching current (max.)
15 A
- Max. switching capacity
30 W
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
+80 °C
- Length
35 mm
- Width
53 mm
- Height
61 mm
- Dim
(L x W x H) 35 x 53 x 61 mm
IP20
- UKCA
yes
