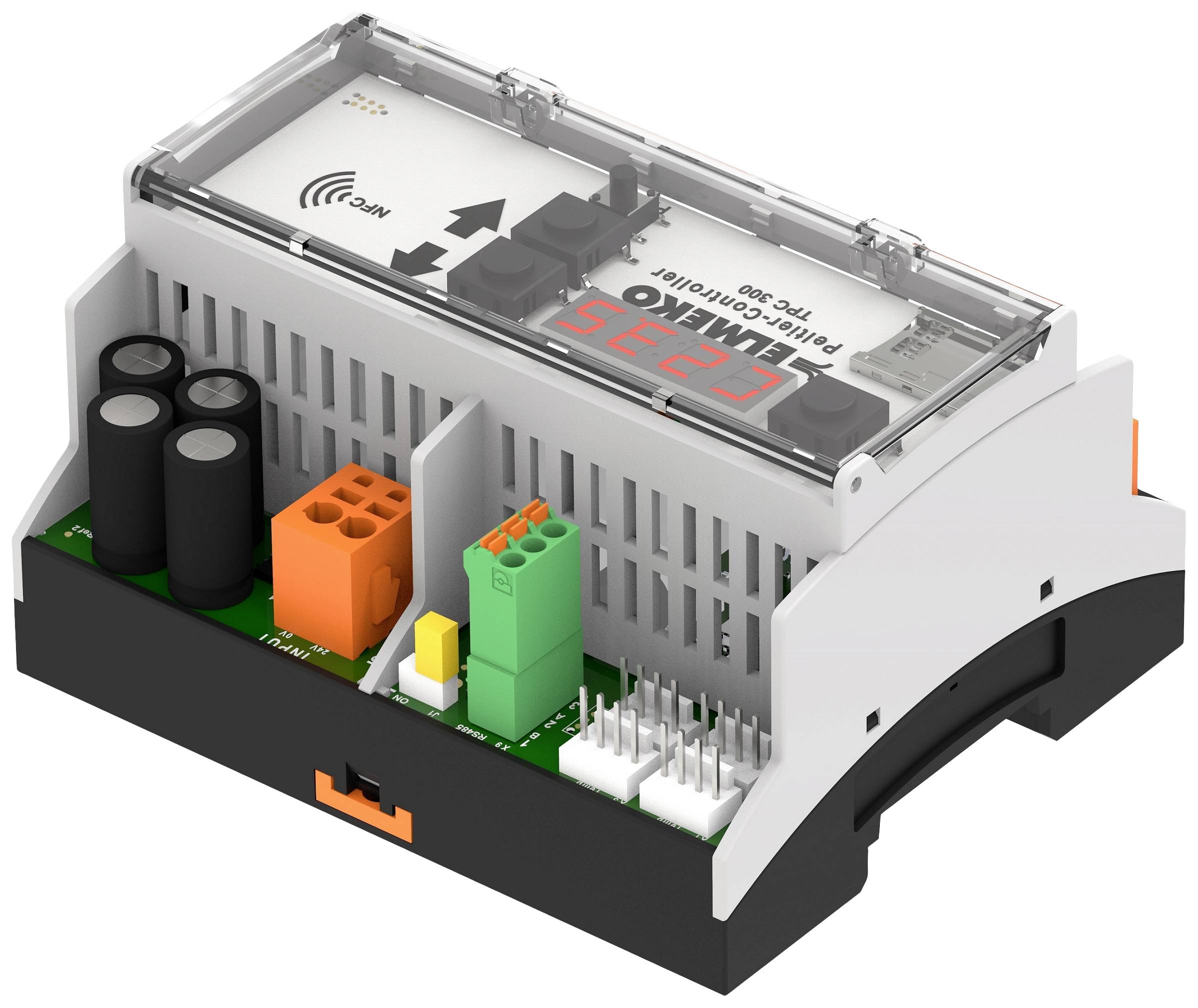

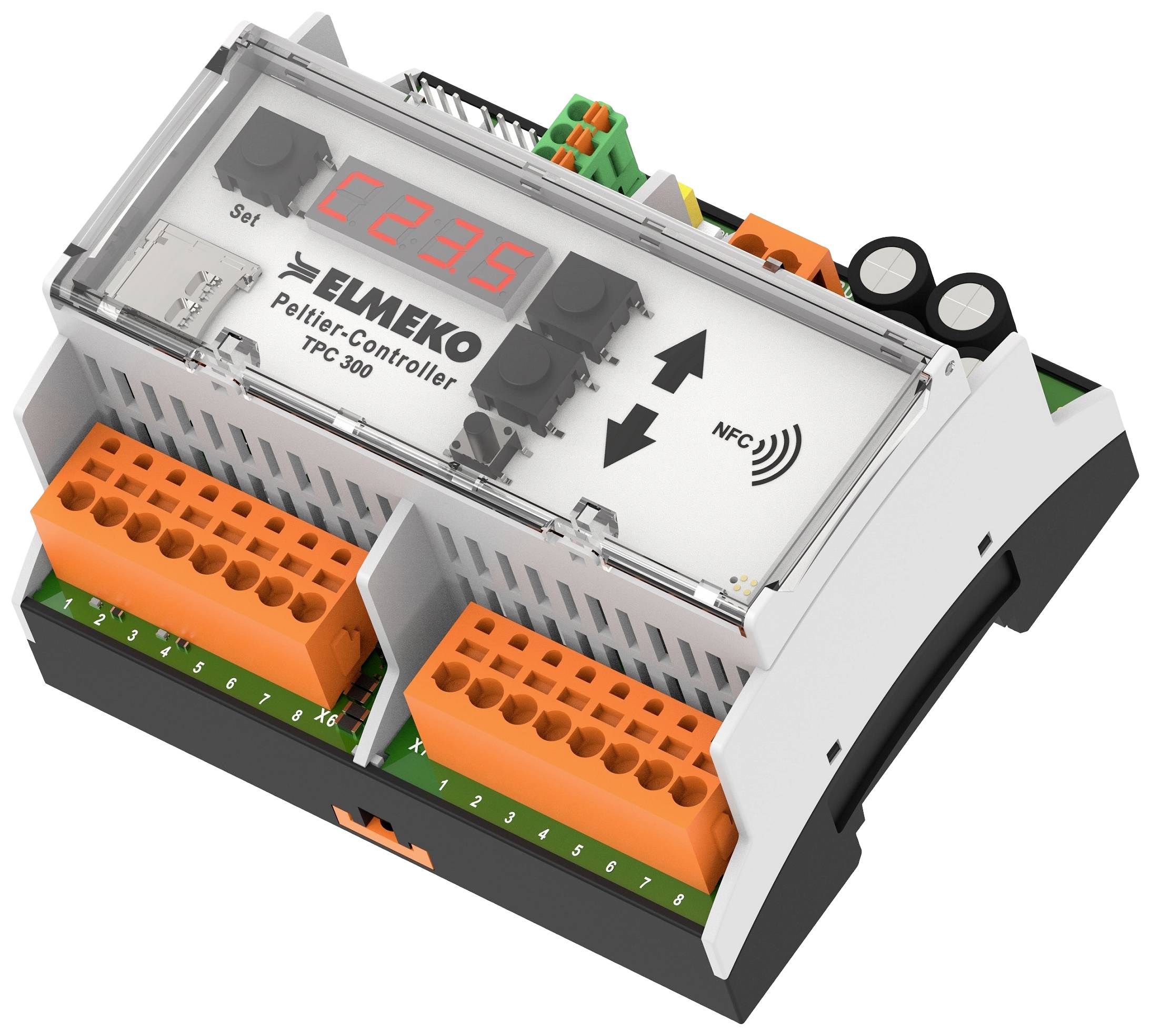

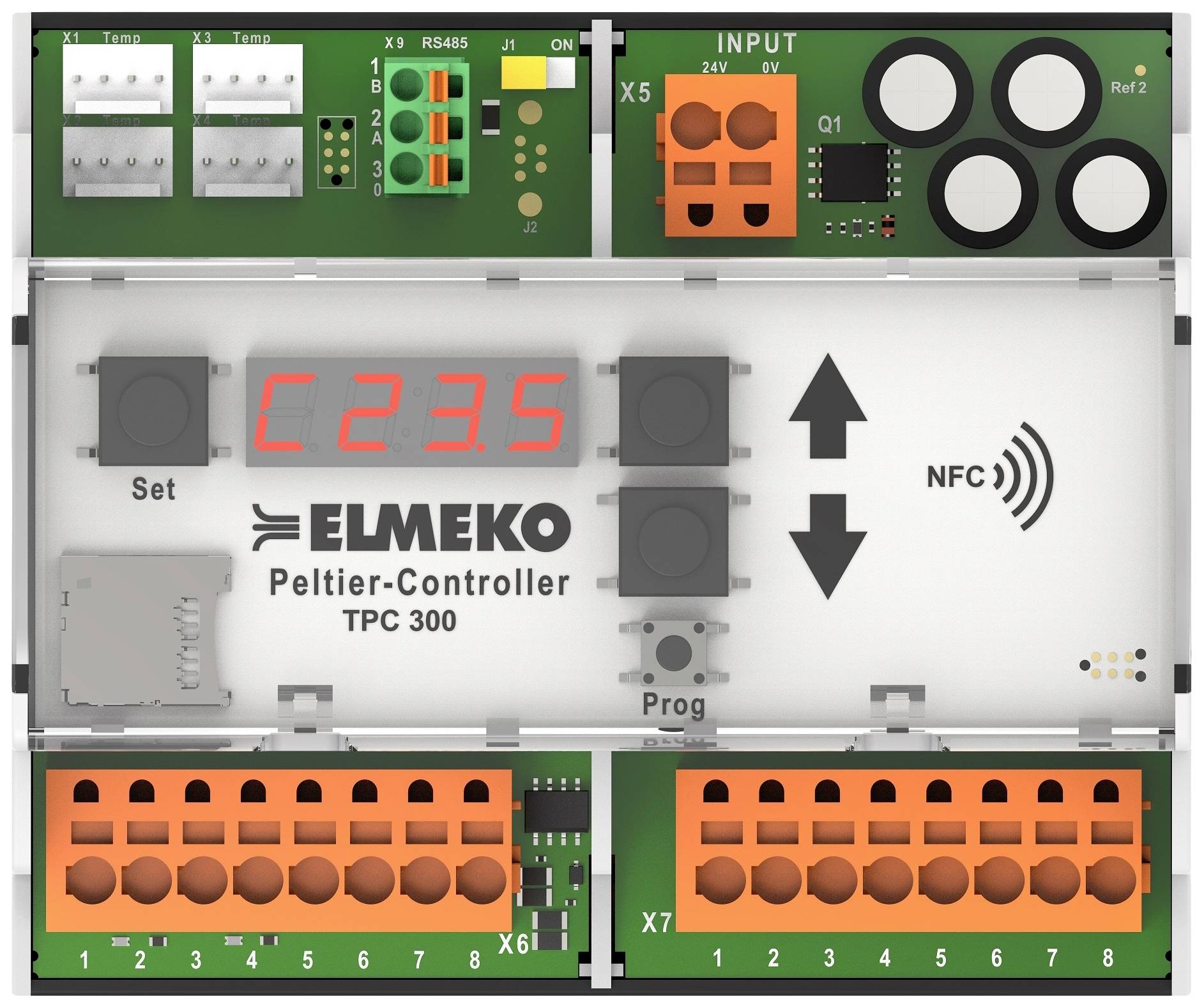

Elmeko TPC 300, 24 V DC, 20 A Controller 24 V DC (W x H x D) 108 x 90 x 61 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Controller
Operating voltage
24 V DC
Width
108 mm
Height
90 mm
Datasheet (PDF)
Highlights & Details
Peltier-controller TPC 300, 24 V DC, 20 a
- Peltier-Controller
- TPC 300, 24 V DC, 20 A
- Max. Switching capacity DC 20 A
- Hysteresis: 0.5 … 20 °C / 5 … 20 % r.h.
- RS 485 interface, NFC interface
- PWM control of Peltier elements is possible
- Includes humidity/temperature sensor with 1.5 m cable
- Incl. USB / RS485 converter 2 m cable
Technical specifications
- Switching current Peltier elements 20 A
- Communication interface: RS485
- Mounting bracket for 35 mm mounting rail
- Protection class III
- Packaging type
Piece
- Product type
Controller
- Type
TPC 300, 24 V DC, 20 A
- Features
incl. software
- Operating voltage
24 V DC
- Min. operating voltage
20 V DC
- Max. operating voltage
30 V DC
- Operating voltage
20 - 30 V DC
- Max. current consumption
20 A
60000 h
- Min. temperature
-20 °C
- Max. temperature
70 °C
IP20
- Connection
USB
- Cable length
1.5 m
- Width
108 mm
- Height
90 mm
- Depth
61 mm
- Dim
(W x H x D) 108 x 90 x 61 mm
- Weight
200 g
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2603773 Elmeko TPC 300, 24 V DC, 20 A Controller 24 V DC (W x H x D) 108 x 90 x 61 mm Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2603773 Elmeko TPC 300, 24 V DC, 20 A Controller 24 V DC (W x H x D) 108 x 90 x 61 mm Piece 1 pc(s)
Description
The TPC 300 is a multifunctional controller for controlling and monitoring Peltier coolers and dehumidifiers. Along with 4 different control programs there are extensive monitoring options as well
A serial interface that allows easy configuration, communication and visualization using the free of charge
Software provided for download. The temperature and humidity are regulated in the
Switchboard cabinet The function of the fans, the Peltier elements, a door contact and the system voltage are monitored.
This text is machine translated.
A serial interface that allows easy configuration, communication and visualization using the free of charge
Software provided for download. The temperature and humidity are regulated in the
Switchboard cabinet The function of the fans, the Peltier elements, a door contact and the system voltage are monitored.
